Detailed Specifications

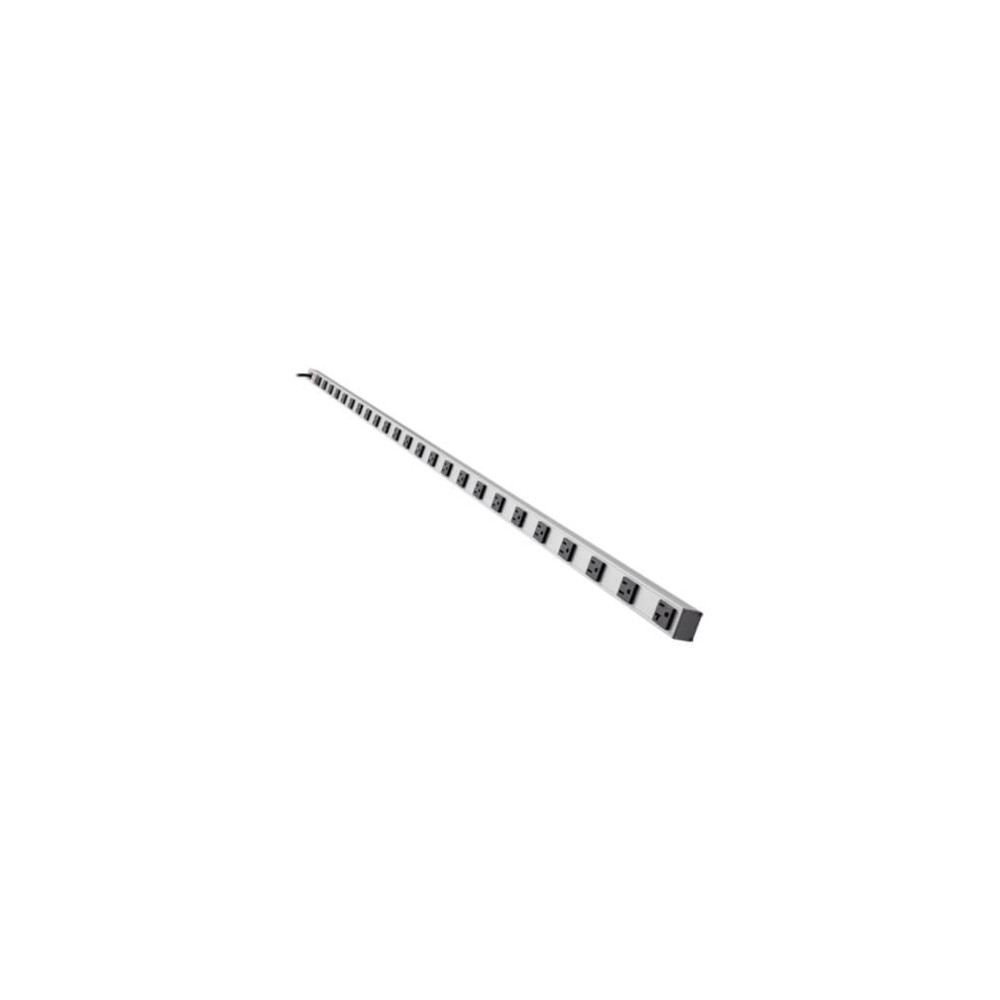

Eaton PS7224-20T Vertical Rack Power Strip PDU Distribution Unit
Overview
The Eaton PS7224-20T is a 120V, 20A rack-mount vertical power distribution unit designed for IT racks, telecom enclosures, and industrial equipment deployments requiring high outlet density in a single PDU form factor.
It provides 24 total outlets (22 × NEMA 5-15R + 2 × NEMA 5-20R) supported by a 20A circuit and a NEMA L5-20P locking input for secure power delivery in critical environments.
This unit is commonly deployed in data center racks, network closets, laboratory benches, and industrial control cabinets where dense, organized AC distribution is required without active power conversion.
It supports both vertical and horizontal mounting using included hardware and is built with an extruded aluminum housing for mechanical durability in continuous-use environments.
Not suitable for UPS-level power conditioning, voltage regulation, or 208V/230V infrastructure.
Key Features
- 24-outlet high-density PDU for rack and cabinet distribution
- 20A / 120V locking L5-20P input for secure power feed
- Mixed outlet configuration supports IT and industrial loads
- Extruded aluminum housing for rugged rack environments
- Flexible vertical or horizontal mounting with included kit
Specifications
| Parameter | Value |
|---|
| Brand | Eaton (Tripp Lite series) |
| Part Number | PS7224-20T |
| Product Type | Vertical Rack Power Strip / PDU |
| Input Voltage | 120 VAC |
| Input Current | 20 A |
| Input Frequency | 50 / 60 Hz |
| Input Plug | NEMA L5-20P (locking) |
| Total Outlets | 24 |
| Outlet Types | 22 × NEMA 5-15R, 2 × NEMA 5-20R |
| Output Voltage | 120 VAC |
| Cord Length | 15 ft (4.57 m) |
| Cord Gauge | 12 AWG |
| Circuit Protection | 20A circuit breaker |
| Switch | Illuminated master switch with cover |
| Mounting Style | Rack / vertical or horizontal |
| Housing Material | Extruded aluminum |
| Form Factor | 72 in (1828 mm) strip |
| Certifications | UL 1363, cUL, RoHS |
| Warranty | Limited lifetime |
