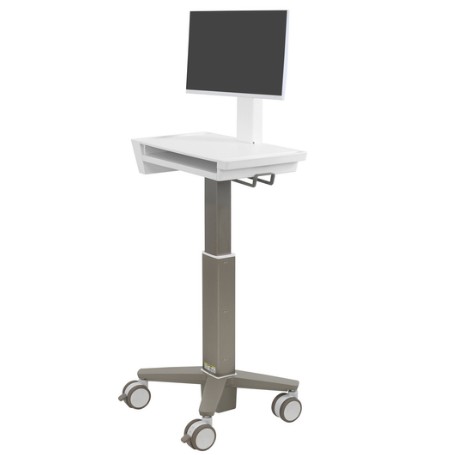

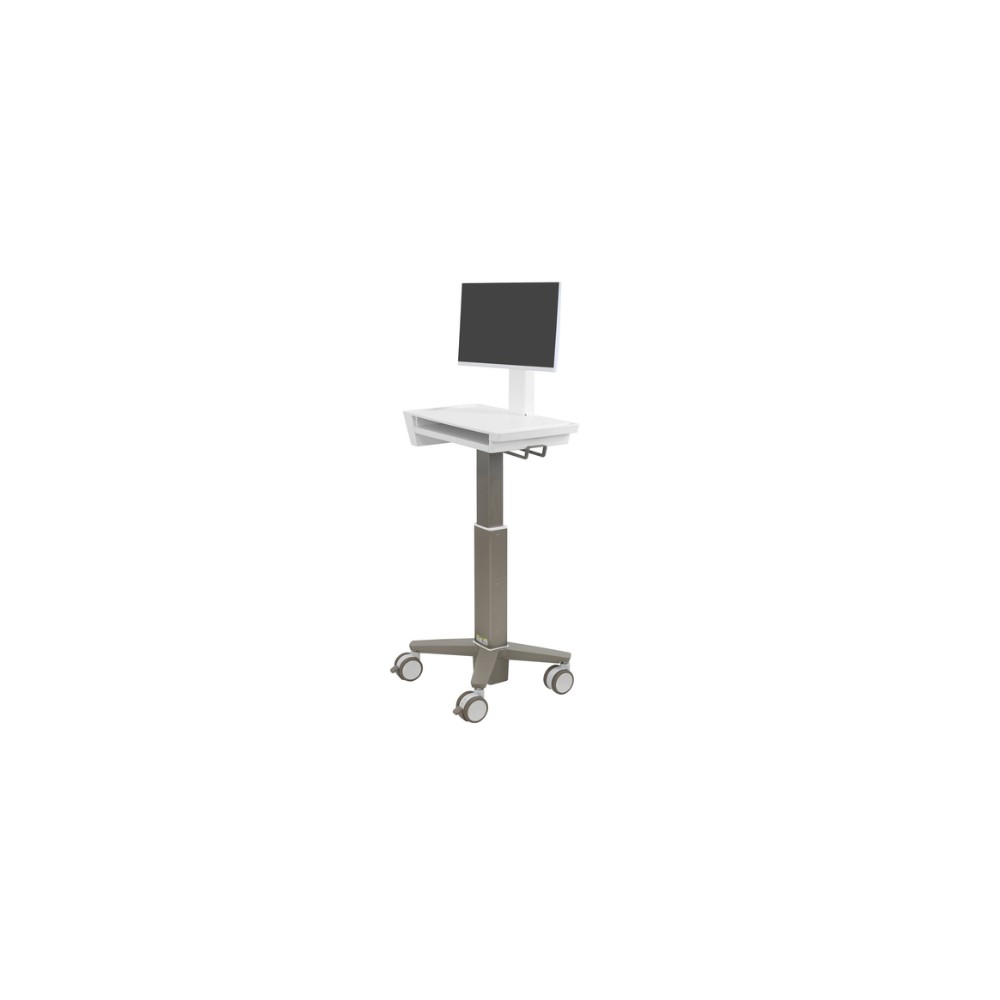

Ergotron C50-3500-0 – CareFit Slim 2.0 LCD Medical Cart, No Drawer
Overview
The Ergotron C50-3500-0 CareFit Slim 2.0 LCD Medical Cart is a compact, light-duty mobile workstation designed for lean healthcare IT configurations. The no-drawer model provides a large 20.7 × 14.3-inch worksurface, pull-out keyboard and mouse trays, adjustable display mounting, and an accessory shelf for peripherals such as a printer or scanner. The cart is finished in white and warm grey.
Technical Information
The C50-3500-0 provides 17.5 inches (44.5 cm) of lift with a worksurface height-adjustment range of 29.25–46.75 inches (74–119 cm). It is designed for lean IT configurations including a micro PC with LCD or an all-in-one computer in the 21–27-inch class weighing up to 20 lb (9.1 kg). The worksurface measures 20.7 × 14.3 inches (52.5 × 36.3 cm).
Compatibility
The display mounting interface supports VESA 75 × 75 mm and 100 × 100 mm patterns. The cart is intended for a single display or compatible all-in-one computer within the specified weight and size limits. Its T-slot architecture allows compatible Ergotron accessories to be added for specific workflow requirements.
Key Features
- CareFit Slim 2.0 mobile LCD medical cart with no drawer
- 17.5-inch (44.5 cm) lift and 29.25–46.75-inch height-adjustment range
- 20.7 × 14.3-inch (52.5 × 36.3 cm) worksurface
- Supports VESA 75 × 75 mm and 100 × 100 mm display mounting patterns
- T-slot accessory mounting system for configurable mobile workflows
Applications
The C50-3500-0 is suited to healthcare environments requiring a compact mobile computer workstation for patient-care and clinical workflows. Its slim footprint, adjustable height and integrated worksurface support deployments using micro PCs, LCD displays or compatible all-in-one computers.
DC Supplies Product Note
The C50-3500-0 is specifically the no-drawer CareFit Slim 2.0 configuration. Do not substitute specifications from the visually similar C50-3510-0, which is the with-drawer model. Verify display or AIO weight, mounting pattern and physical dimensions before deployment.
Specifications
| Brand | Ergotron |
|---|
| Manufacturer Part Number | C50-3500-0 |
|---|
| Product | CareFit Slim 2.0 LCD Medical Cart |
|---|
| Configuration | No Drawer |
|---|
| Color | White / Warm Grey |
|---|
| Typical Display Configuration | Micro PC + LCD or 21–27" AIO |
|---|
| Maximum Display/AIO Weight | 20 lb (9.1 kg) |
|---|
| VESA Mounting | 75 × 75 mm and 100 × 100 mm |
|---|
| Lift | 17.5" (44.5 cm) |
|---|
| Height Adjustment Range | 29.25–46.75" (74–119 cm) |
|---|
| Worksurface Dimensions | 20.7 × 14.3" (52.5 × 36.3 cm) |
|---|
| Base Footprint | 18 × 16.7" (46 × 42 cm) |
|---|
| Cart Weight | 67.5 lb (29.6 kg) |
|---|
| Shipping Dimensions | 30.6 × 25 × 44.3" (77.8 × 63.5 × 112.7 cm) |
|---|
| Shipping Weight | 103.4 lb (47 kg) |
|---|
| Warranty | 5 years |
|---|
FAQs
What is the Ergotron C50-3500-0?
It is the no-drawer version of the Ergotron CareFit Slim 2.0 LCD Medical Cart, designed for compact mobile healthcare computing deployments.
What type of computer does it support?
Ergotron specifies the cart for lean IT configurations including a micro PC with LCD or a 21–27-inch all-in-one computer weighing up to 20 lb (9.1 kg).
What is the height adjustment range?
The worksurface height adjusts from 29.25 to 46.75 inches (74–119 cm), with 17.5 inches (44.5 cm) of lift.
What VESA patterns are supported?
The display mount supports 75 × 75 mm and 100 × 100 mm VESA mounting patterns.
What are the worksurface dimensions?
The worksurface measures 20.7 × 14.3 inches (52.5 × 36.3 cm).
Does the C50-3500-0 have a drawer?
No. C50-3500-0 is the no-drawer configuration. The related C50-3510-0 is the with-drawer configuration; its specifications should not be substituted for this exact MPN.
Does it include an integrated power system?
The manufacturer documentation states that a hot-swap power system can be added; it is not identified as an integrated standard feature of the C50-3500-0 configuration.
