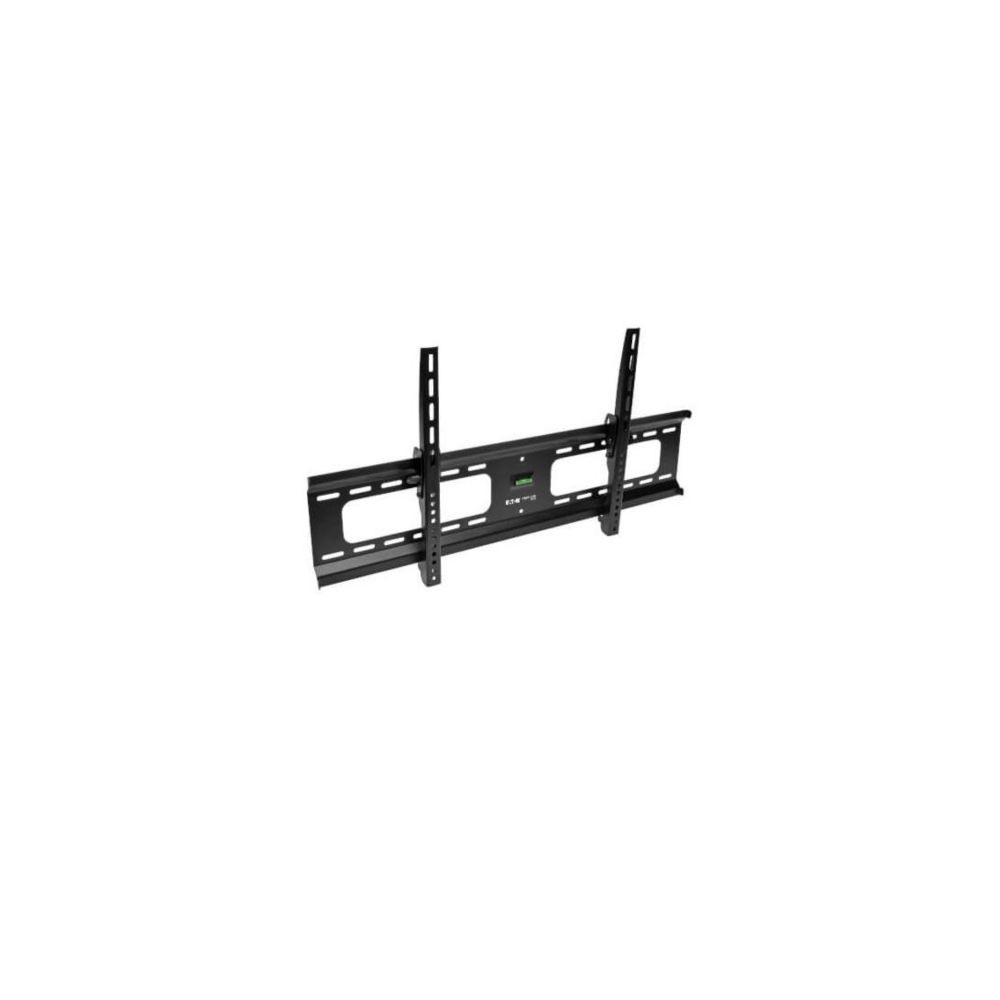

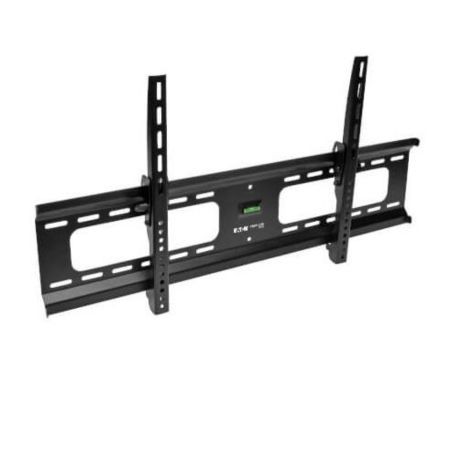

Eaton DWT3780XUL Heavy-Duty Tilt TV Wall Mount 37 to 80 Inch

Overview :

The Eaton Tripp Lite Series DWT3780XUL is a heavy-duty tilt TV wall mount engineered to secure flat-panel displays, commercial digital signage, and interactive monitors across conference rooms, educational facilities, digital menu boards, and control room environments. UL listed to support displays ranging from 37 inches to 80 inches, it ensures maximum structural integrity and safety for high-traffic installations.

Featuring a heavy-duty steel frame rated for up to 165 pounds, the DWT3780XUL offers toolless -10° to +10° tilt adjustment to optimize viewing angles and minimize glare from overhead lighting. Its low-profile design holds the display just 1.8 inches from the wall, while built-in bubble level indicators and open-frame architecture simplify cable routing and electrical box access.

Deployable on solid concrete, brick, or standard wood stud walls (16-inch or 24-inch spacing). Compatible with VESA mounting patterns from 200 x 200 mm up to 800 x 400 mm. Do NOT mount on unreinforced drywall or hollow block walls without certified structural anchors, and do NOT exceed the 165 lb maximum weight capacity.

Key Features :

• UL 2442 listed for safe support of displays from 37 in. to 80 in.

• Heavy-duty steel construction supports maximum display weights up to 165 lbs.

• Toolless tilt adjustment (-10° to +10°) optimizes viewing angles and eliminates glare.

• Slim 1.8-inch profile creates a sleek, space-saving architectural presentation.

• Open-frame wall plate design allows unobstructed access to in-wall electrical boxes.
