Detailed Specifications

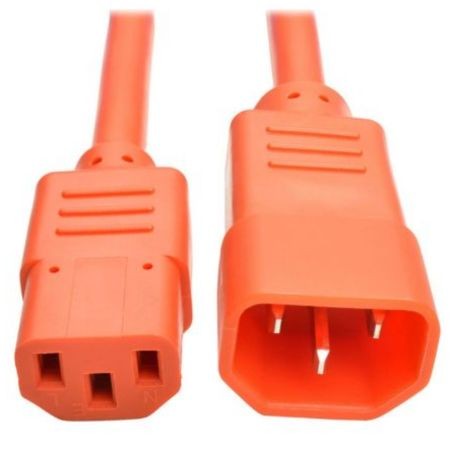

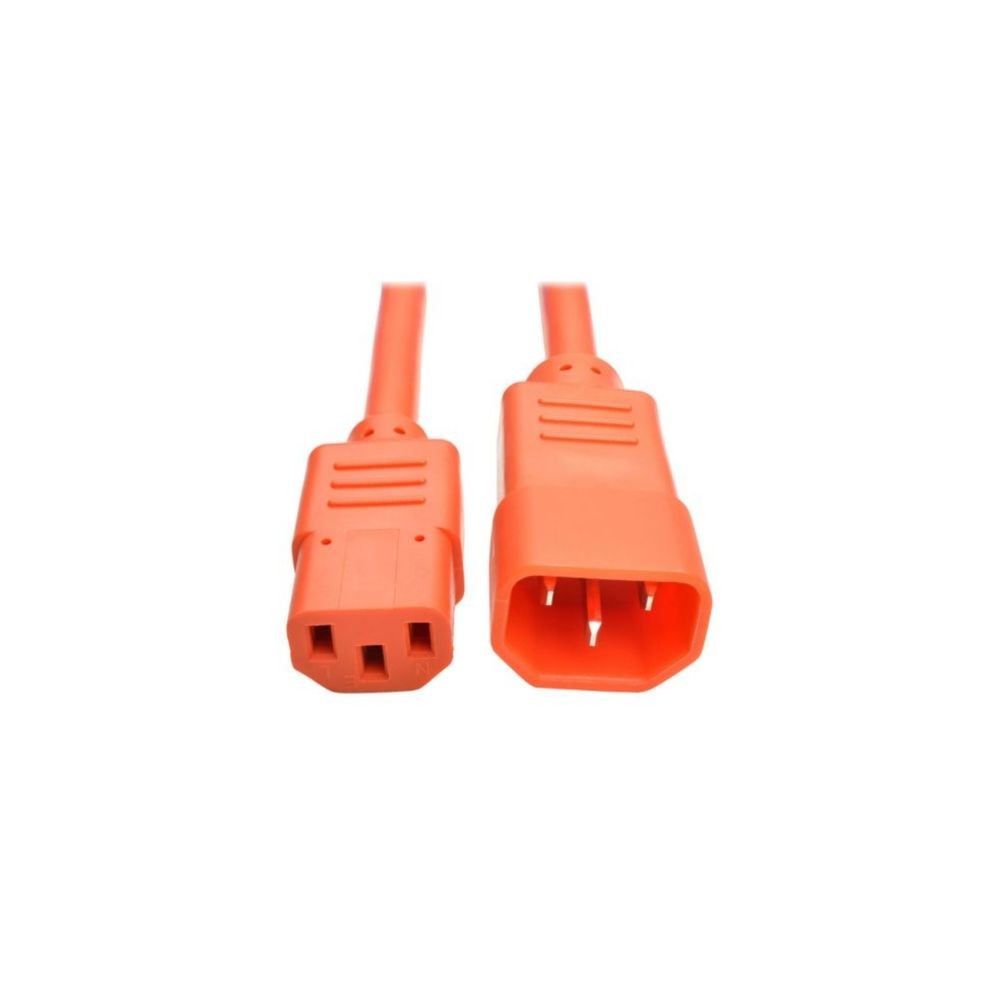

Eaton P005-006-AOR Tripp Lite 6ft Heavy Duty PDU Power Cord C13 C14 15A 250V
Overview
The Eaton P005-006-AOR is a heavy-duty PDU power extension cord with an IEC 320-C14 male connector and IEC 320-C13 female connector. It is intended for computers, servers, network switches, PDUs, UPS systems, printers, routers, monitors, and other compatible equipment.
The 14 AWG, three-conductor SJT cable is rated at 15A and 100-250VAC. Its 6 ft length provides additional reach between rack equipment and power distribution equipment while the flexible SJT construction supports practical cable routing.
The orange jacket and molded orange connectors provide clear visual identification in dense equipment installations. It is appropriate where equipment accepts C13/C14 connections and the circuit remains within the cord's 15A rating. It should not be used with incompatible connector types or loads exceeding the specified electrical rating.
Key Features
- 15A, 100-250VAC rating supports higher-power equipment
- 14 AWG SJT construction supports robust power delivery
- C14 male to C13 female connects compatible rack equipment
- 6 ft length provides flexibility for equipment placement
- Orange molded ends simplify cable identification in racks
Specifications
| Specification | Value |
|---|
| Brand | Eaton |
| Part Number | P005-006-AOR |
| Product Type | PDU power cord |
| Connector A | IEC 320-C14 male |
| Connector B | IEC 320-C13 female |
| Current Rating | 15A |
| Voltage Rating | 100-250VAC |
| Cable Length | 6 ft (1.83 m) |
| Wire Gauge | 14 AWG |
| Number of Conductors | 3 |
| Cord Type | SJT |
| Outer Cable Diameter | 9.3 mm |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | VW-1 |
| Cable/Jacket Color | Orange |
| Connector Color | Orange |
| Operating Temperature | -20°C to 60°C |
| Operating Humidity | 10%-65% RH |
| Certifications | UL Listed, cUL Listed, CSA Certified |
| Compliance | RoHS |
