Detailed Specifications

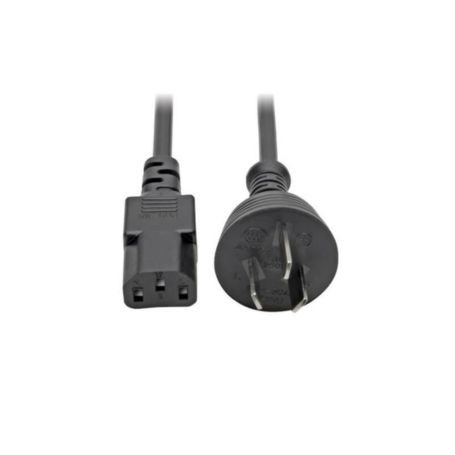

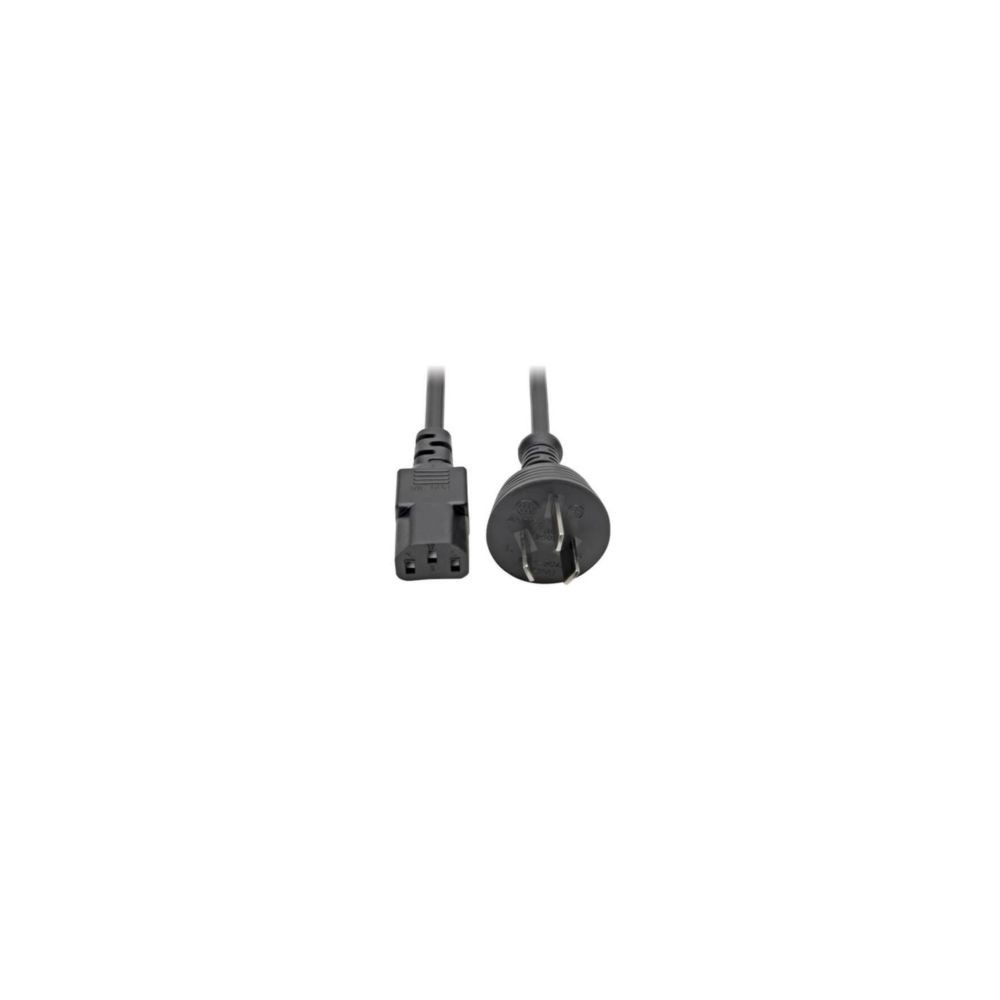

Eaton P055-010-CHN1 Tripp Lite China Computer Power Cord
Overview
The Eaton P055-010-CHN1, from the Tripp Lite series, is a 10 ft (3.05 m) China computer power cord featuring a GB 15934-2008 plug on one end and an IEC-320-C13 connector on the other. It is designed for connecting computers, servers, printers, UPS systems, PDUs, monitors and other compatible equipment to grounded AC outlets in China.
The cable is rated for 10A at 250VAC and uses 17 AWG, 3-conductor SJT-style construction with a black PVC jacket. Its molded connectors and 10 ft length make it suitable for office workstations and small data-center deployments where equipment needs to be positioned several feet from the AC outlet.
Key Features
- GB 15934-2008 to IEC-320-C13 connector configuration for China-market AC power connections.
- Supports 10A at 250VAC for compatible computer and IT equipment.
- 10 ft (3.05 m) cable length provides flexible equipment placement.
- Uses 17 AWG, 3-conductor construction with a black PVC jacket.
- Suitable for servers, computers, printers, UPS systems, PDUs and monitors/HDTVs.
Specifications
| Specification | Details |
|---|
| Brand | Eaton / Tripp Lite |
| Part Number | P055-010-CHN1 |
| Product Type | China Computer Power Cord |
| Cable Length | 10 ft (3.05 m) |
| Connector 1 | GB 15934-2008 |
| Connector 2 | IEC-320-C13 |
| Connector Configuration | China Plug to C13 |
| Maximum Current | 10A |
| Voltage Rating | 250VAC |
| Number of Conductors | 3 |
| Wire Gauge | 17 AWG |
| Cord Type | SJT |
| Shielding | Unshielded |
| Cable Jacket Material | PVC |
| Cable Jacket Color | Black |
| Outer Cable Diameter | 7.0 mm (0.28 in) |
| Connector Style | Straight |
| Connector Construction | Fully Molded |
| Device Compatibility | Computer, Monitor/HDTV, Printer, Server, UPS, PDU |
| Operating Temperature | 23° to 140°F (-5° to 60°C) |
| Storage Temperature | -4° to 176°F (-20° to 80°C) |
| Operating Humidity | 0-90% RH, non-condensing |
| Storage Humidity | 0-90% RH, non-condensing |
| Cable Jacket Rating | GB 5023.5 |
| Certifications | UL Listed, cUL Listed |
| Compliance | RoHS |
| Warranty | Lifetime Limited Worldwide |
| UPC | 037332232656 |
| Country / Regional Application | China |
