Detailed Specifications

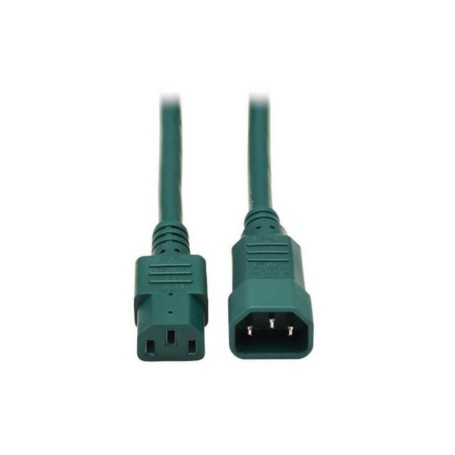

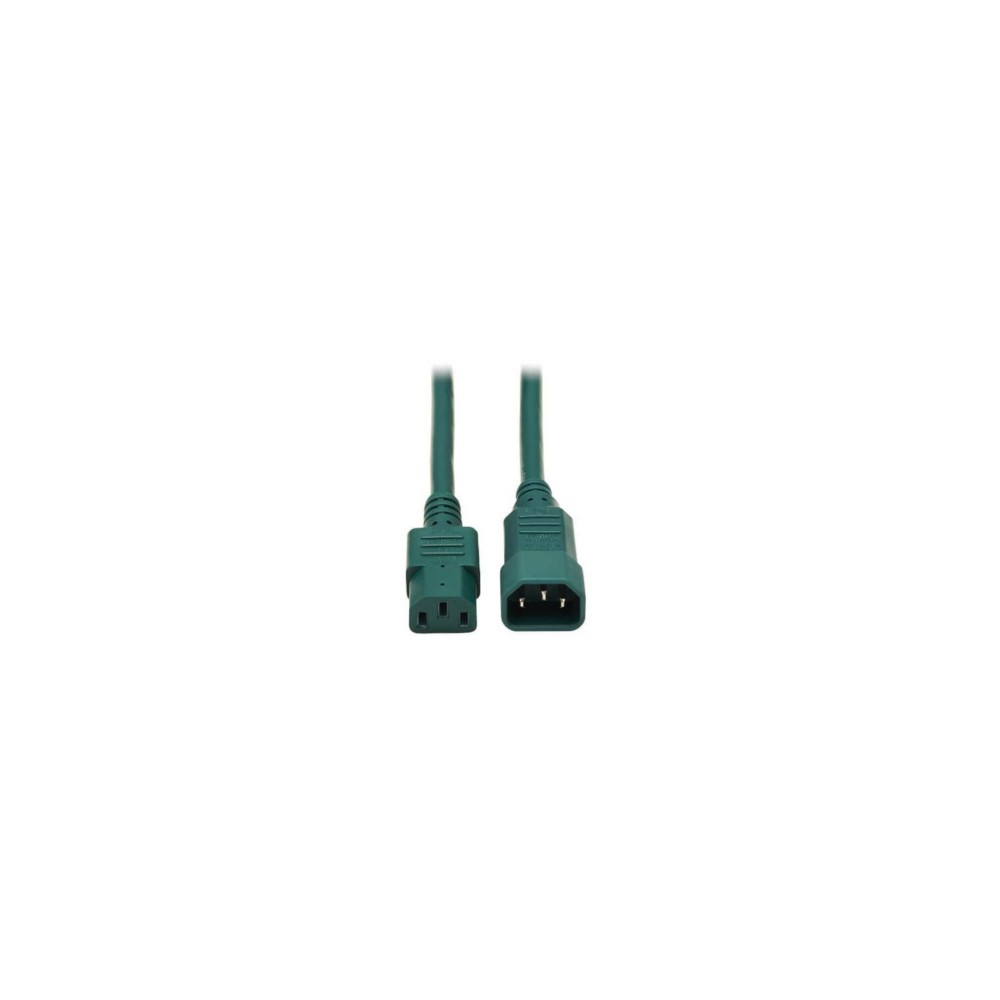

Eaton P005-006-AGN Heavy-Duty PDU Power Cord C13 to C14 Compatible Brand Tripp Lite
Overview :
The Eaton P005-006-AGN is a heavy-duty PDU power cord with an IEC-320-C14 male connector and IEC-320-C13 female connector. Eaton is the manufacturer, while Tripp Lite is the compatible/product brand associated with the model. Eaton identifies the product family as an Eaton Tripp Lite series PDU power cord.
The cable measures 6 ft. (1.83 m) and uses 14 AWG, 3-conductor SJT construction. It is rated for 15A and 100-250 VAC, making it suitable for higher-power servers, network equipment, UPS systems and PDUs.
The green jacket and molded green connectors provide easy identification in crowded racks and workstations. The C14-to-C13 configuration allows the cable to connect compatible equipment to a UPS or PDU or extend an existing power connection.
Key Features :
- 6-ft. (1.83 m) heavy-duty PDU power cord
- C14 male to C13 female configuration
- 15A current rating
- 100-250 VAC voltage rating
- 14 AWG, 3-conductor SJT cable
- Green cable jacket and molded connectors
- Designed for high-power server and network equipment
- Suitable for UPS and PDU connections
- Flexible SJT construction
- UL Listed, cUL Listed and CSA certified
- RoHS compliant
- Lifetime limited warranty
Specifications :
| SpecificationDetails | |
|---|
| Manufacturer | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | P005-006-AGN |
| Product Type | Heavy-Duty PDU Power Cord |
| Cable Length | 6 ft. (1.83 m) |
| Connector A | IEC-320-C14 Male |
| Connector B | IEC-320-C13 Female |
| Connector Configuration | Male-to-Female |
| Voltage Rating | 100-250 VAC |
| Current Rating | 15A |
| Wire Gauge | 14 AWG |
| Number of Conductors | 3 |
| Cord Type | SJT |
| Cable Jacket Material | PVC |
| Cable Jacket Color | Green |
| Connector Color | Green |
| Connector Style | Straight |
| Outer Cable Diameter | 9.2 mm |
| Compatible Equipment | Server, Network Switch, UPS, PDU, Computer, Printer, Monitor/HDTV |
| Cable Jacket Rating | FT2 |
| Compliance | RoHS |
| Certifications | UL Listed, cUL Listed, CSA Certified |
