Detailed Specifications
Eaton P006-L03 Tripp Lite 3ft Computer Power Cord NEMA 5 15P Locking C13
Overview

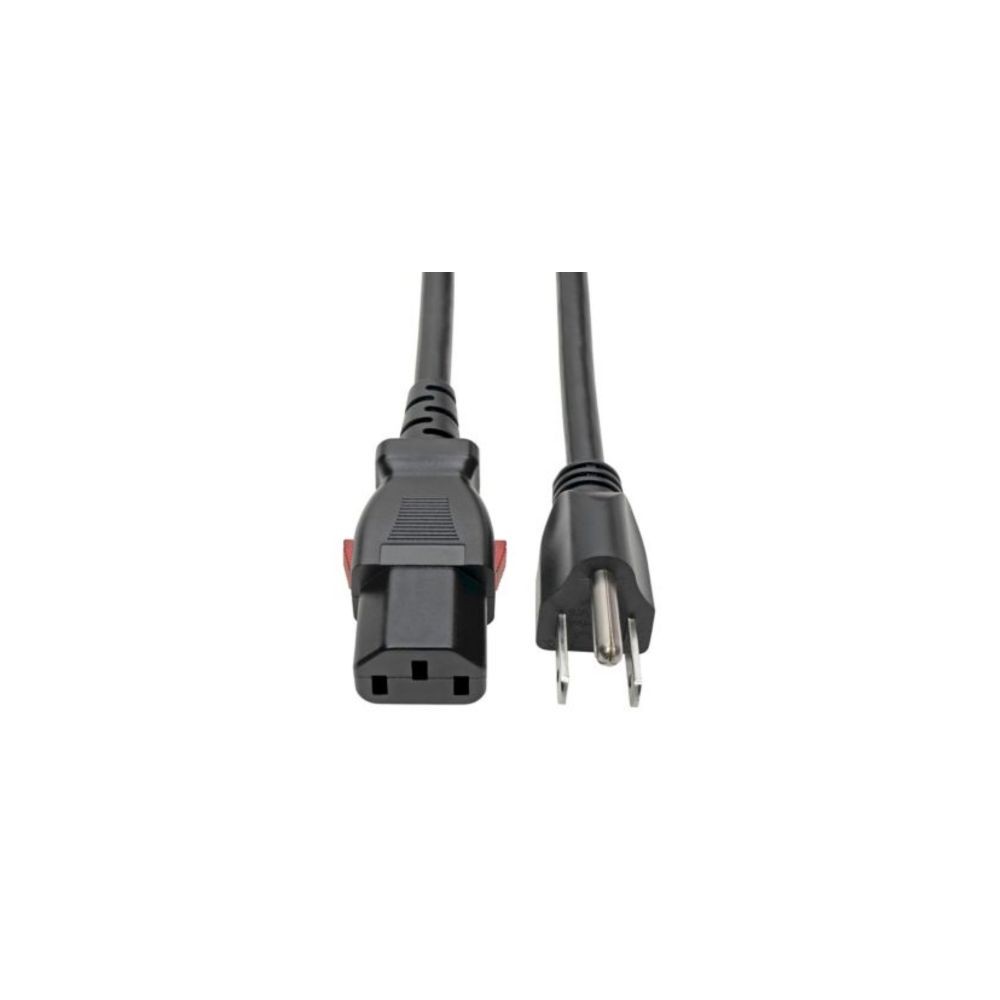

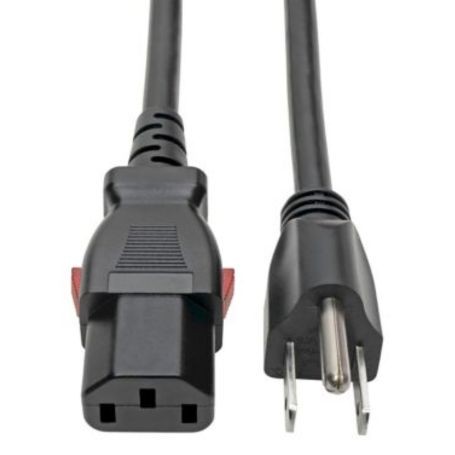

The Eaton P006-L03 is a computer power cord with a NEMA 5-15P plug and locking IEC 320-C13 connector. It is designed to power computers, servers, monitors, printers, UPS systems, and PDUs where a secure C13 connection is required.
The cord uses 18 AWG, three-conductor SJT construction and is rated for 10A at 125VAC. Its 3 ft length provides short equipment-to-PDU connections while limiting excess cable in rack and workstation installations.
The locking C13 connector helps prevent accidental disconnection, making the cord suitable for equipment where maintaining a secure power connection is important. It should not be used for loads exceeding 10A or equipment requiring a different connector or higher-rated cable.
Key Features
- Locking C13 connector helps prevent accidental disconnection
- 10A, 125VAC rating supports compatible equipment loads
- 18 AWG SJT construction provides flexible power connectivity
- 3 ft length helps reduce excess cable in equipment racks
- NEMA 5-15P connects equipment to standard AC outlets
Specifications
| Specification | Value |
|---|
| Brand | Eaton |
| Part Number | P006-L03 |
| Product Type | Computer power cord |
| Connector A | NEMA 5-15P |
| Connector B | IEC 320-C13 locking |
| Current Rating | 10A |
| Voltage Rating | 125VAC |
| Cable Length | 3 ft (914.4 mm) |
| Wire Gauge | 18 AWG |
| Number of Conductors | 3 |
| Cord Type | SJT |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | VW-1 |
| Cable Color | Black |
| Connector Style | Straight |
| Locking Feature | Locking C13 |
| Outer Cable Diameter | 7.7 mm |
| Operating Temperature | -20°C to 105°C |
| Operating Humidity | 0%-65% RH |
| Certifications | UL Listed, cUL Listed |
| Compliance | RoHS |
| Device Compatibility | Computer, Server, Monitor/HDTV, Printer, PDU, UPS |
