Detailed Specifications
Eaton P006-010-15D Tripp Lite 10ft Desktop Computer AC Power Cord Right Angle NEMA
Overview

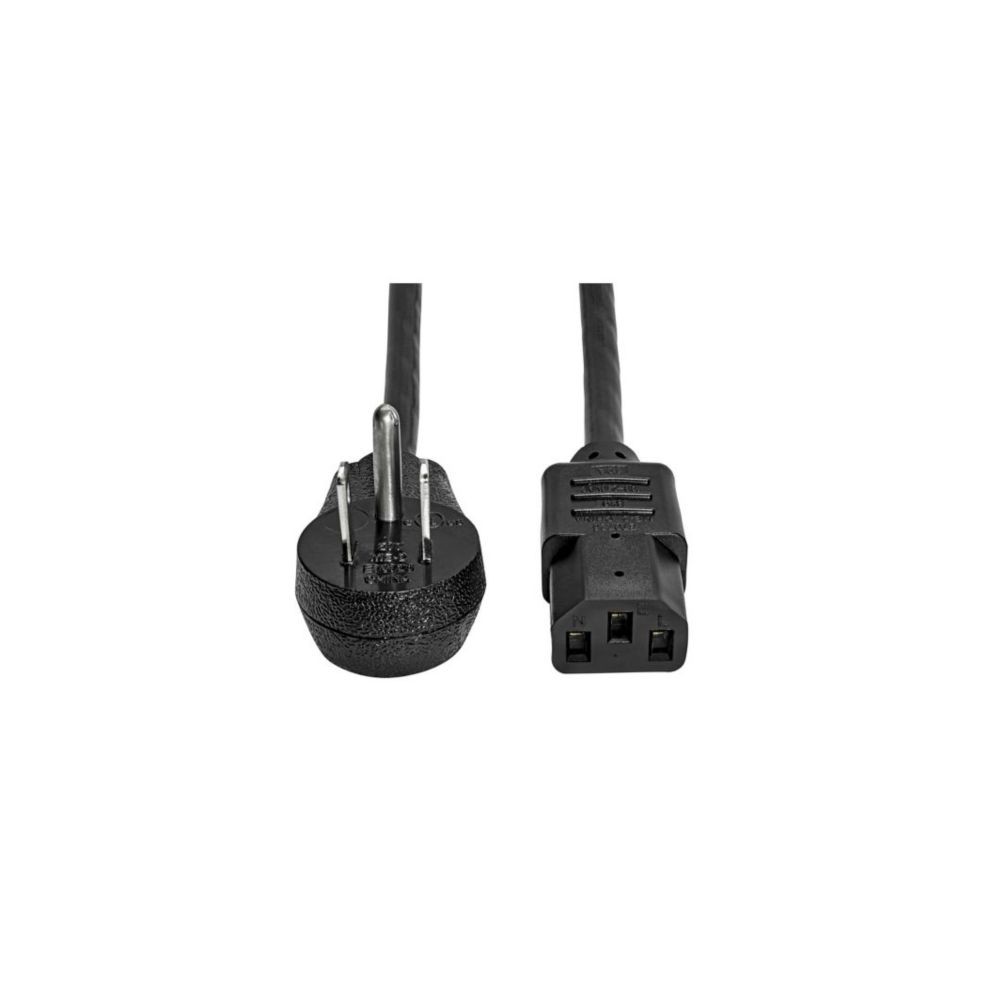

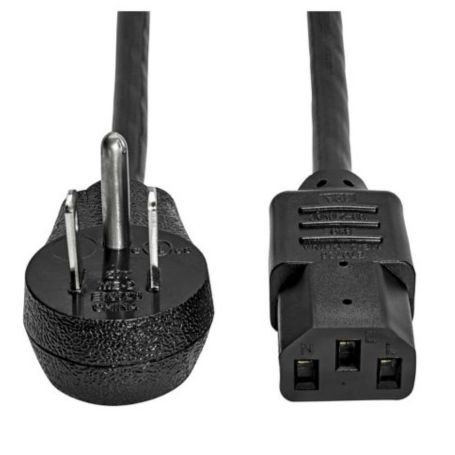

The Eaton Tripp Lite P006-010-15D is a 10-ft AC power cord with a right-angle NEMA 5-15P plug and IEC 60320 C13 connector. It is designed for computers, monitors, printers, servers, UPS systems, and PDUs with compatible C14 power inlets.
The cord is rated for 10A at 125VAC and uses 18 AWG, three-conductor SJT cable. The right-angle NEMA plug helps when outlet access is restricted or equipment is positioned close to a wall or rack surface.
It is intended for North American power connections. Do not use it where the equipment requires a different input connector, voltage, current rating, or regional plug standard.
Key Features
- 10-ft length supports flexible equipment placement
- Right-angle NEMA 5-15P suits confined installation spaces
- 18 AWG, three-conductor SJT cable supports 10A loads
- C13 connector fits equipment with compatible C14 inlet
- 125VAC rating supports North American IT equipment
Specifications
| Specification | Verified Value |
|---|
| Brand | Eaton Tripp Lite |
| Part Number | P006-010-15D |
| Product Type | AC Power Cord |
| Cable Length | 10 ft (3.05 m) |
| Voltage Rating | 125 VAC |
| Current Rating | 10 A |
| Wire Gauge | 18 AWG |
| Number of Conductors | 3 |
| Cord Type | SJT |
| Connector A | NEMA 5-15P, Right Angle |
| Connector B | IEC 60320 C13 |
| Jacket Material | PVC |
| Jacket Color | Black |
| Outer Cable Diameter | 7.7 mm |
| Operating Temperature | -20°C to 60°C |
