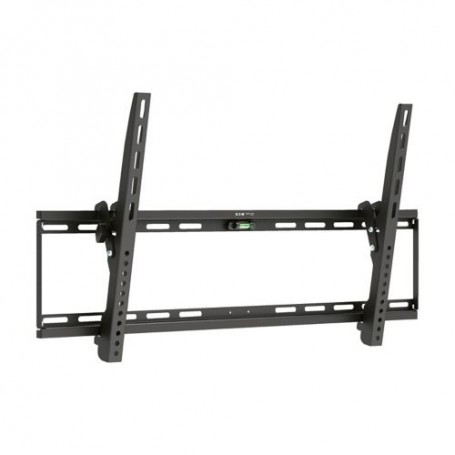

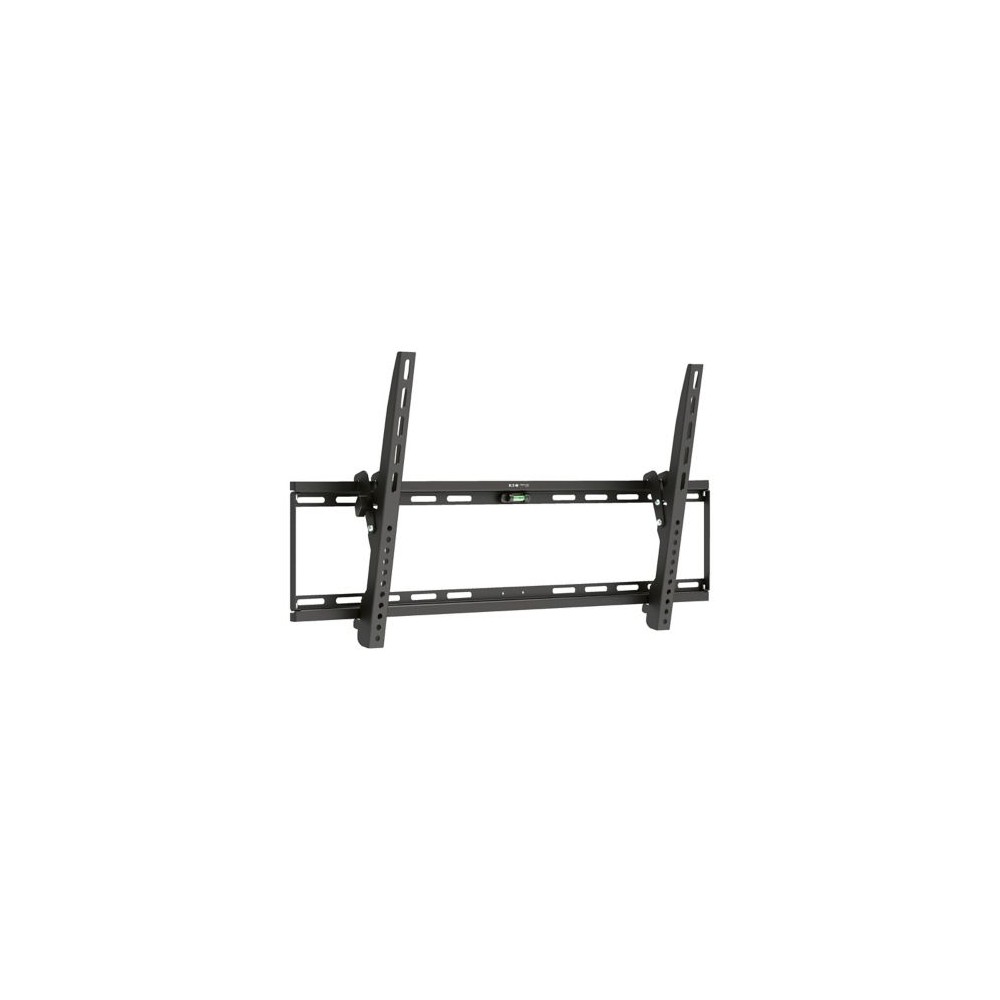

Eaton Tripp Lite DWT3770X Tilt Wall Mount
The Eaton Tripp Lite DWT3770X is a VESA-compliant tilt wall mount designed for compatible flat-panel TVs, monitors and other displays from 37 to 70 inches. Its steel construction supports displays weighing up to 200 pounds (90.7 kg), while the low-profile design positions the mounted display close to the wall.
Display Mounting and Adjustment
The DWT3770X provides -10° to 0° tilt adjustment to help change the viewing angle when the audience is positioned below the display. Its adjustable mounting rails compensate for off-center wall studs, and a built-in bubble level assists with accurate display alignment during installation.
VESA Compatibility
The mount supports a broad range of VESA mounting patterns, including 200 x 200, 200 x 300, 200 x 400, 300 x 200, 300 x 300, 300 x 400, 400 x 200, 400 x 300, 400 x 400, 500 x 300, 500 x 400, 600 x 300, 600 x 400, 800 x 300 and 800 x 400 mm. The display must also remain within the specified 37–70 inch size and 200-pound weight limits.
Construction and Installation
The DWT3770X uses an all-metal frame with a scratch-resistant powder-coated black finish. Its open-frame design provides access to the wall area behind the mount. Mounting hardware is included for compatible installations on wood-stud, brick and concrete walls.
Key Features
- Supports compatible 37–70 inch flat-panel displays
- Supports up to 200 lb. (90.7 kg)
- -10° to 0° tilt adjustment
- Wide range of VESA mounting patterns up to 800 x 400 mm
- Adjustable mounting rails and built-in bubble level for installation alignment
Applications
- Home theater and residential TV installations
- Classrooms and training rooms
- Conference rooms and boardrooms
- Hotels, bars and restaurants
- Commercial video presentation and digital signage installations
DC Supplies Product Note
The DWT3770X is a tilt-only wall mount rather than a full-motion arm; its specified adjustment is -10° downward to 0°.
Specifications
| Specification | Details |
|---|
| Brand | Eaton Tripp Lite |
| Part Number / MPN | DWT3770X |
| Product Type | Tilt Wall Mount |
| Display Type | Monitor / HDTV |
| Number of Displays | 1 |
| Supported Screen Size | 37–70 in. |
| Maximum Weight Capacity | 200 lb. (90.7 kg) |
| Motion | Tilt |
| Tilt Range | -10° to 0° |
| Distance from Wall | 1.77 in. |
| Mounting Location | Wall |
| Material | Steel |
| Color | Black |
| Finish | Scratch-resistant powder coat |
| Mounting Features | Adjustable rails, built-in bubble level |
| Wall Access | Open-frame design |
| Wall Compatibility | Wood stud, brick and concrete |
| Assembly | Required |
| Tools Required | Yes |
| Compliance | RoHS, RoHS3, REACH |
| Warranty | 5-year limited warranty |
Frequently Asked Questions
What screen sizes does the DWT3770X support?
The DWT3770X is designed for compatible flat-panel displays from 37 to 70 inches.
How much weight can the DWT3770X support?
The maximum listed weight capacity is 200 pounds (90.7 kg).
How much can the display tilt?
The mount provides -10° to 0° tilt adjustment.
Which VESA patterns are supported?
The DWT3770X supports VESA patterns ranging from 200 x 200 through 800 x 400 mm, including the intermediate patterns specified by Eaton.
Does the mount include installation hardware?
Yes. The package includes M5, M6 and M8 mounting screws, washers, spacers, anchor bolts and concrete anchors, along with the owner's manual.
Does the DWT3770X provide full-motion adjustment?
No. The DWT3770X is a tilt wall mount with -10° to 0° tilt capability; it does not provide swivel or articulating-arm movement.
