Detailed Specifications

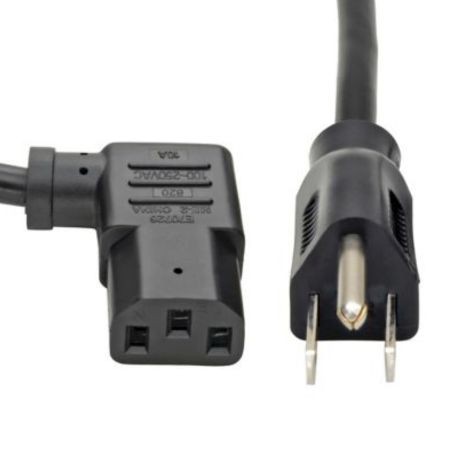

Eaton P006-010-13RA Tripp Lite 10ft Computer Power Cord NEMA 5 15P Right Angle C13
Overview
The Eaton Tripp Lite P006-010-13RA is a 10 ft AC power cord with a NEMA 5-15P plug and a right-angle IEC 60320 C13 connector. It is intended for computers, monitors, printers, servers, PDUs, UPS systems, and compatible equipment using a C14 inlet.
The cord is rated 10A at 125VAC and uses 18 AWG, 3-conductor SJT cable with a black PVC jacket. The right-angle C13 connector is useful where equipment is installed close to a wall or where rear cable clearance is limited.
It is suitable for compatible North American power connections. Do not use it with equipment requiring a different connector, higher current rating, or different voltage configuration.
Key Features
- 10A, 125VAC rating supports compatible IT equipment
- Right-angle C13 connector improves clearance behind equipment
- NEMA 5-15P provides standard North American AC connection
- 18 AWG, 3-conductor SJT cable supports rated power delivery
- 10 ft length provides flexible equipment placement
Specifications
| Specification | Verified Value |
|---|
| Brand | Eaton Tripp Lite |
| Part Number | P006-010-13RA |
| Product Type | Power Cord |
| Current Rating | 10 A |
| Voltage Rating | 125 VAC |
| Cable Length | 10 ft (3.05 m) |
| Wire Gauge | 18 AWG |
| Number of Conductors | 3 |
| Cable Type | SJT |
| Input Connector | NEMA 5-15P |
| Output Connector | IEC 60320 C13, Right Angle |
| Cable Jacket Material | PVC |
| Cable Jacket Color | Black |
| Cable Jacket Rating | VW-1 |
| Outer Cable Diameter | 7.8 mm |
| Operating Temperature | -20°C to 60°C |
| Certifications | UL Listed, cUL Listed |
| Compliance | RoHS |
| Compatible Equipment | Server, Computer, Printer, Monitor/HDTV, PDU, UPS |
