Detailed Specifications

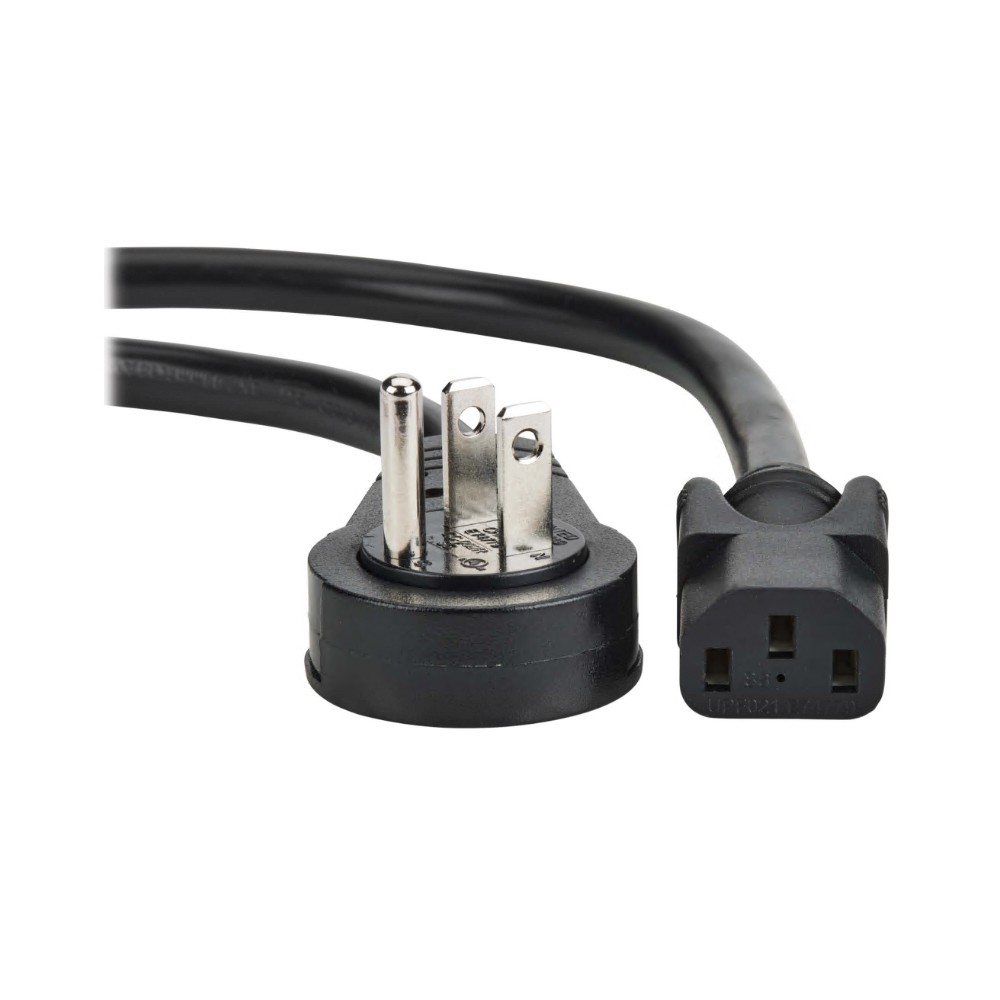

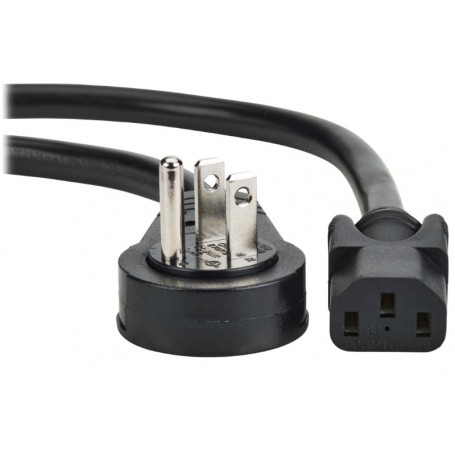

Eaton P007-003-15RR 3ft Right-Angle Computer Power Cord compatible Tripp Lite
Overview :
The Eaton P007-003-15RR is a Tripp Lite by Eaton heavy-duty computer power cord designed to connect computers, servers, monitors, printers and other compatible equipment with an IEC-320-C14 inlet to an AC outlet on a PDU or compatible power source.
The cable features a NEMA 5-15P right-angle plug on one end and an IEC-320-C13 connector on the other. Its 360-degree rotating right-angle plug helps simplify connections in confined spaces and crowded PDU or UPS installations.
The 3-ft cable uses 14 AWG, 3-conductor SJT wiring and is rated for 15A at 125V AC. The black PVC jacket and molded construction provide a durable solution for data-center, office and network-equipment power connections.
Key Features :
- 3-ft (0.9 m) heavy-duty computer power cable
- NEMA 5-15P right-angle plug
- 360-degree rotating right-angle plug
- IEC-320-C13 female connector
- 15A, 125V AC rating
- 14 AWG, 3-conductor construction
- SJT cable jacket
- Black PVC jacket
- Suitable for servers, computers, printers and network equipment
- Designed for PDU and UPS connections
- Helps reduce cable clutter in equipment installations
- UL and cUL Listed
- Lifetime limited worldwide warranty
Specifications :
| Specification | Details |
|---|
| Manufacturer | Eaton |
| Brand | Tripp Lite by Eaton |
| Part Number | P007-003-15RR |
| Product Type | Computer Power Cord |
| Cable Length | 3 ft (0.9 m) |
| Connector A | NEMA 5-15P Right Angle |
| Connector B | IEC-320-C13 |
| Connector Configuration | NEMA 5-15P to IEC-320-C13 |
| Plug Design | 360° Rotating Right-Angle |
| Voltage Rating | 125V AC |
| Current Rating | 15A |
| Wire Gauge | 14 AWG |
| Number of Conductors | 3 |
| Cable Jacket | SJT |
| Jacket Material | PVC |
| Cable Outer Diameter | 7.7 mm |
| Jacket Color | Black |
| Operating Temperature | 23° to 158°F (-5° to 70°C) |
| Storage Temperature | 14° to 140°F (-10° to 60°C) |
| Operating Humidity | 35% to 85% RH |
| Storage Humidity | 35% to 85% RH |
| Device Compatibility | Computer, Laptop |
| Certifications | UL, cUL, CSA |
| Compliance | WEEE |
