Detailed Specifications

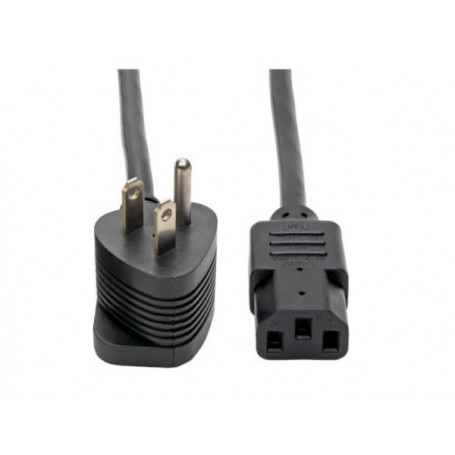

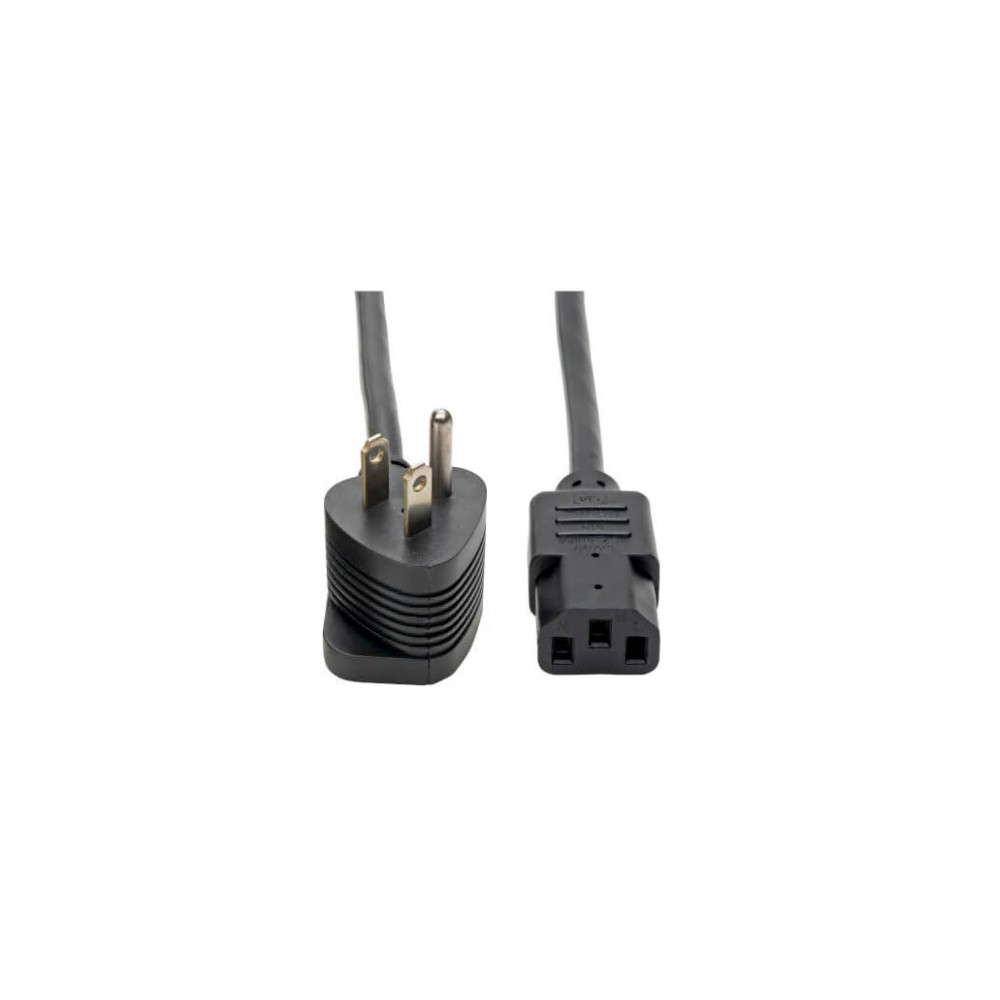

Eaton P006-006-515MF 6 ft Piggyback Power Cord Compatible Tripp Lite
Overview :
The Eaton P006-006-515MF is a 6-foot (1.83 m) piggyback AC power cord designed to allow two compatible pieces of equipment to share a single NEMA 5-15R electrical outlet. Eaton is the manufacturer, while Tripp Lite is the compatible/product brand associated with the model.
The cord uses a combination NEMA 5-15P/5-15R piggyback connector at one end and an IEC 60320 C13 connector at the other. The integrated 5-15R pass-through receptacle allows a second device with a NEMA 5-15P power cord to share the same wall or PDU outlet.
The P006-006-515MF uses heavy-duty 16 AWG, 3-conductor SJT cable and is rated for 13A at 125 VAC. It is intended for computers, monitors, printers and other compatible IT or office equipment where consolidating two power connections onto one AC outlet is useful.
Key Features :
- 6 ft. (1.83 m) cable length
- NEMA 5-15P/5-15R combination piggyback connector
- IEC 60320 C13 connector
- Allows two devices to share one AC outlet
- 13A current rating
- 125 VAC voltage rating
- Heavy-duty 16 AWG conductors
- 3-conductor SJT construction
- Molded connector ends
- Black flexible PVC jacket
- Suitable for computers, monitors and peripherals
- Useful for conserving PDU outlet capacity
- UL Listed
- RoHS compliant
- Limited lifetime warranty
Specifications :
| SpecificationDetails | |
|---|
| Manufacturer | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | P006-006-515MF |
| Product Type | Piggyback power cord |
| Cable Length | 6 ft. (1.83 m) |
| Connector A | NEMA 5-15P / NEMA 5-15R |
| Connector B | IEC 60320 C13 |
| Current Rating | 13A |
| Voltage Rating | 125 VAC |
| Wire Gauge | 16 AWG |
| Number of Conductors | 3 |
| Cable Type | SJT |
| Jacket Material | Flexible PVC |
| Cable Color | Black |
| Connector Construction | Molded |
| Pass-Through Outlet | NEMA 5-15R |
