Eaton P004-006-AOR PDU Power Cord C13 to C14 Compatible Brand Tripp Lite
Overview :

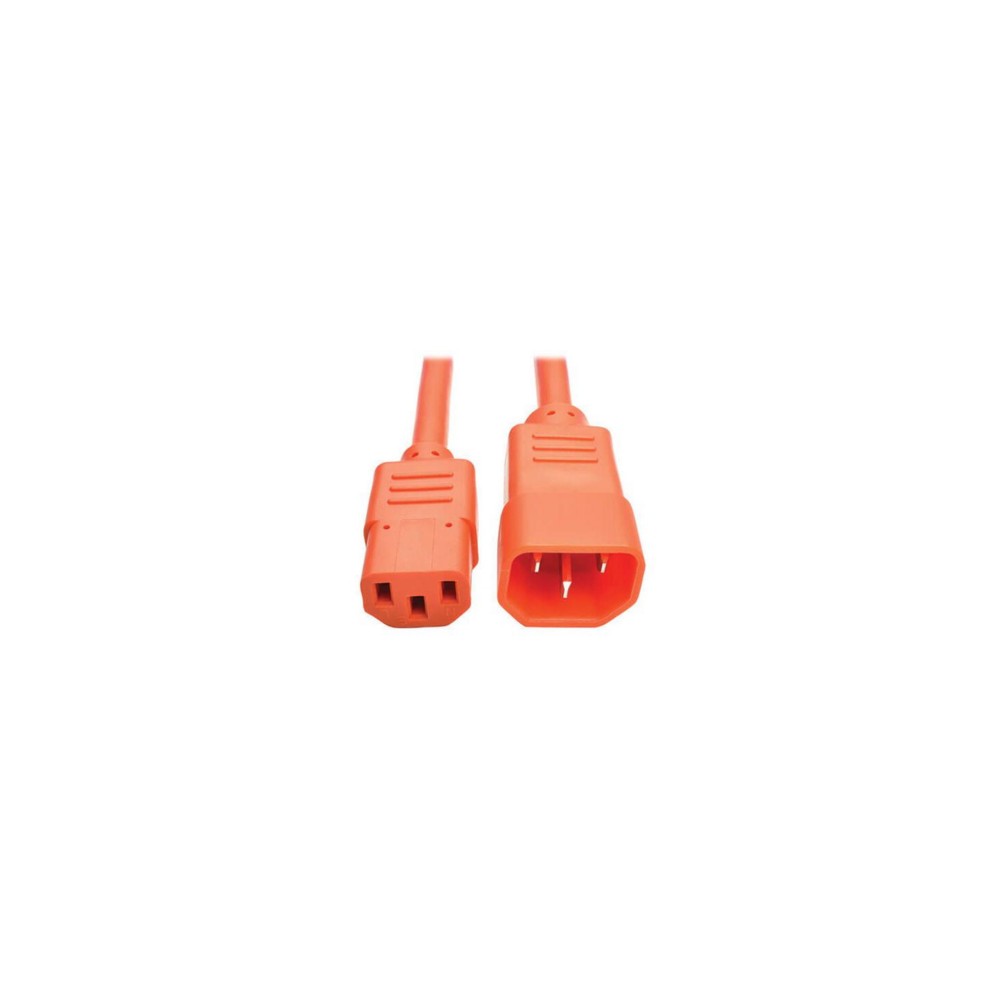

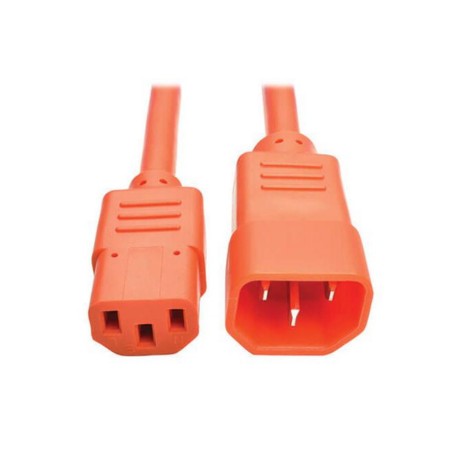

The Eaton P004-006-AOR is a standard PDU power extension cord with an IEC-320-C14 male connector and IEC-320-C13 female connector. Eaton is the manufacturer, while Tripp Lite is the compatible/product brand associated with the model. Eaton documentation identifies the product as an Eaton Tripp Lite series PDU power cord.
The cable measures 6 ft. (1.83 m) and uses 18 AWG, 3-conductor SJT construction. It is rated for 100-250 VAC and 10A, making it suitable for connecting servers, computers, monitors, printers, UPS systems and PDUs.
The orange PVC/SJT jacket and molded orange connectors provide easy identification in crowded racks and workstations. The flexible construction supports cable routing in data-center and server-room environments.
Key Features :
- 6-ft. (1.83 m) PDU power extension cord
- C14 male to C13 female configuration
- 100-250 VAC voltage rating
- 10A current rating
- 18 AWG, 3-conductor SJT cable
- Orange cable jacket and molded connectors
- 7.8 mm outer cable diameter
- Suitable for servers, computers, monitors, printers, UPS systems and PDUs
- Flexible construction for easier routing
- UL Listed, cUL Listed and CSA certified
- RoHS and REACH compliant
- Lifetime limited warranty
Specifications :
| SpecificationDetails | |
|---|
| Manufacturer | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | P004-006-AOR |
| Product Type | PDU Power Cord |
| Cable Length | 6 ft. (1.83 m) |
| Connector A | IEC-320-C14 Male |
| Connector B | IEC-320-C13 Female |
| Connector Configuration | Male-to-Female |
| Voltage Rating | 100-250 VAC |
| Current Rating | 10A |
| Wire Gauge | 18 AWG |
| Number of Conductors | 3 |
| Cord Type | SJT |
| Outer Cable Diameter | 7.8 mm |
| Cable Jacket Material | PVC |
| Cable Jacket Color | Orange |
| Connector Color | Orange |
| Connector Style | Straight |
| Cable Jacket Rating | VW-1 |
| Compatible Equipment | Server, UPS, Printer, Computer, Monitor/HDTV, PDU |
| Compliance | RoHS, REACH |
| Certifications | UL Listed, cUL Listed, CSA Certified |
