Detailed Specifications

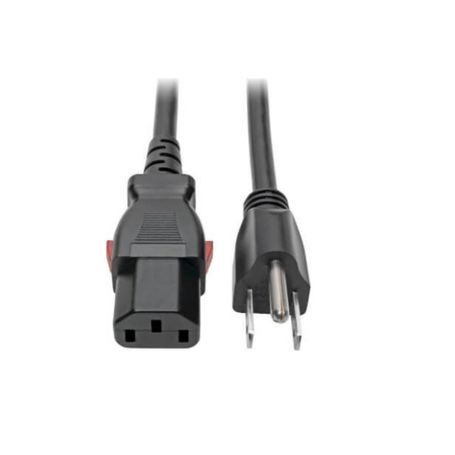

Eaton P006-L01 Tripp Lite Locking C13 Computer Power Cord
Overview
The Eaton P006-L01, from the Tripp Lite series, is a 1-ft (0.31 m) computer power cord designed to connect compatible computers, servers, monitors, printers, PDUs, and UPS equipment to a standard North American AC outlet. It features a NEMA 5-15P male plug and a locking IEC-320-C13 female connector.
The cable is rated for 10A at 125 VAC and uses 18 AWG, 3-conductor SJT construction with a black PVC jacket and VW-1 jacket rating. The locking C13 connector is designed to maintain a secure equipment connection and help prevent accidental disconnection in rack, UPS, PDU, and office deployments.
Key Features
- 1-ft (0.31 m) cable length for short equipment power connections.
- NEMA 5-15P male to locking IEC-320-C13 female connector configuration.
- Rated for 10A at 125 VAC.
- 18 AWG, 3-conductor SJT power cable construction.
- Black PVC jacket with VW-1 rating and molded connectors for equipment deployments.
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Series / Brand | Tripp Lite |
| Part Number | P006-L01 |
| Product Type | Computer Power Cord |
| Cable Length | 1 ft (0.31 m) |
| Connector A | NEMA 5-15P Male |
| Connector B | IEC-320-C13 Female, Locking |
| Connector Configuration | NEMA 5-15P to Locking C13 |
| Current Rating | 10 A |
| Voltage Rating | 125 VAC |
| Number of Conductors | 3 |
| Wire Gauge | 18 AWG |
| Cord Type | SJT |
| Cable Jacket Material | PVC |
| Cable Jacket Color | Black |
| Cable Jacket Rating | VW-1 |
| Outer Cable Diameter | 7.7 mm |
| Shielding | Unshielded |
| Connector Style | Straight |
| Plug Color | Black |
| Device Compatibility | Computer, Monitor/HDTV, PDU, Server, Printer, UPS |
| Operating Temperature | -4° to 221°F (-20° to 105°C) |
| Storage Temperature | -4° to 221°F (-20° to 105°C) |
| Operating Humidity | 0% to 65% RH |
| Storage Humidity | 0% to 65% RH |
| Certifications | UL Listed, cUL Listed, CSA Certified |
| Compliance | RoHS, REACH |
| UPC | 037332218254 |
| Warranty | Lifetime Limited Warranty |
