Detailed Specifications

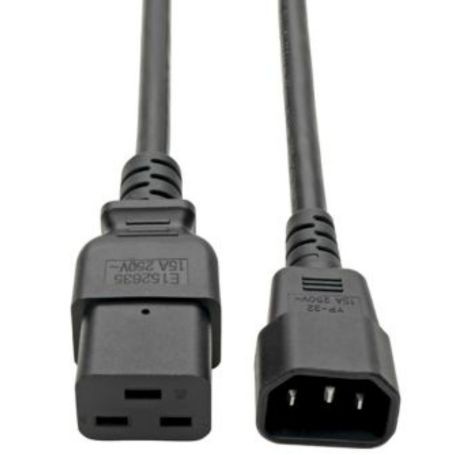

Eaton P047-004 Tripp Lite 4ft Power Cord C19 C14 Heavy Duty 15A 250V
Overview

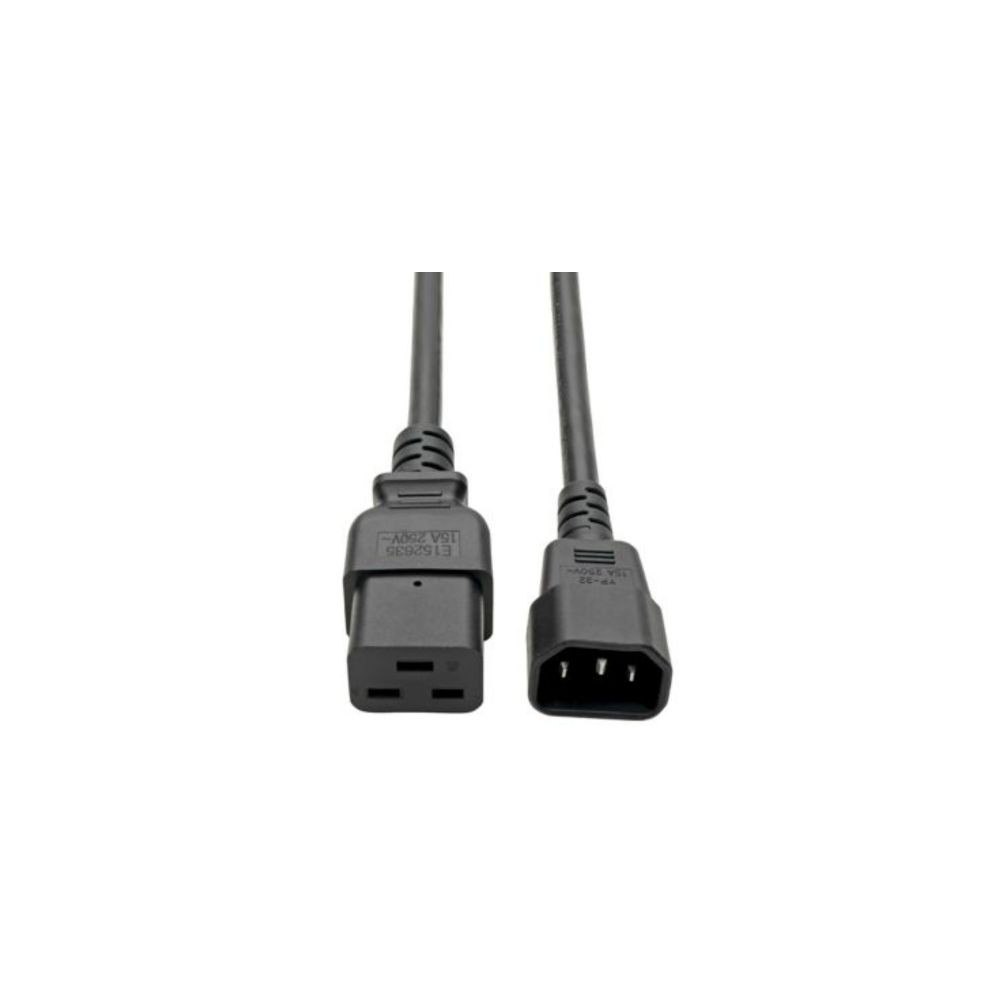

The Eaton Tripp Lite P047-004 is a 4-ft heavy-duty power cord with IEC 60320 C14 and C19 connectors. It is designed for computers, servers, UPS systems, PDUs, and other network equipment requiring compatible IEC power connections.
The cord uses 14 AWG, three-conductor SJT construction and is rated for 15A at 100-250VAC. The 4-ft length provides short rack-level power runs while helping limit excess cable in equipment installations.
It is suitable for compatible equipment using C14 and C19 connections. It should not be used where the equipment requires a different connector configuration or exceeds the verified electrical rating.
Key Features
- 15A, 100-250VAC rating supports compatible IT equipment
- 14 AWG conductors support higher-power rack connections
- C14-to-C19 configuration fits compatible server equipment
- 4-ft length helps reduce excess cable in rack deployments
- SJT construction provides a durable power connection
Specifications
| Specification | Verified Value |
|---|
| Brand | Eaton Tripp Lite |
| Part Number | P047-004 |
| Product Type | Power Cord |
| Cable Length | 4 ft (1.22 m) |
| Voltage Rating | 100-250 VAC |
| Current Rating | 15 A |
| Wire Gauge | 14 AWG |
| Number of Conductors | 3 |
| Cord Type | SJT |
| Connector A | IEC 60320 C14 |
| Connector B | IEC 60320 C19 |
| Outer Cable Diameter | 9.3 mm |
| Jacket Material | PVC |
| Jacket Color | Black |
| Cable Jacket Rating | VW-1 |
| Operating Temperature | -20°C to 60°C |
| Device Compatibility | Computer, UPS, Server, PDU |
| Certifications | UL Listed, cUL Listed |
| Compliance | RoHS |
