Detailed Specifications
Eaton DWT2670XE Tripp Lite Heavy-Duty Tilt Wall Mount for 26 70 Displays
Overview

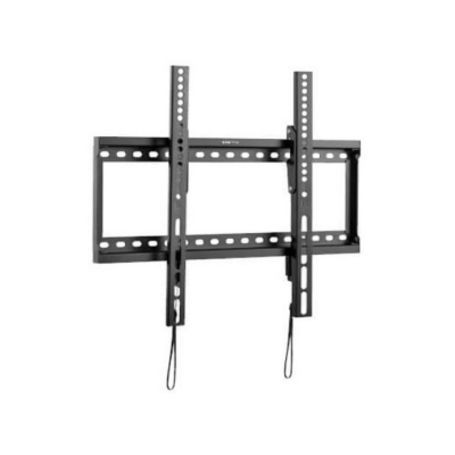

The Eaton DWT2670XE is a Tripp Lite by Eaton heavy-duty tilt wall mount designed for curved and flat-screen TVs and monitors from 26 to 70 inches. It supports displays weighing up to 165 lb (75 kg) and provides a low-profile wall-mounted installation for classrooms, conference rooms, hospitality, commercial AV and home-theater environments.
The mount provides -8° to 0° tilt adjustment to help reduce screen glare and optimize the viewing angle. Its open-back design provides access to cables and power connections, while adjustable horizontal mounting rails help compensate for off-center wall studs.
Automatic spring locks with quick-release cords simplify display installation and removal. The mount supports a wide range of VESA patterns from 50 × 50 mm through 400 × 400 mm.
Key Features
- Supports 26-70 inch curved and flat-screen displays weighing up to 165 lb.
- -8° to 0° tilt adjustment helps optimize the viewing angle and reduce glare.
- VESA-compatible mounting supports patterns from 50 × 50 mm to 400 × 400 mm.
- Automatic spring locks with quick-release cords simplify display installation and removal.
- Heavy-duty steel construction with open-back architecture provides durability and convenient cable access.
Specifications
| Specification | Details |
|---|
| Brand | Eaton / Tripp Lite |
| Model | DWT2670XE |
| Product Type | Heavy-Duty Tilt Wall Mount |
| Supported Display Type | Curved / Flat-Screen TV, Monitor, HDTV |
| Number of Displays | 1 |
| Supported Screen Size | 26-70 in |
| Maximum Load Capacity | 165 lb / 75 kg |
| Mounting Type | Wall Mount |
| Mount Profile | Low Profile |
| Tilt Range | -8° to 0° |
| VESA Compatibility | Yes |
| Minimum VESA Pattern | 50 × 50 mm |
| Maximum VESA Pattern | 400 × 400 mm |
| Supported VESA Patterns | 50×50, 75×75, 100×100, 100×150, 100×200, 150×100, 150×150, 200×100, 200×200, 200×400, 300×200, 300×300, 350×350, 400×200, 400×300, 400×400 mm |
| Construction | Heavy-Duty Steel |
| Finish | Powder-Coated Black |
| Cable Access | Open-Back Architecture |
| Mounting Rails | Horizontally Adjustable |
| Display Lock | Automatic Spring Lock |
| Display Removal | Quick-Release Cords |
| Dimensions | 17.20 × 16.54 × 1.50 in |
| Product Weight | 2.64 lb |
| UPC | 037332275776 |
| Compliance | RoHS |
| Warranty | 5-Year Limited Worldwide |
