Detailed Specifications

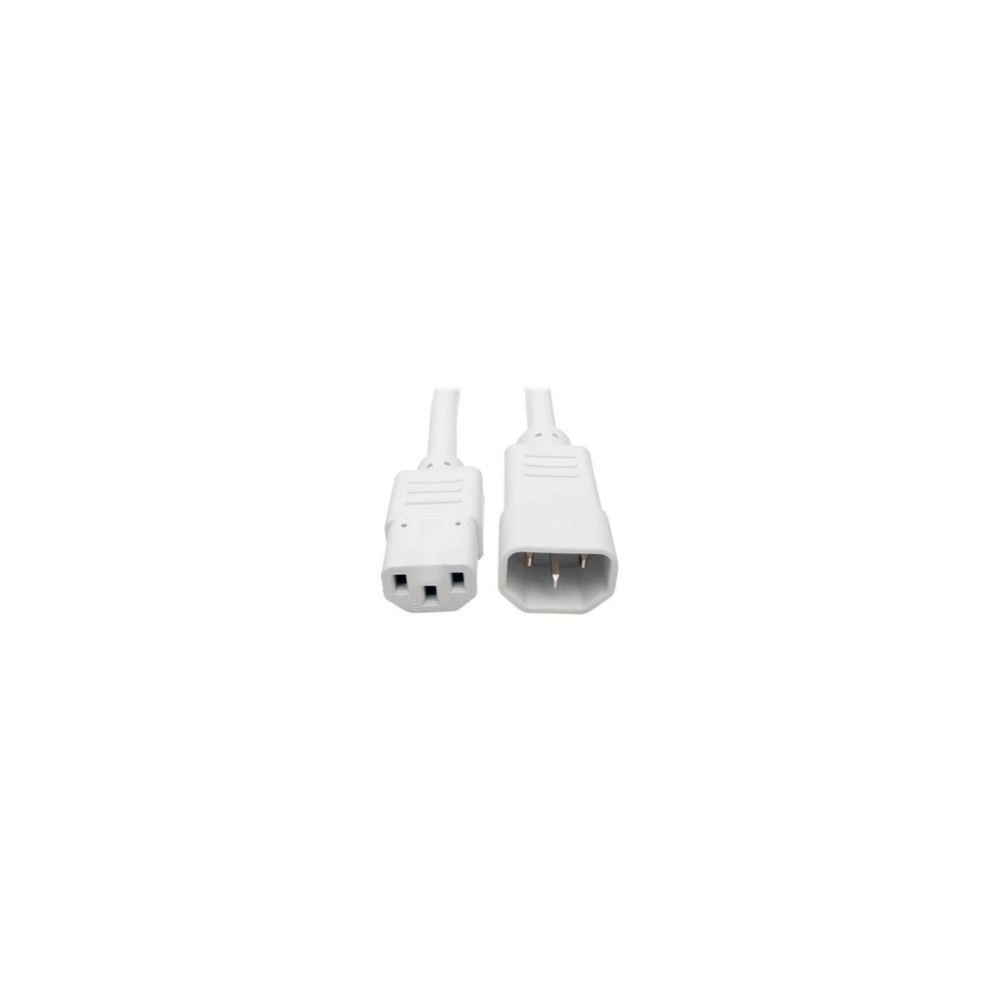

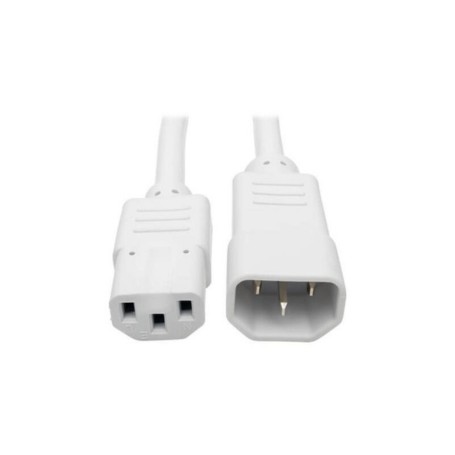

Eaton P005-002-AWH Heavy-Duty PDU Power Cord C13 to C14 Compatible Tripp Lite
Overview :
The Eaton P005-002-AWH is a heavy-duty PDU-style power extension cord with an IEC-320-C14 male connector and IEC-320-C13 female connector. Eaton is the manufacturer, while Tripp Lite is the compatible/product brand associated with the model. Eaton identifies it as an Eaton Tripp Lite series PDU power cord.
The cable measures 2 ft. (0.61 m) and uses 14 AWG, 3-conductor SJT construction. It is rated for 15A and 100-250 VAC, providing the heavier-gauge construction required for higher-power server and network equipment.
The white PVC jacket and molded white connectors provide easy identification in crowded racks and workstations. The cable is suitable for computers, servers, network switches, UPS systems, PDUs, printers and monitors.
Key Features :
- 2-ft. (0.61 m) heavy-duty PDU power cord
- C14 male to C13 female configuration
- 15A current rating
- 100-250 VAC voltage compatibility
- 14 AWG, 3-conductor SJT cable
- 9.3 mm outer cable diameter
- White PVC jacket and molded connectors
- VW-1 cable jacket rating
- Straight connector configuration
- Designed for servers, computers, network switches, UPS systems and PDUs
- UL Listed, cUL Listed and CSA certified
- RoHS and REACH compliant
- Lifetime limited warranty
Specifications :
| SpecificationDetails | |
|---|
| Manufacturer | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | P005-002-AWH |
| Product Type | Heavy-Duty PDU Power Cord |
| Cable Length | 2 ft. (0.61 m) |
| Connector A | IEC-320-C14 Male |
| Connector B | IEC-320-C13 Female |
| Connector Configuration | Male-to-Female |
| Voltage Rating | 100-250 VAC |
| Current Rating | 15A |
| Wire Gauge | 14 AWG |
| Number of Conductors | 3 |
| Cord Type | SJT |
| Outer Cable Diameter | 9.3 mm |
| Cable Jacket Material | PVC |
| Cable Jacket Color | White |
| Connector Color | White |
| Connector Style | Straight |
| Cable Jacket Rating | VW-1 |
| Compatible Equipment | Server, Computer, Network Switch, UPS, PDU, Printer, Monitor/HDTV |
| Compliance | RoHS, REACH |
| Certifications | UL Listed, cUL Listed, CSA Certified |
