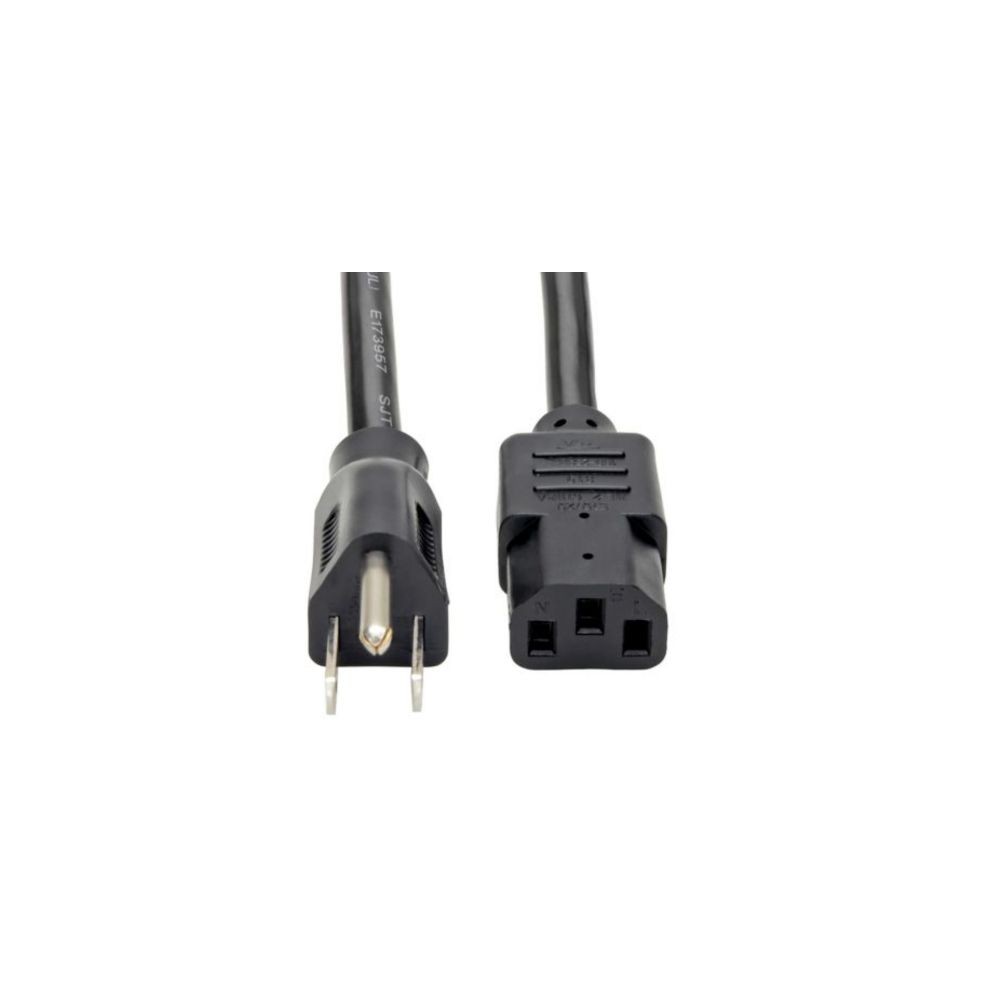

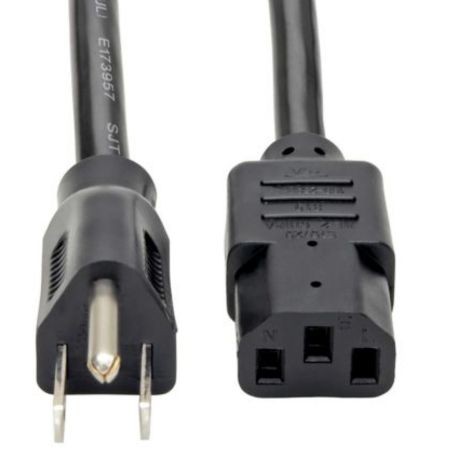

Eaton P007-006 Tripp Lite 6ft Computer Power Cord NEMA 5 15P C13 Heavy Duty
Overview
The Eaton P007-006 is a heavy-duty computer power cord with a NEMA 5-15P plug and IEC 320-C13 connector. It is designed for computers, servers, monitors, printers, PDUs, and UPS systems requiring a standard C13 equipment connection.
The cord uses 14 AWG, three-conductor SJT construction and is rated for 15A at 125VAC. Its 6 ft length provides flexible equipment placement while the heavier 14 AWG conductor supports higher-power equipment applications.
The straight NEMA 5-15P-to-C13 configuration is intended for compatible equipment with an IEC C14 inlet and a suitable 5-15R AC source. It should not be used for loads exceeding 15A or equipment requiring a different connector or electrical rating.
Key Features
- 15A, 125VAC rating supports compatible equipment loads
- 14 AWG SJT construction supports higher-power equipment
- NEMA 5-15P to C13 provides standard AC connectivity
- 6 ft length provides flexibility for equipment placement
- VW-1 PVC jacket supports durable cable construction
Specifications
| Specification | Value |
|---|
| Brand | Eaton |
| Part Number | P007-006 |
| Product Type | Heavy-duty computer power cord |
| Connector A | NEMA 5-15P |
| Connector B | IEC 320-C13 |
| Current Rating | 15A |
| Voltage Rating | 125VAC |
| Cable Length | 6 ft (1.83 m) |
| Wire Gauge | 14 AWG |
| Number of Conductors | 3 |
| Cord Type | SJT |
| Outer Cable Diameter | 9.3 mm |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | VW-1 |
| Cable Color | Black |
| Connector Color | Black |
| Connector Style | Straight |
| Operating Temperature | -20°C to 60°C |
| Operating Humidity | 10%-65% RH |
| Storage Temperature | -20°C to 60°C |
| Device Compatibility | PDU, Printer, Server, Monitor/HDTV, Computer, UPS |
| Certifications | UL Listed, cUL Listed |
| Compliance | RoHS |
