Overview

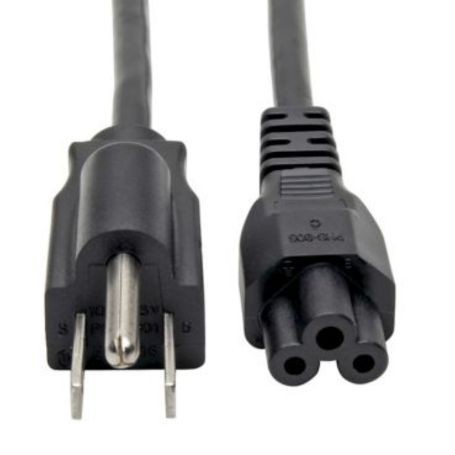

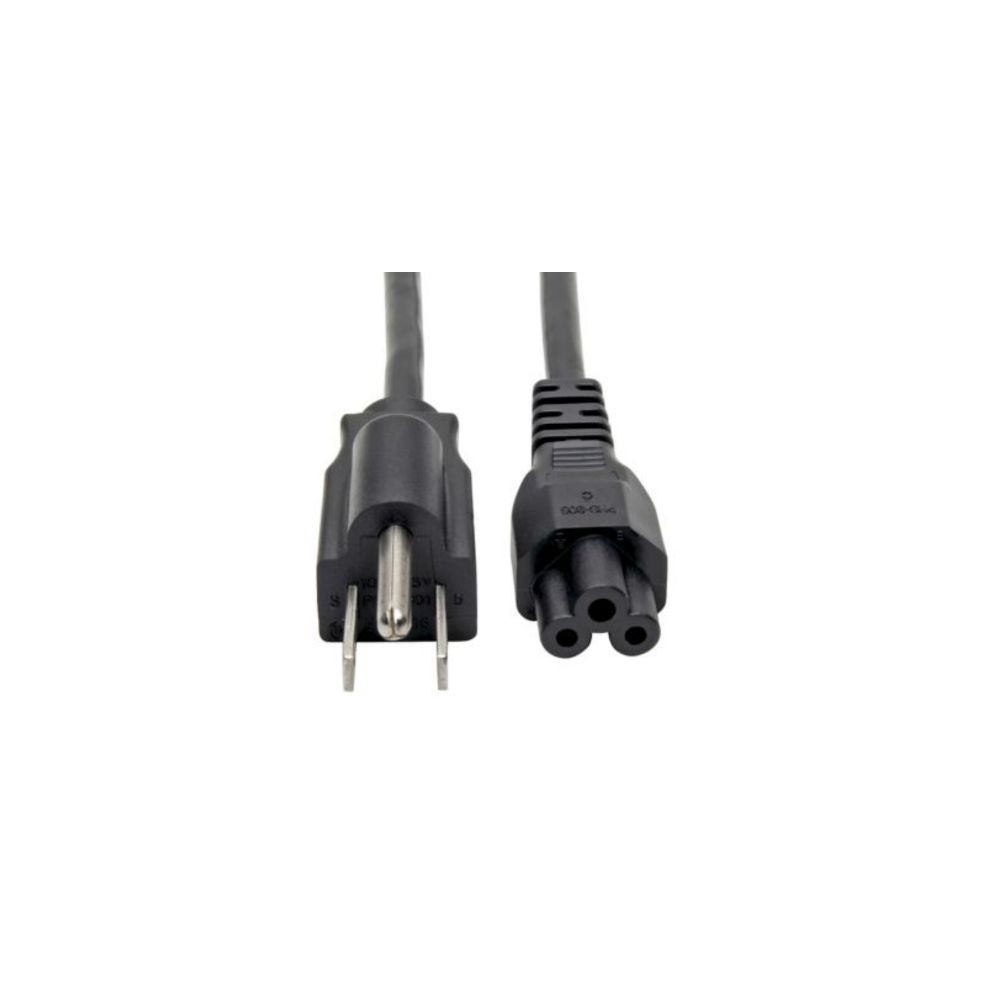

The Eaton Tripp Lite P013-010 is a 10-foot (3.05 m) AC power cord designed to connect compatible equipment with an IEC-320-C5 three-slot power inlet to a North American AC outlet, surge protector, UPS system or PDU. It uses a NEMA 5-15P plug on the AC side and an IEC-320-C5 connector on the device side.
Connectivity
The P013-010 has a NEMA 5-15P male plug at one end and an IEC-320-C5 female connector at the other. The C5 connector is commonly used with compatible laptop and notebook power adapters and other equipment equipped with a matching C6 inlet.
Power and Construction
The cord uses 18 AWG SVT construction and is specified for 125V AC operation. The 10-foot length provides additional reach between an AC receptacle and connected equipment, making it suitable as a replacement for a worn or missing compatible power cord.
Applications
The manufacturer identifies the P013-010 for use with laptop and notebook computers and other compatible devices with a three-slot C6 inlet. Applications also include certain portable projectors, desktop computers, monitors or HDTVs, UPS systems and PDUs where the NEMA 5-15P-to-C5 connection is appropriate.
Key Features
- 10-foot (3.05 m) cable length
- NEMA 5-15P AC plug to IEC-320-C5 device connector
- 18 AWG SVT power cord construction
- 125V AC voltage rating
- Black replacement power cord for compatible equipment
DC Supplies Product Note
Before ordering, verify that the equipment uses an IEC-320-C6 inlet and that a NEMA 5-15P connection is appropriate for the intended AC supply. The P013-010 is a power cord rather than a power adapter or voltage converter.
Specifications
| Specification | Details |
|---|
| Brand | Eaton Tripp Lite |
| Part Number / MPN | P013-010 |
| Product Type | AC Power Cord |
| Cable Type | Power Cord |
| Connector 1 | NEMA 5-15P |
| Connector 2 | IEC-320-C5 |
| Length | 10 ft. (3.05 m) |
| Wire Gauge | 18 AWG |
| Cord Type | SVT |
| Voltage Rating | 125V AC |
| Current Specification | 10A product designation |
| Number of Conductors | 3 |
| Color | Black |
| Connector Style | Straight |
| Intended Application | Powering compatible devices |
| Device Compatibility | Laptop, computer, projector, monitor/HDTV, UPS, PDU |
| Operating Temperature | -20°C to 60°C |
| Country/Region | North America |
| UPC | 037332180667 |
| Warranty | Lifetime limited warranty |
| Compliance | RoHS |
Package Contents
The package includes one P013-010 10-foot NEMA 5-15P to C5 power cord.
FAQs
What connectors are on the P013-010?
The cord has a NEMA 5-15P male AC plug on one end and an IEC-320-C5 connector on the equipment end.
How long is the P013-010?
The cable is 10 feet (3.05 m) long.
What equipment can use this power cord?
It is designed for compatible equipment with an IEC-320-C6 inlet, including laptops and notebook computers. The manufacturer also identifies computers, projectors, monitors/HDTVs, UPS systems and PDUs among supported application types.
Does the P013-010 convert voltage?
No. It is a power cord and does not function as a voltage converter or power adapter.
What is the wire gauge?
The P013-010 uses 18 AWG SVT construction.
