Overview

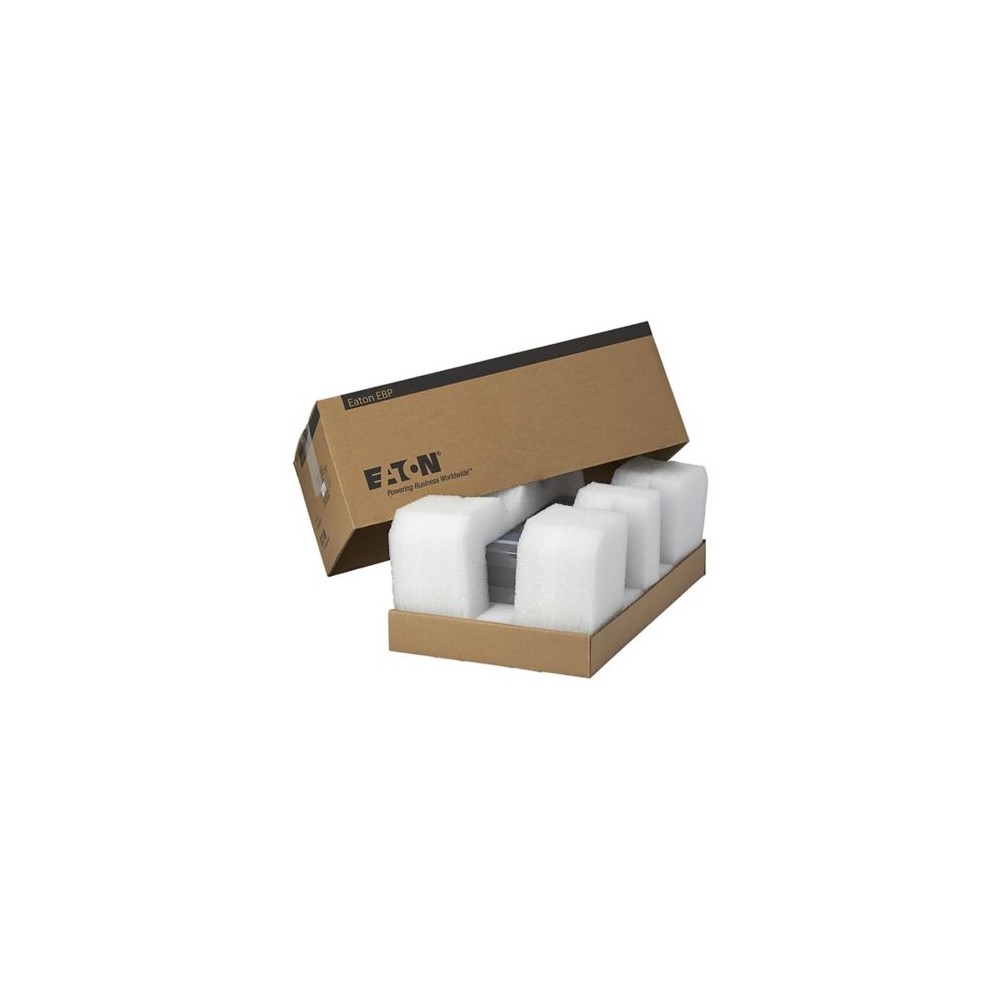

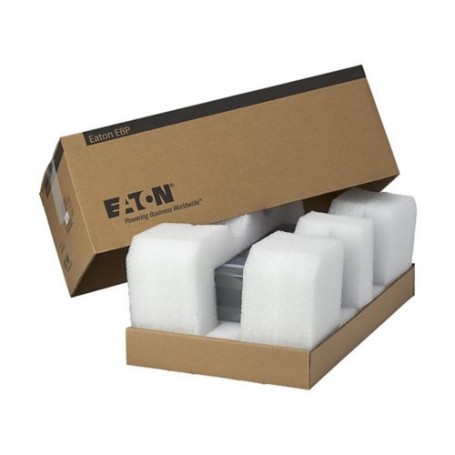

The Eaton Tripp Lite EBP-1603 is a genuine replacement battery pack for compatible Eaton PW9130 1500VA 120V tower UPS systems. It is specified for the PW9130L1500T-XL and PW9130i1500T-XL UPS models and replaces the internal battery assembly used by these systems.
The EBP-1603 is a complete battery pack rather than an external extended battery module. Eaton identifies this part number as the replacement internal battery for the specified 9130 tower UPS models.
UPS Compatibility
Eaton's UPS battery selector identifies EBP-1603 as the replacement battery for the PW9130L1500T-XL and PW9130i1500T-XL. Eaton's 9130 documentation also identifies EBP-1603 as the replacement internal battery for these 1500VA tower models.
Because the EBP-1603 is model-specific, compatibility should be confirmed against the exact UPS model number before ordering. It should not be substituted based solely on UPS capacity or physical appearance.
Battery Configuration
The EBP-1603 is specified as a 48V DC UPS battery pack. Distributor technical data identifies the battery capacity as 9Ah and the pack as containing one battery pack assembly. The replacement assembly is intended to restore the internal battery system of the compatible PW9130 tower UPS.
Key Features
- Genuine Eaton replacement battery pack for compatible PW9130 UPS systems
- Designed for PW9130 1500VA 120V tower UPS models
- 48V DC battery pack configuration
- 9Ah battery capacity specification
- Designed as an internal UPS battery replacement rather than an external EBM
Applications
The EBP-1603 is used to replace the internal battery assembly in compatible Eaton PW9130 1500VA 120V tower UPS systems. It is intended for UPS maintenance and battery replacement where the installed battery pack has reached the end of its service life or requires replacement.
DC Supplies Product Note
Verify the exact UPS model before purchasing this battery pack. Eaton specifically lists EBP-1603 for the PW9130L1500T-XL and PW9130i1500T-XL tower UPS models. Eaton assigns different EBP part numbers to other PW9130 capacities and configurations, so a different 9130 model should not be assumed compatible solely because it belongs to the same product family.
Specifications
| Specification | Details |
|---|
| Brand | Eaton Tripp Lite |
| Part Number / MPN | EBP-1603 |
| Product Type | UPS Replacement Battery Pack |
| Product Application | Internal replacement battery |
| Compatible UPS Series | Eaton 9130 |
| Compatible UPS Models | PW9130L1500T-XL; PW9130i1500T-XL |
| Compatible UPS Capacity | 1500VA |
| Compatible UPS Input | 120V |
| Battery Pack Output Voltage | 48V DC |
| Battery Capacity | 9Ah |
| Packaged Quantity | 1 battery pack |
| Dimensions | 18.37 x 12.75 x 6.75 in. |
| Approximate Weight | 25 lb. |
| Product Width | 18.4 in. approximately |
| Product Height | 6.8 in. approximately |
| Product Depth | 12.8 in. approximately |
FAQs
Which UPS models use the EBP-1603?
Eaton identifies EBP-1603 as the replacement battery for the PW9130L1500T-XL and PW9130i1500T-XL 1500VA 120V tower UPS models.
Is the EBP-1603 an external battery module?
No. It is a replacement internal battery pack for compatible PW9130 tower UPS systems. Eaton lists separate external battery modules for applicable 9130 models.
What is the voltage of the EBP-1603 battery pack?
The battery pack is specified with a 48V DC output.
What is the battery capacity?
Available distributor technical specifications identify the battery capacity as 9Ah.
Can this battery be used in another PW9130 model?
Compatibility should not be assumed. Eaton assigns different replacement battery part numbers to different PW9130 capacities and configurations. The exact UPS model should be checked before ordering.
What are the dimensions of the replacement pack?
Eaton's UPS battery selector lists dimensions of 18.37 inches long by 12.75 inches wide by 6.75 inches high, with a weight of 25 lb.
