Detailed Specifications

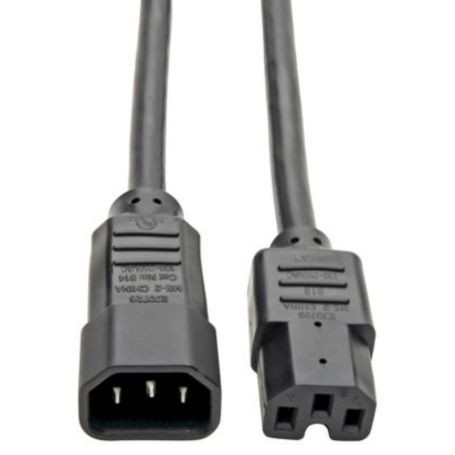

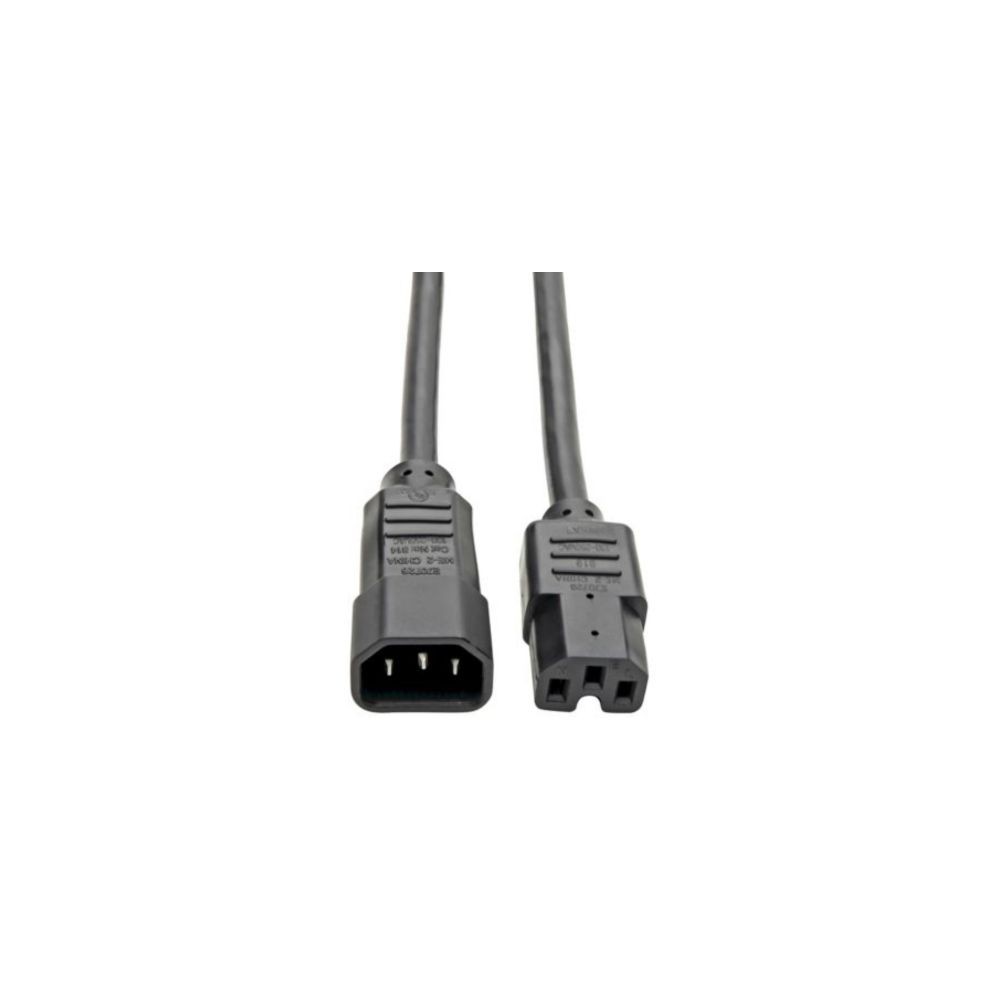

Eaton P018-002 Tripp Lite 2ft Power Cord C14 C15 Heavy Duty 15A 250V
Overview
The Eaton Tripp Lite P018-002 is a 2 ft heavy-duty power cord with IEC 60320 C14 and C15 connectors. It is intended for compatible PoE network switches and other equipment with a C16 power inlet, connecting them to a PDU or UPS.
The cord uses 14 AWG, 3-conductor SJT cable and is rated 15A at 100-250VAC. Its 2 ft length is suited to short rack connections where minimizing excess cable is important.
Use it only with equipment and power-distribution hardware having compatible C14/C15 interfaces and suitable electrical ratings.
Key Features
- 15A, 100-250VAC rating supports compatible equipment
- C14-to-C15 connectors support C16 inlet equipment
- 14 AWG, 3-conductor SJT cable supports higher power
- 2 ft length reduces excess cable in rack installations
- Black jacket provides straightforward cable identification
Specifications
| Specification | Verified Value |
|---|
| Brand | Eaton Tripp Lite |
| Part Number | P018-002 |
| Product Type | Power Cord |
| Current Rating | 15 A |
| Voltage Rating | 100-250 VAC |
| Cable Length | 2 ft (0.61 m) |
| Wire Gauge | 14 AWG |
| Number of Conductors | 3 |
| Cable Type | SJT |
| Input Connector | IEC 60320 C14 |
| Output Connector | IEC 60320 C15 |
| Cable Jacket Color | Black |
| Cable Jacket Material | PVC |
| Outer Cable Diameter | 9.2 mm |
| Operating Temperature | -20°C to 60°C |
| Certifications | UL Listed, cUL Listed |
| Compatible Equipment | UPS, PDU, Network Switch |
