Detailed Specifications

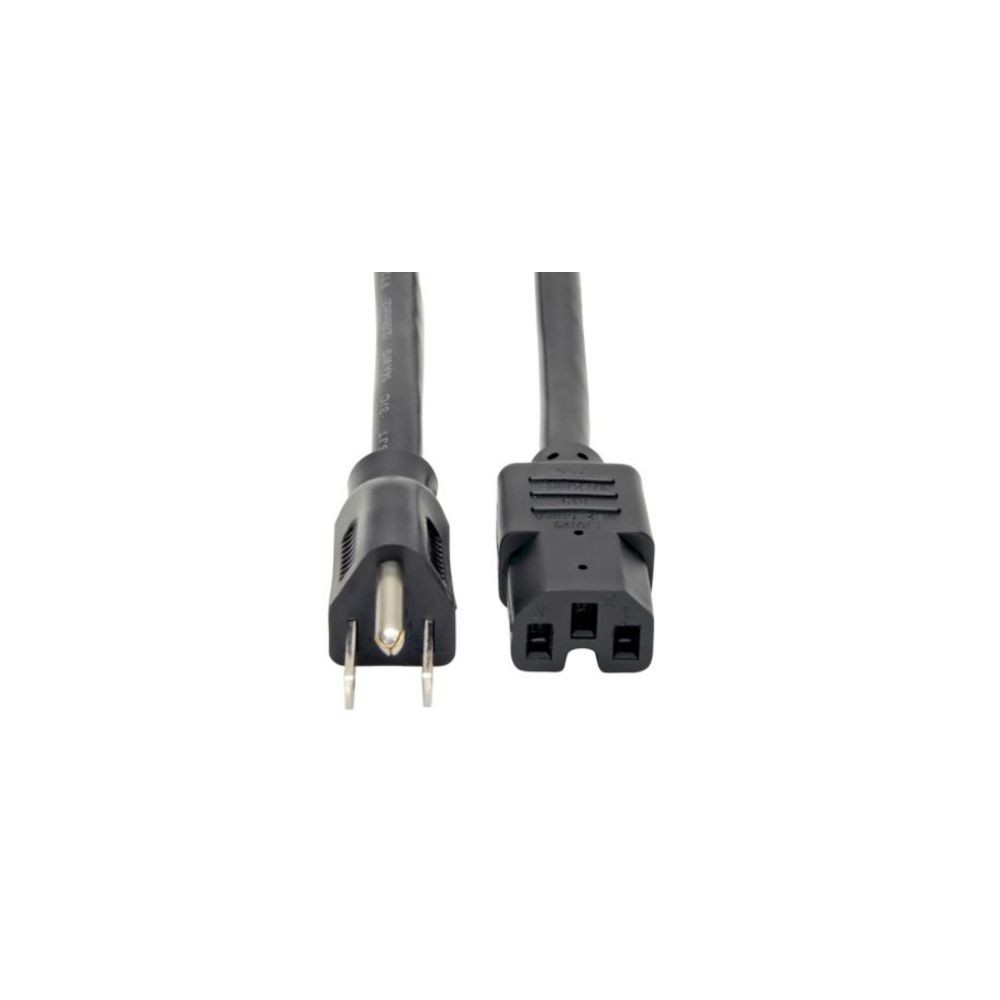

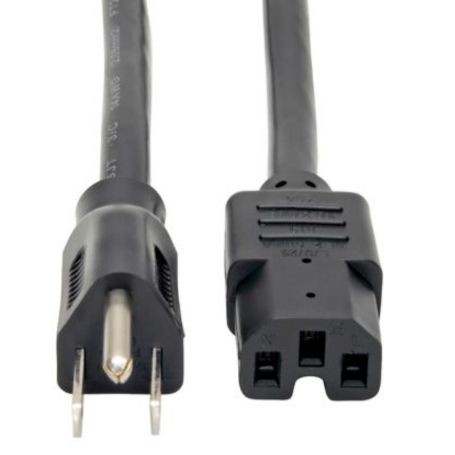

Eaton P019-004 Tripp Lite 4ft Power Cord NEMA 5 15P to C15 Heavy Duty
Overview
The Eaton Tripp Lite P019-004 is a 4 ft heavy-duty power cord with a NEMA 5-15P plug and IEC 60320 C15 connector. It connects compatible network hardware and other equipment with C16 power inlets to a 5-15R wall outlet, PDU, or UPS.
It is rated 15A at 125VAC and uses 14 AWG, 3-conductor SJT cable. The C15 connector is intended for equipment requiring a higher-temperature-rated connector, including compatible PoE network switches.
Use it where the equipment requires an IEC C15 connection and the power source provides a compatible NEMA 5-15R receptacle. It should not be substituted for C13, C19, or other connector configurations.
Key Features
- 15A, 125VAC rating supports compatible network equipment
- NEMA 5-15P to C15 connects compatible high-temperature devices
- 14 AWG SJT cable supports higher-power equipment loads
- 4 ft length provides practical equipment placement flexibility
- Black PVC jacket improves cable identification in power systems
Specifications
| Specification | Verified Value |
|---|
| Brand | Eaton Tripp Lite |
| Part Number | P019-004 |
| Product Type | Power Cord |
| Current Rating | 15 A |
| Voltage Rating | 125 VAC |
| Cable Length | 4 ft (1.22 m) |
| Wire Gauge | 14 AWG |
| Number of Conductors | 3 |
| Cable Type | SJT |
| Input Connector | NEMA 5-15P |
| Output Connector | IEC 60320 C15 |
| Cable Jacket Material | PVC |
| Cable Jacket Color | Black |
| Cable Jacket Rating | FT2 |
| Outer Cable Diameter | 9.2 mm |
| Operating Temperature | -20°C to 60°C |
| Certifications | UL Listed, cUL Listed |
| Compliance | RoHS |
