Detailed Specifications

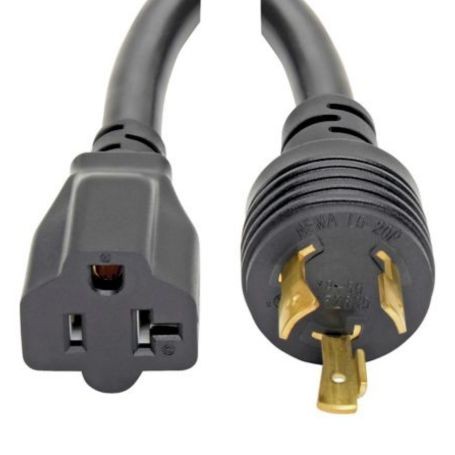

Eaton P046-06N-T Tripp Lite 6inch Power Cord Adapter NEMA L5 20P NEMA 5 15R
Overview

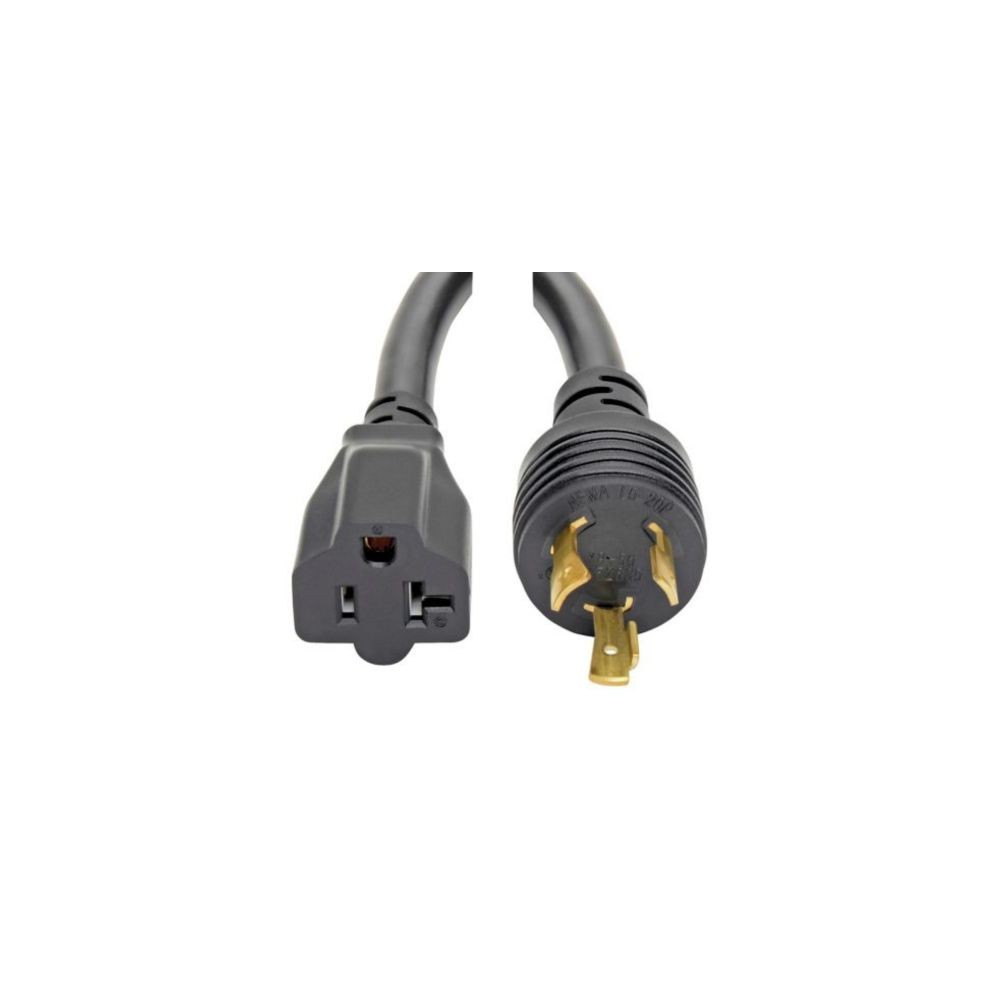

The Eaton Tripp Lite P046-06N-T is a 6-inch heavy-duty power adapter with a locking NEMA L5-20P plug and a NEMA 5-15/20R receptacle. It is designed to connect equipment fitted with a standard NEMA 5-15P or 5-20P plug to a compatible L5-20R power source.
The adapter is rated 20A at 125VAC and uses 12 AWG, 3-conductor SJT cable. The locking L5-20P connection helps maintain a secure connection in rack and data-center environments.
Use it where the source provides a compatible NEMA L5-20R connection and the connected equipment uses a NEMA 5-15P or 5-20P plug. It should not be used where a different connector or electrical rating is required.
Key Features
- 20A, 125VAC rating supports compatible equipment
- Locking L5-20P helps prevent accidental disconnection
- 12 AWG, 3-conductor SJT cable supports heavy-duty use
- 6-inch length minimizes excess cable in rack installations
- 5-15/20R receptacle accepts compatible straight-blade plugs
Specifications
| Specification | Verified Value |
|---|
| Brand | Eaton Tripp Lite |
| Part Number | P046-06N-T |
| Product Type | Extension Cord / Power Adapter |
| Current Rating | 20 A |
| Voltage Rating | 125 VAC |
| Cable Length | 0.5 ft (6 in / 15.24 cm) |
| Wire Gauge | 12 AWG |
| Number of Conductors | 3 |
| Cable Type | SJT |
| Input Connector | NEMA L5-20P |
| Output Connector | NEMA 5-15/20R |
| Connector Style | Straight |
| Locking Connector | Yes |
| Cable Jacket Material | PVC |
| Cable Jacket Color | Black |
| Outer Cable Diameter | 11.2 mm |
| Operating Temperature | -10°C to 60°C |
| Certifications | UL Listed, cUL Listed |
| Compliance | RoHS |
