Detailed Specifications
Eaton P018-003-ABL Tripp Lite 3ft Power Cord C14 C15 Heavy Duty 15A
Overview

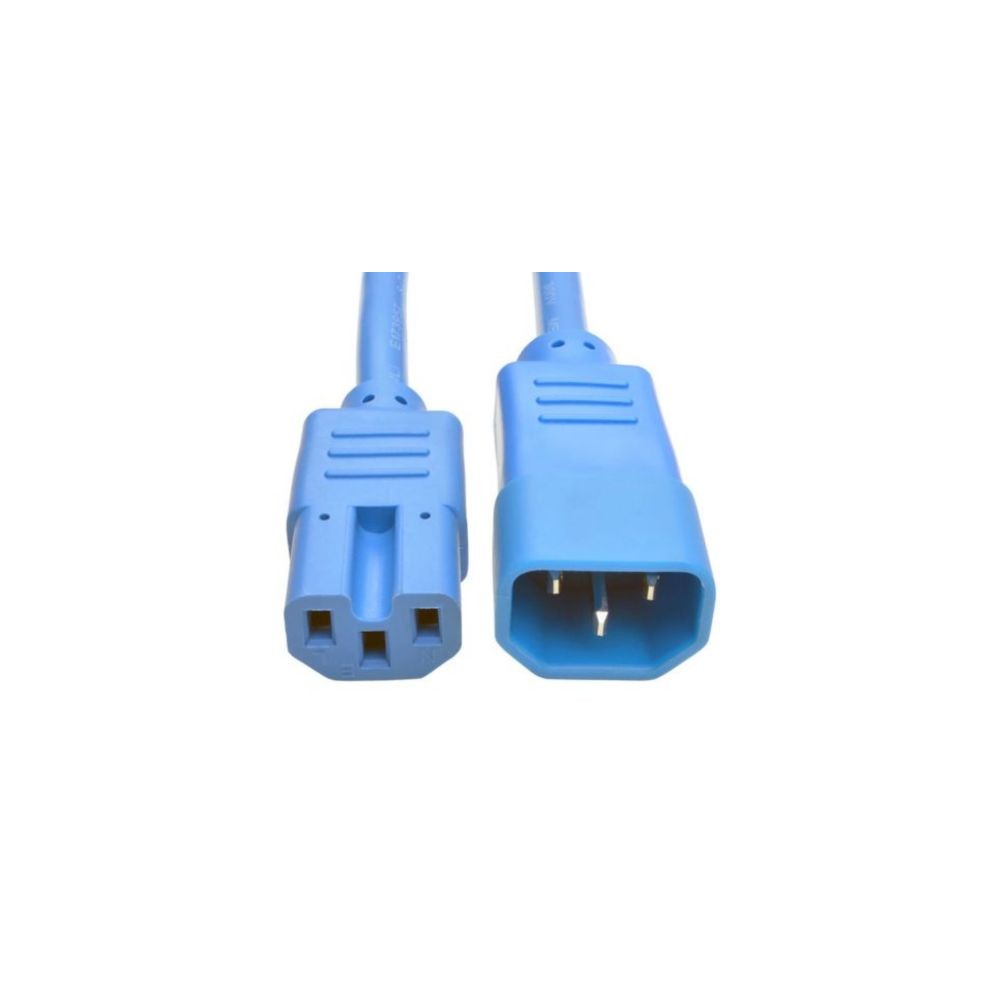

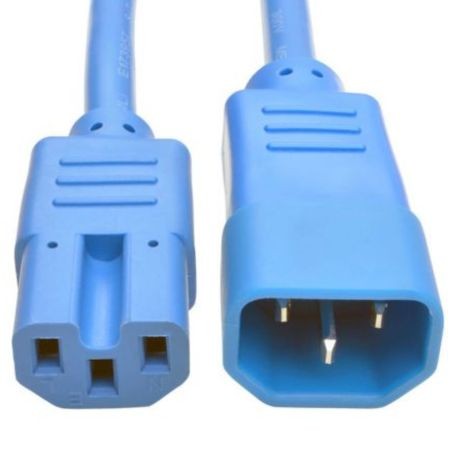

The Eaton Tripp Lite P018-003-ABL is a 3 ft heavy-duty power cord with an IEC 60320 C14 male connector and IEC 60320 C15 female connector. It is intended for compatible servers, network switches, storage equipment, PDUs, and UPS systems.
The cord is rated 15A at 250VAC and uses 14 AWG, 3-conductor SJT cable. Its blue jacket and molded blue ends provide visual identification for power connections in dense rack environments.
Use it where the power source provides a C14 connection and the equipment requires a C15 connection. It is not suitable for equipment requiring C13, C19, or another connector configuration.
Key Features
- 15A, 250VAC rating supports compatible IT equipment
- C14-to-C15 configuration supports high-temperature inlets
- 14 AWG, 3-conductor SJT cable supports heavy-duty use
- Blue jacket improves cable identification in dense racks
- 3 ft length supports short PDU-to-equipment connections
Specifications
| Specification | Verified Value |
|---|
| Brand | Eaton Tripp Lite |
| Part Number | P018-003-ABL |
| Product Type | Power Cord |
| Current Rating | 15 A |
| Voltage Rating | 250 VAC |
| Cable Length | 3 ft (0.91 m) |
| Wire Gauge | 14 AWG |
| Number of Conductors | 3 |
| Cable Type | SJT |
| Input Connector | IEC 60320 C14 |
| Output Connector | IEC 60320 C15 |
| Cable Color | Blue |
| Cable Jacket | SJT |
| Device Compatibility | Network Switch, UPS, PDU |
| Approval | UL Listed |
| Operating Temperature | -20°C to 60°C |
