Eaton P040-012-P30 Tripp Lite 12ft Power Cord C19 NEMA L6 30 Heavy Dut 20A
Overview

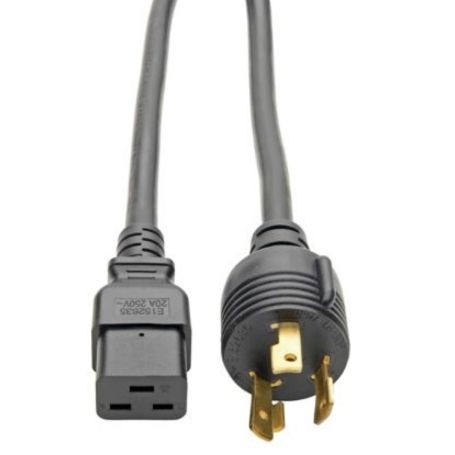

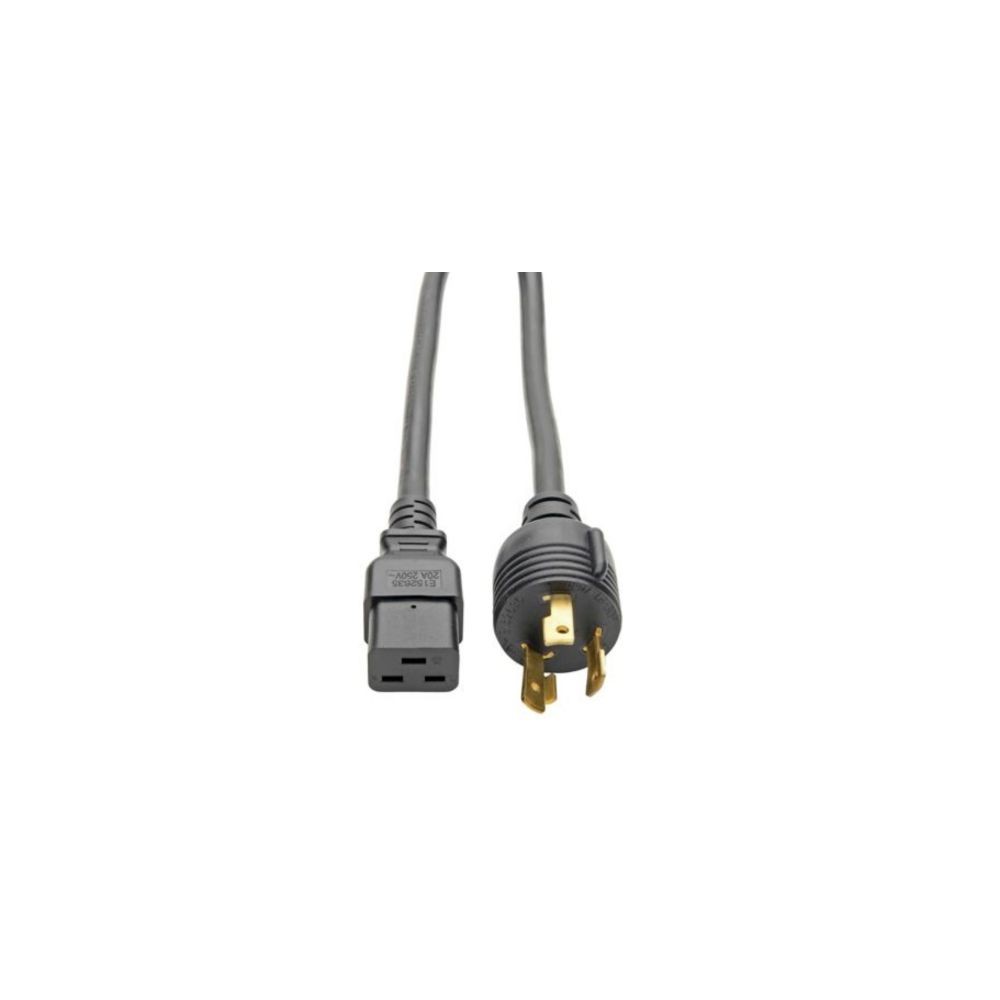

The Eaton Tripp Lite P040-012-P30 is a 12-ft heavy-duty power cord with an IEC 60320 C19 connector and NEMA L6-30P locking plug. It is intended for servers, switches, routers, UPS systems, PDUs, and other high-power network equipment.
The cord uses 12 AWG, three-conductor SJT construction and is rated for 20A with 100-250VAC compatibility. The locking L6-30P connection helps maintain a secure connection in equipment installations.
The 12-ft length is suited to rack and data-center installations where equipment is positioned away from the power source. It should not be used where the equipment requires a different connector configuration or exceeds the verified electrical rating.
Key Features
- 12 AWG construction supports high-power equipment loads
- L6-30P locking plug helps maintain secure power connection
- C19 connector supports compatible high-power IT equipment
- 12-ft length provides flexible rack-level power routing
- 20A, 100-250VAC rating supports demanding installations
Specifications
| Specification | Verified Value |
|---|
| Brand | Eaton Tripp Lite |
| Part Number | P040-012-P30 |
| Product Type | Heavy-Duty Power Cord |
| Cable Length | 12 ft (3.66 m) |
| Current Rating | 20 A |
| Voltage Rating | 100-250 VAC |
| Wire Gauge | 12 AWG |
| Number of Conductors | 3 |
| Cord Type | SJT |
| Connector A | NEMA L6-30P |
| Connector B | IEC 60320 C19 |
| Jacket Material | PVC |
| Jacket Color | Black |
| Outer Cable Diameter | 11 mm |
| Cable Jacket Rating | VW-1 |
| Operating Temperature | -20°C to 60°C |
| Device Compatibility | PDU, Router, Server, UPS, Network Switch |
| Certifications | UL Listed, cUL Listed |
| Compliance | RoHS |
