Eaton P579-006 DisplayPort Extension Cable 6 ft 4K

Overview :

The Eaton P579-006 is a DisplayPort extension cable designed to extend an existing DisplayPort connection between a source device and a display. It is deployed by IT engineers, AV integrators, and workstation administrators who require additional reach without re-terminating or replacing installed cabling. The cable enables flexible positioning of monitors, docking stations, and KVM-connected systems.

From a deployment perspective, the cable supports DisplayPort 1.2 signaling with bandwidth up to 10.8 Gbps, allowing transmission of both digital video and audio over a single link. It supports HDCP content protection and standard DisplayPort features required for secure workstation and display communication. The latching connector on the male end ensures retention in high-movement or vibration-prone environments.

This cable is typically deployed at the edge of user environments such as deskside workstations, engineering labs, and control room consoles. It is also used in rack-adjacent AV deployments where GPU outputs or KVM switches require short-range extension to patch panels or displays. The 1.83 m (6 ft) length aligns with standard structured cabling reach for endpoint connectivity.

Integration is straightforward within DisplayPort ecosystems, supporting interoperability with monitors, GPUs, docking stations, and KVM infrastructure using standard DP interfaces. The male-to-female configuration allows extension of existing cables without introducing active signal conversion or external power requirements. Compatibility with HDCP ensures use in environments where protected content delivery is enforced.

In a practical deployment scenario, the cable can be used to extend a workstation GPU output to a monitor mounted on an adjustable arm or across a desk where the original cable length is insufficient. It is also used in test benches where frequent reconfiguration requires flexible connection points without repeated wear on device ports.

This device should not be used in long-distance signal extension beyond standard passive DisplayPort limits or in environments requiring signal regeneration. It is not suitable for structured cabling runs across rooms or floors where active extenders or fiber-based solutions are required to maintain signal integrity.

Key Features

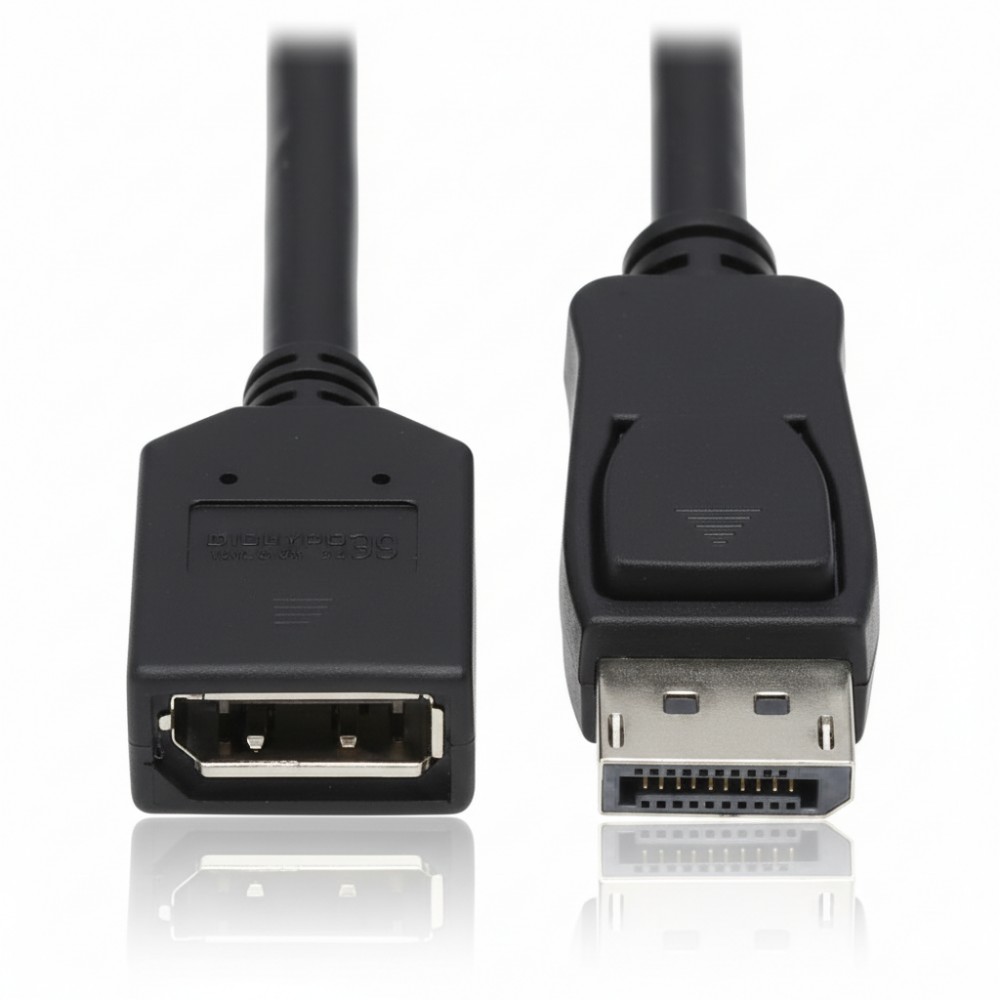

• DisplayPort male to female extension cable
• Supports DisplayPort 1.2 up to 10.8 Gbps
• Latching connector for secure retention
• Carries digital audio and video signals
• 1.83 m cable length for endpoint extension

Technical Specifications
