Detailed Specifications

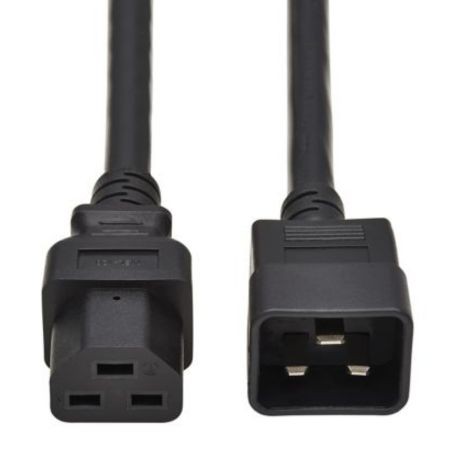

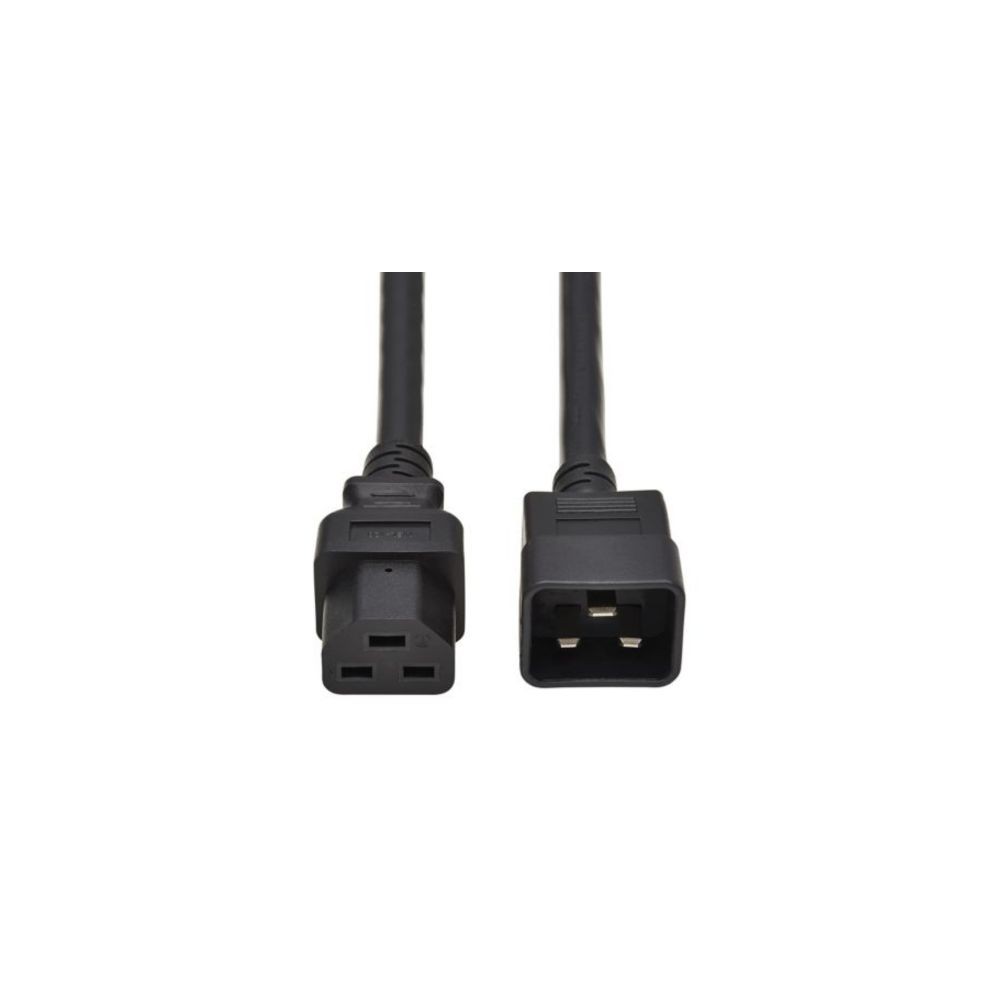

Eaton P035-006 Tripp Lite 6ft Power Cord C20 C21 Heavy Duty 20A 250V
Overview
The Eaton Tripp Lite P035-006 is a 6-ft heavy-duty power cord with IEC 60320 C20 and C21 connectors. It is designed for high-powered network equipment, servers, switches, PDUs, and UPS systems requiring compatible IEC connections.
The cord uses 12 AWG, three-conductor SJT construction and is rated at 20A and 250VAC. The C20-to-C21 configuration is intended for equipment and power-distribution connections using the corresponding IEC C19/C22 interface.
The 6-ft length supports rack-level deployments while limiting excess cable. It should not be used where the equipment requires a different connector configuration or exceeds the verified electrical rating.
Key Features
- 20A, 250VAC rating supports high-power rack equipment
- 12 AWG construction supports demanding power connections
- C20-to-C21 configuration suits compatible IT equipment
- 6-ft length supports flexible rack power routing
- 105°C rating supports high-temperature rack environments
Specifications
| Specification | Verified Value |
|---|
| Brand | Eaton Tripp Lite |
| Part Number | P035-006 |
| Product Type | Heavy-Duty Power Cord |
| Cable Length | 6 ft (1.83 m) |
| Voltage Rating | 250 VAC |
| Current Rating | 20 A |
| Wire Gauge | 12 AWG |
| Number of Conductors | 3 |
| Cord Type | SJT |
| Connector A | IEC 60320 C20 |
| Connector B | IEC 60320 C21 |
| Outer Cable Diameter | 11 mm |
| Jacket Material | PVC |
| Jacket Color | Black |
| Operating Temperature | -20°C to 105°C |
