Detailed Specifications
Eaton P035-005 Tripp Lite 5 ft Power Cord C20 C21 Heavy Duty 20A 250V
Overview

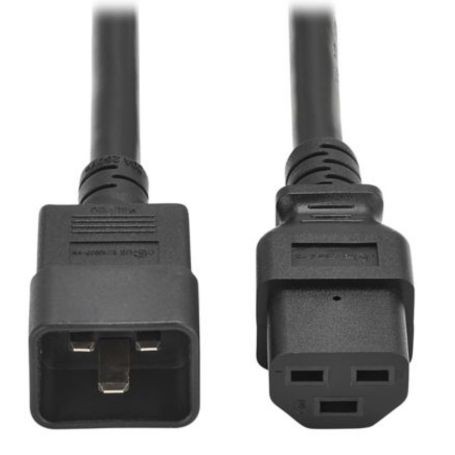

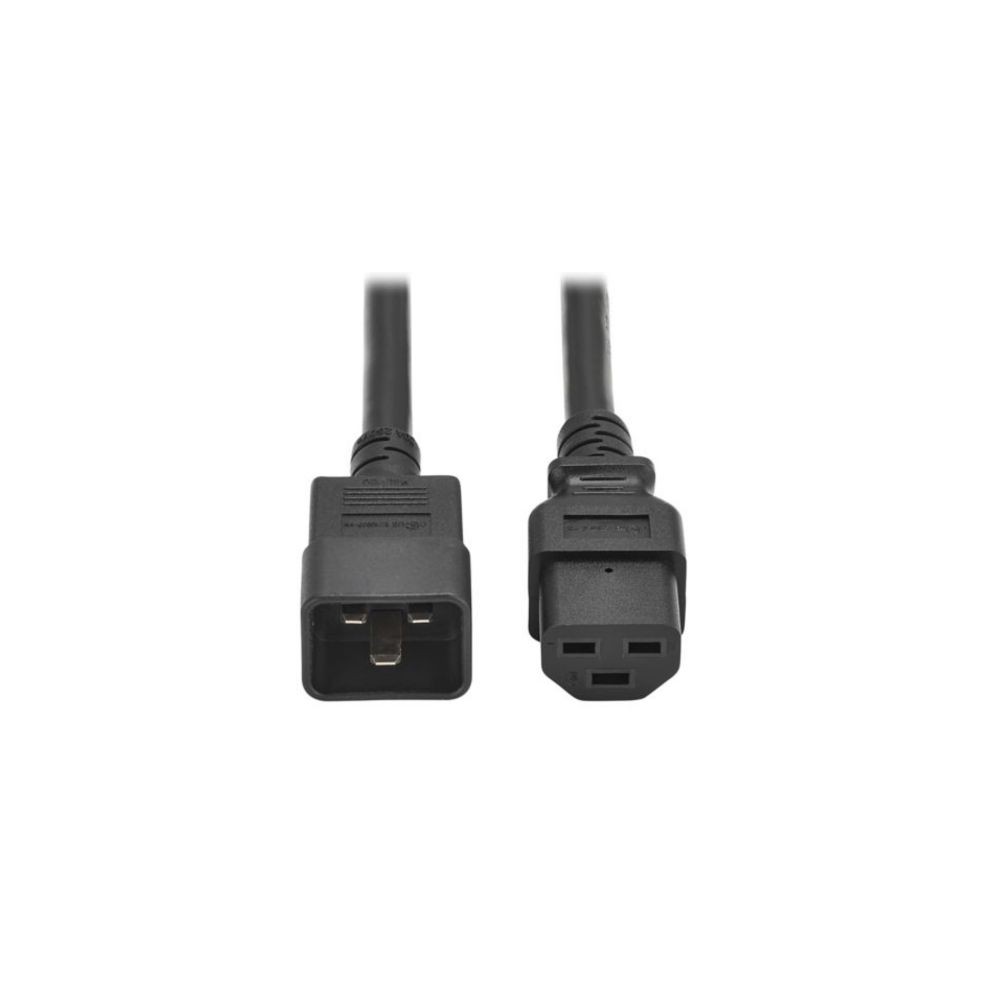

The Eaton Tripp Lite P035-005 is a 5 ft heavy-duty power cord with an IEC 60320 C20 connector on one end and IEC 60320 C21 connector on the other. It is intended for high-power IT equipment and power-distribution applications requiring this connector combination. Eaton's product documentation identifies the P035 series as C20-to-C21 power cords.
The P035-005 is rated 20A at 250VAC and uses 12 AWG, 3-conductor SJT cable. The 5 ft length provides additional routing flexibility in rack and data-center installations.
Use it where the connected equipment and power source specifically require IEC C20/C21 connections and the electrical rating is appropriate. It is not suitable for equipment requiring C13/C14, C19/C20, or other connector configurations.
Key Features
- 20A, 250VAC rating supports high-power IT equipment
- C20-to-C21 connectors support compatible rack equipment
- 12 AWG, 3-conductor SJT cable handles higher loads
- 5 ft length provides practical rack cable-routing flexibility
- Heavy-duty construction suits data-center power distribution
Specifications
| Specification | Verified Value |
|---|
| Brand | Eaton Tripp Lite |
| Part Number | P035-005 |
| Product Type | Heavy-Duty Power Cord |
| Current Rating | 20 A |
| Voltage Rating | 250 VAC |
| Cable Length | 5 ft (1.52 m) |
| Wire Gauge | 12 AWG |
| Number of Conductors | 3 |
| Cable Type | SJT |
| Input Connector | IEC 60320 C20 |
| Output Connector | IEC 60320 C21 |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | FT2; VW-1 |
| Cable Outer Diameter | 11 mm |
| Operating Temperature | -20°C to 105°C |
| Operating Humidity | 10%-65% RH, non-condensing |
