Detailed Specifications

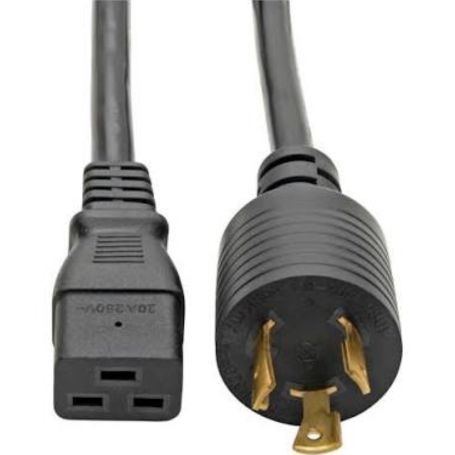

Eaton P040-006 Tripp Lite 6ft Power Cord C19 NEMA L6 20 Heavy Duty 20A
Overview

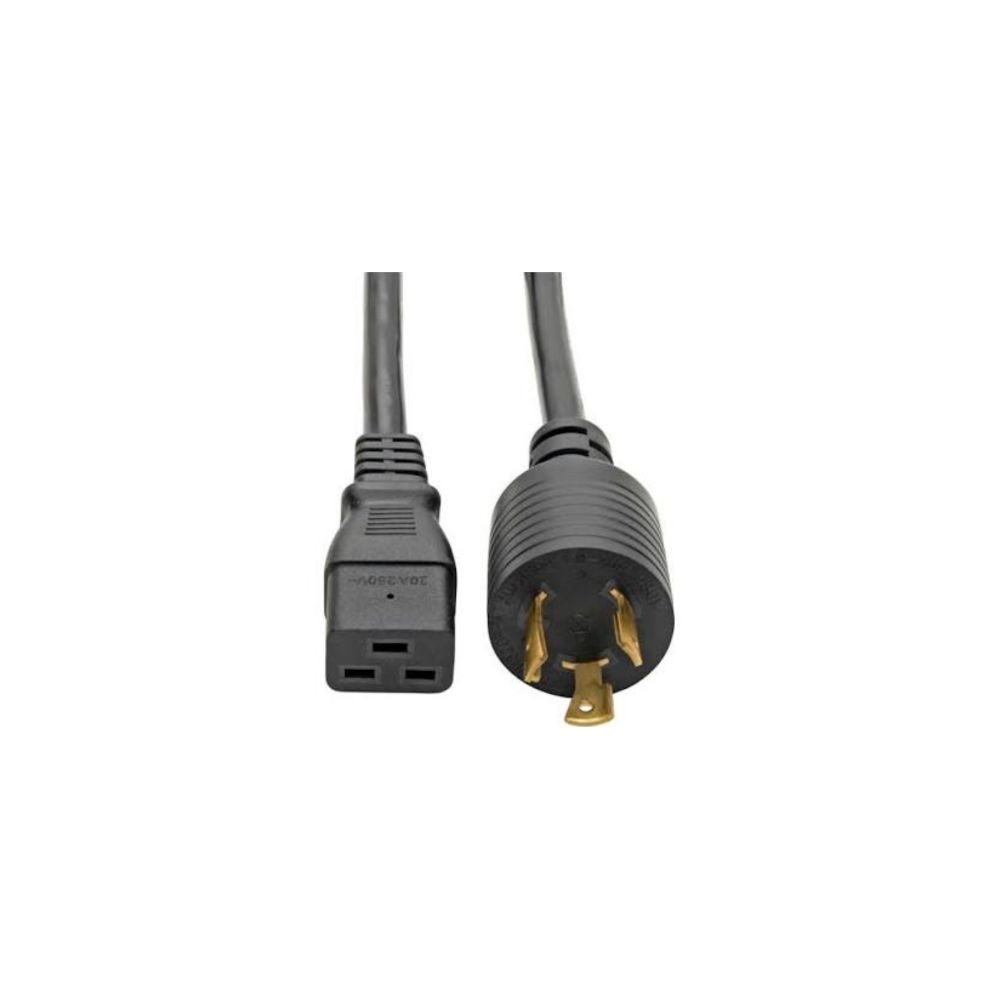

The Eaton Tripp Lite P040-006 is a 6 ft heavy-duty power cord with an IEC 320-C19 female connector and NEMA L6-20P male locking plug. It is designed for servers, network switches, blade server enclosures, PDUs and UPS systems requiring a 20A-class connection.
The cable uses three 12 AWG conductors in SJT construction and is rated for 20A at 100-250VAC. The L6-20P locking connector helps maintain a secure connection, while the 6 ft length provides practical reach between rack equipment and power distribution equipment.
The P040-006 is appropriate where the equipment accepts an IEC C19 connection and the power source provides a compatible NEMA L6-20 receptacle. It should not be used with incompatible connectors or circuits that cannot support the required voltage and current rating.
Key Features
- C19 to L6-20P connection supports high-power rack equipment
- 12 AWG conductors support the 20A electrical rating
- Locking L6-20P plug helps prevent accidental disconnection
- 6 ft length provides flexible rack-level power distribution
- SJT cable with PVC jacket supports heavy-duty deployment
Specifications
| Specification | Details |
|---|
| Brand | Eaton Tripp Lite |
| Part Number | P040-006 |
| Product Type | Heavy-duty power cord |
| Connector A | NEMA L6-20P male |
| Connector B | IEC 320-C19 female |
| Current Rating | 20A |
| Voltage Rating | 100-250VAC |
| Cable Length | 6 ft (1.83m) |
| Wire Gauge | 12 AWG |
| Number of Conductors | 3 |
| Cord Type | SJT |
| Shielding | Unshielded |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | FT2 |
| Outer Cable Diameter | 11mm |
| Cable Color | Black |
| Connector Style | Straight |
| Plug Type | Locking |
| Operating Temperature | -20°C to 90°C |
| Storage Temperature | -20°C to 90°C |
| Operating Humidity | 20%-70% RH |
| Storage Humidity | 20%-80% RH |
| Certifications | UL Listed, cUL Listed |
| Compliance | RoHS |
| Device Compatibility | Server, network switch, router, UPS, PDU |
| Warranty | Lifetime limited warranty |
