Detailed Specifications
Eaton P044-06I Tripp Lite Power Cord Adapter NEMA L5 20R NEMA 5 20P
Overview

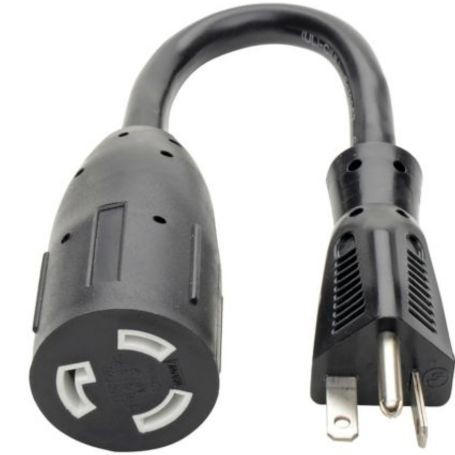

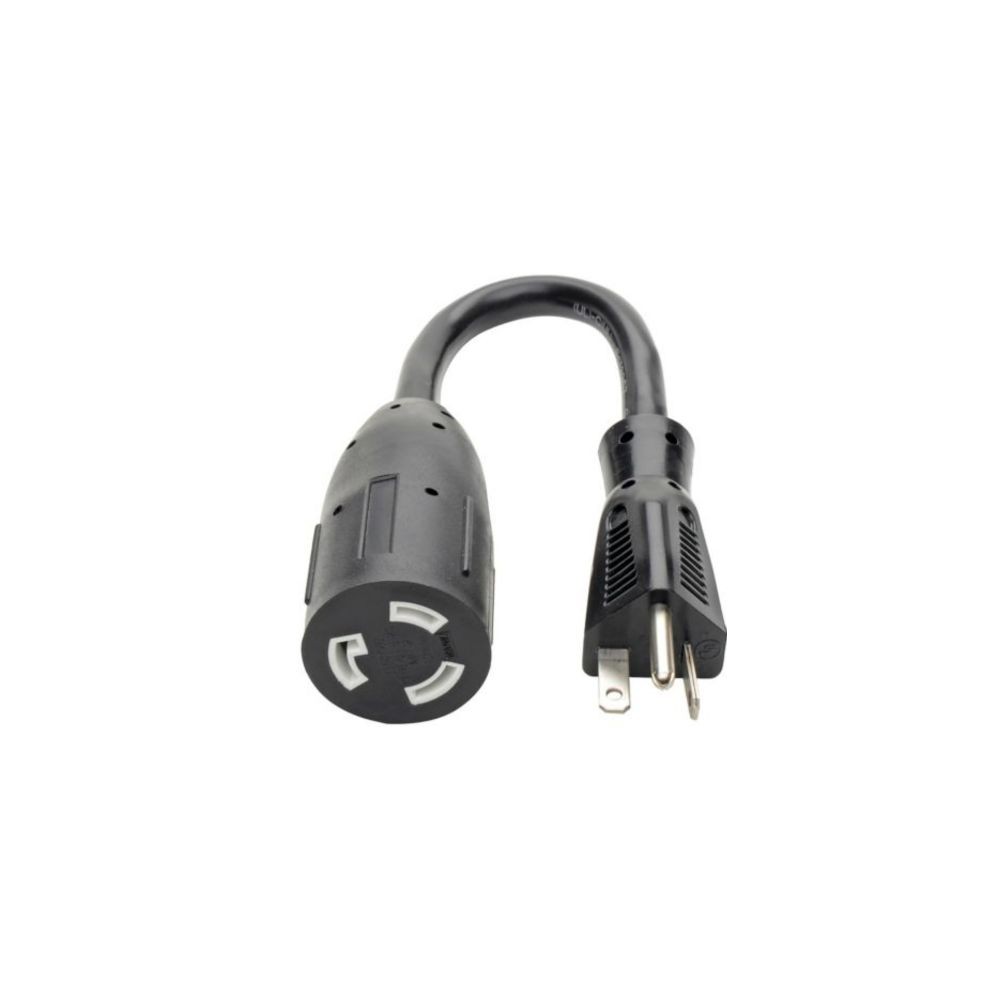

The Eaton P044-06I is a heavy-duty power adapter with a NEMA 5-20P plug and NEMA L5-20R locking receptacle. It provides a direct transition between standard straight-blade 20A power connections and locking L5-20R connections for compatible servers, UPS systems, and PDUs.
The adapter uses 12 AWG, three-conductor SJT cable and is rated for 20A at 125VAC. Its approximately 6-inch length provides a compact connection while minimizing cable clutter in equipment installations.
The locking L5-20R receptacle helps maintain a secure connection and can be useful where accidental disconnection could interrupt equipment operation. It should not be used with equipment or circuits exceeding the 20A rating or with incompatible connector configurations.
Key Features
- Locking L5-20R receptacle helps prevent accidental disconnection
- 20A, 125VAC rating supports compatible high-power equipment
- 12 AWG SJT construction provides a heavy-duty power connection
- 6 in compact length helps minimize cable clutter
- NEMA 5-20P enables connection to straight-blade 20A outlets
Specifications
| Specification | Value |
|---|
| Brand | Eaton |
| Part Number | P044-06I |
| Product Type | Heavy-duty power adapter |
| Connector A | NEMA 5-20P |
| Connector B | NEMA L5-20R |
| Current Rating | 20A |
| Voltage Rating | 125VAC |
| Cable Length | 0.5 ft / 6 in (152.4 mm) |
| Wire Gauge | 12 AWG |
| Number of Conductors | 3 |
| Cord Type | SJT |
| Outer Cable Diameter | 11 mm |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | VW-1 |
| Cable Color | Black |
| Connector Color | Black |
| Connector Style | Straight |
| Locking Feature | NEMA L5-20R locking receptacle |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -20°C to 60°C |
| Operating Humidity | 10%-65% RH |
| Device Compatibility | Server, UPS, PDU |
| Certifications | UL Listed, cUL Listed |
| Compliance | RoHS |
