Detailed Specifications

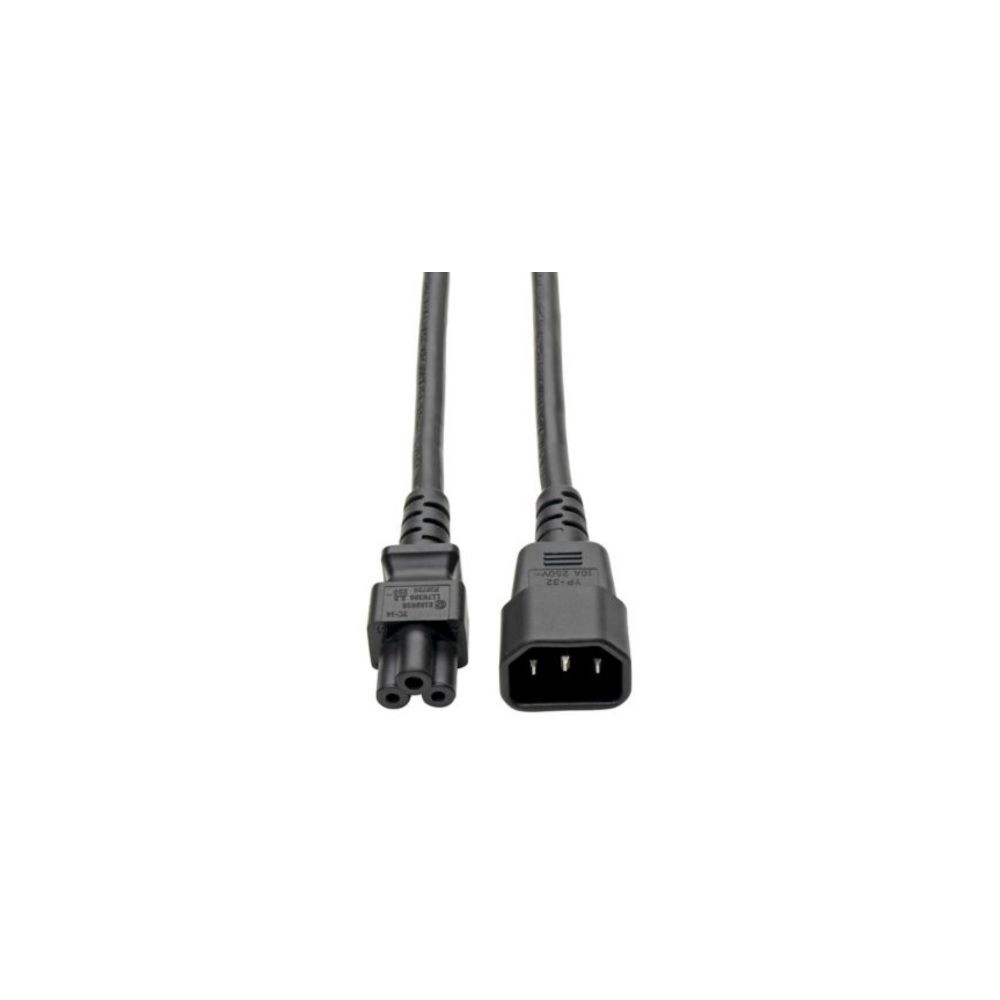

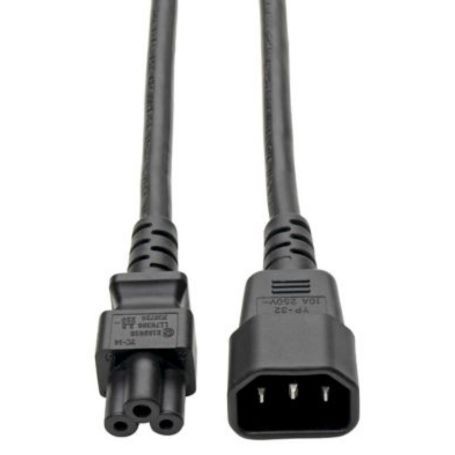

Eaton P014-06N Tripp Lite 6-inch Laptop Power Adapter Cord C14 to C5
Overview
The Eaton Tripp Lite P014-06N is a 6-inch laptop power adapter cord with an IEC 60320 C14 connector on one end and IEC 60320 C5 connector on the other. It is designed for laptops, computers, UPS systems, and PDUs using compatible IEC connections.
Its short 6-inch length is intended for close-proximity power connections, helping reduce excess cable in workstation or equipment deployments. Eaton specifies 18 AWG construction and support for 7A/125V or 2.5A/250V configurations.
The cord is suitable where the connected equipment has an IEC C6 inlet and the power source provides an IEC C13/C14-compatible connection path. It should not be selected for equipment requiring a different connector type or higher current rating.
Key Features
- 6-inch C14-to-C5 cable reduces excess cable length
- Supports laptop and notebook power connections
- 18 AWG construction supports compact power deployments
- Rated up to 2.5A at 250V for compatible applications
- Works with compatible UPS and PDU power connections
Specifications
| Specification | Verified Value |
|---|
| Brand | Eaton Tripp Lite |
| Part Number | P014-06N |
| Product Type | Laptop Power Adapter Cord |
| Cable Length | 6 in. / 152 mm |
| Connector A | IEC 60320 C14 |
| Connector B | IEC 60320 C5 |
| Current Rating | 2.5 A |
| Maximum Input Amps | 7 A |
| Voltage Rating | 250 VAC |
| Voltage Compatibility | 100-250 VAC |
| Wire Gauge | 18 AWG |
| Number of Conductors | 3 |
| Cord Type | SJT |
| Jacket Color | Black |
| Device Compatibility | Laptop, Computer, UPS, PDU |
