Detailed Specifications

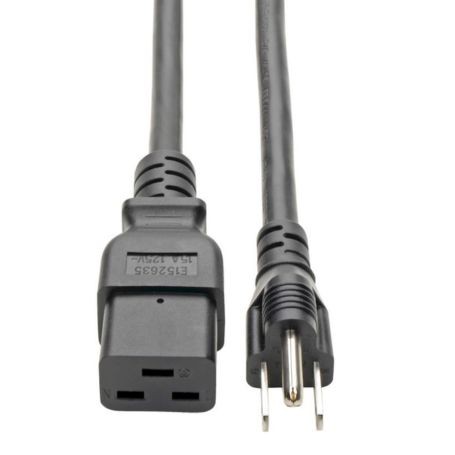

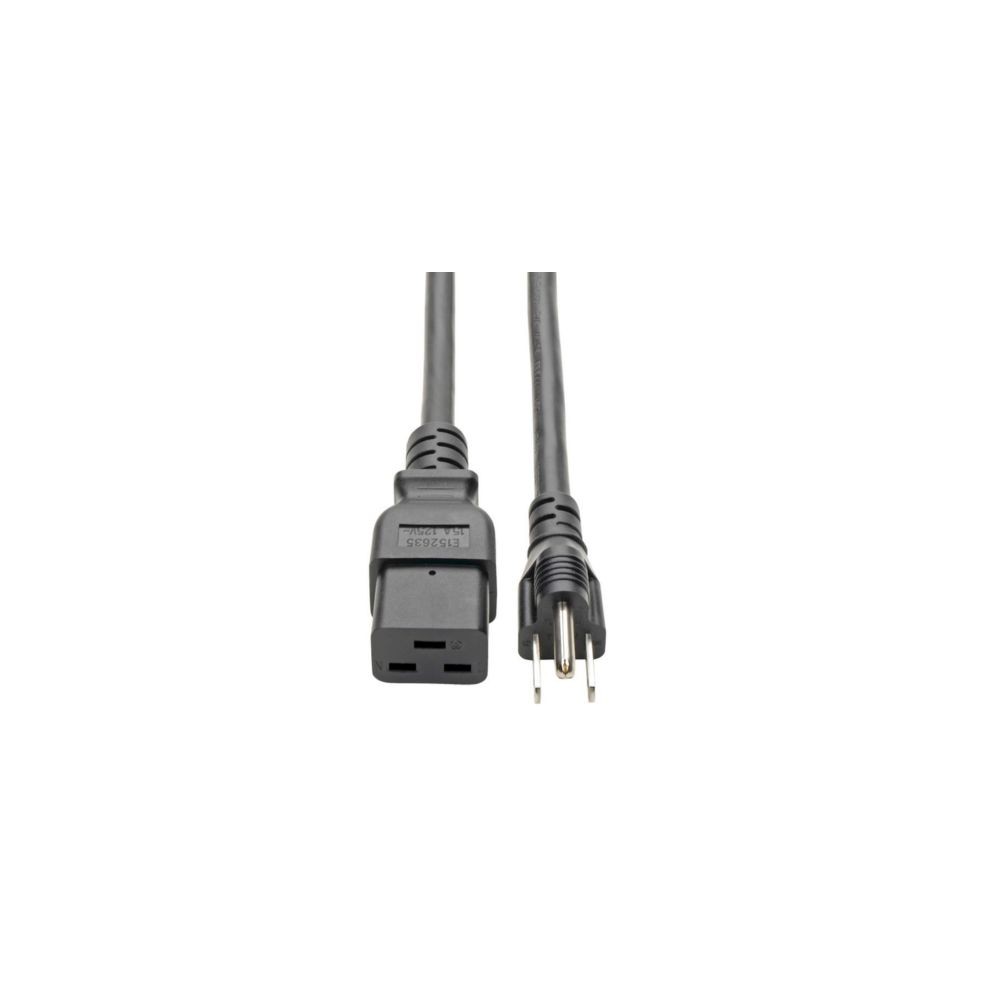

Eaton P034-010 Tripp Lite 10ft Computer Power Cord C19 NEMA 5 15P Heavy Duty
Overview
The Eaton Tripp Lite P034-010 is a heavy-duty computer power cord with an IEC C19 female connector and NEMA 5-15P male plug. It is designed for connecting higher-power servers, computers, monitors, PDUs and UPS equipment to compatible North American AC outlets or power-distribution equipment.
The cable uses three 14 AWG conductors and is rated at 15A and 125VAC. Its 10 ft length provides additional reach for rack and equipment placement, while the PVC-jacketed cable and molded VW-1-rated ends support demanding equipment-power applications.
The P034-010 is appropriate when the equipment requires an IEC C19 connection and the available source is a NEMA 5-15 receptacle. It should not be used on circuits, receptacles or equipment with incompatible connector configurations or electrical ratings.
Key Features
- C19 to NEMA 5-15P connection supports server power deployment
- 14 AWG conductors provide a heavy-duty 15A power path
- 10 ft length provides flexible equipment-to-source positioning
- PVC jacket and VW-1 rating support durable cable deployment
- UL and cUL listings support North American installations
Specifications
| Specification | Details |
|---|
| Brand | Eaton Tripp Lite |
| Part Number | P034-010 |
| Product Type | Heavy-duty computer power cord |
| Connector A | NEMA 5-15P male |
| Connector B | IEC 320-C19 female |
| Current Rating | 15A |
| Voltage Rating | 125VAC |
| Cable Length | 10 ft (3.05m) |
| Wire Gauge | 14 AWG |
| Number of Conductors | 3 |
| Cord Type | SJT / SJTW |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | VW-1 |
| Outer Cable Diameter | 9.3mm |
| Cable Color | Black |
| Connector Style | Straight |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -20°C to 60°C |
| Operating Humidity | 10%-65% RH |
| Storage Humidity | 10%-65% RH |
| Certifications | UL Listed, cUL Listed |
| Compliance | RoHS |
| Device Compatibility | Server, PDU, UPS, computer, monitor/HDTV |
| Warranty | Lifetime limited warranty |
