Detailed Specifications

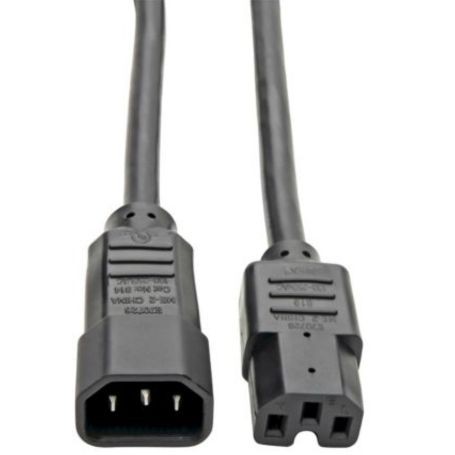

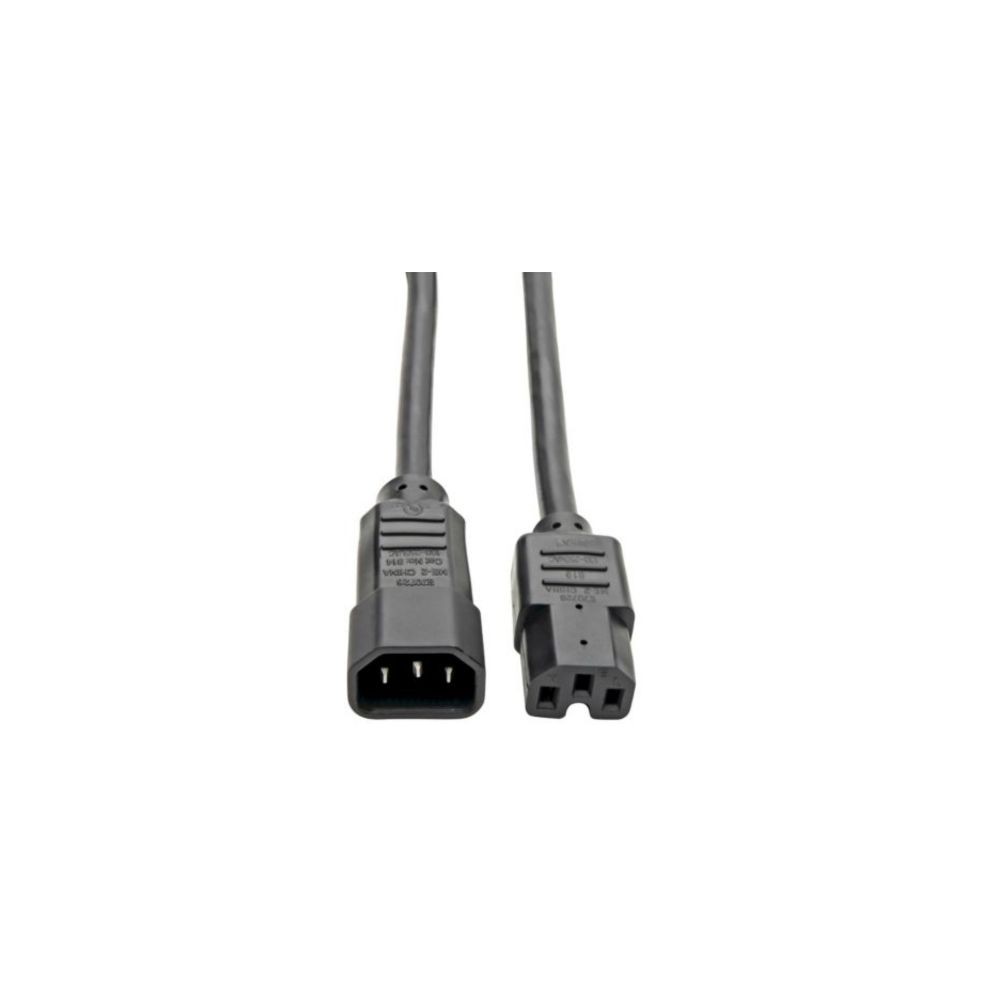

Eaton P018-003 Tripp Lite 3ft Power Cord C14 C15 Heavy Duty 15A 250V
Overview
The Eaton Tripp Lite P018-003 is a 3 ft heavy-duty power cord with IEC 60320 C14 and C15 connectors. It is designed for compatible network switches, PDUs, UPS systems, and other equipment requiring a C15 connection.
The cord is rated 15A at 100-250VAC and uses 14 AWG, 3-conductor SJT cable with a black PVC jacket. The 3 ft length supports short equipment-to-PDU or UPS connections while reducing excess cable.
Use it only where both connected devices accept the specified IEC C14/C15 interfaces and the electrical rating is appropriate. It is not a substitute for C13/C14 or other connector configurations.
Key Features
- 15A, 100-250VAC rating supports compatible equipment
- C14-to-C15 connectors support high-temperature equipment
- 14 AWG, 3-conductor SJT cable supports higher power loads
- 3 ft length reduces excess cable in rack installations
- Black PVC jacket provides clear cable identification
Specifications
| Specification | Verified Value |
|---|
| Brand | Eaton Tripp Lite |
| Part Number | P018-003 |
| Product Type | Power Cord |
| Current Rating | 15 A |
| Voltage Rating | 100-250 VAC |
| Cable Length | 3 ft (0.91 m) |
| Wire Gauge | 14 AWG |
| Number of Conductors | 3 |
| Cable Type | SJT |
| Input Connector | IEC 60320 C14 |
| Output Connector | IEC 60320 C15 |
| Cable Jacket Material | PVC |
| Cable Jacket Color | Black |
| Cable Jacket Rating | VW-1 |
| Outer Cable Diameter | 9.3 mm |
| Operating Temperature | -20°C to 60°C |
| Certifications | UL Listed, cUL Listed |
| Compliance | RoHS |
| Device Compatibility | Network Switch, PDU, UPS |
