Detailed Specifications

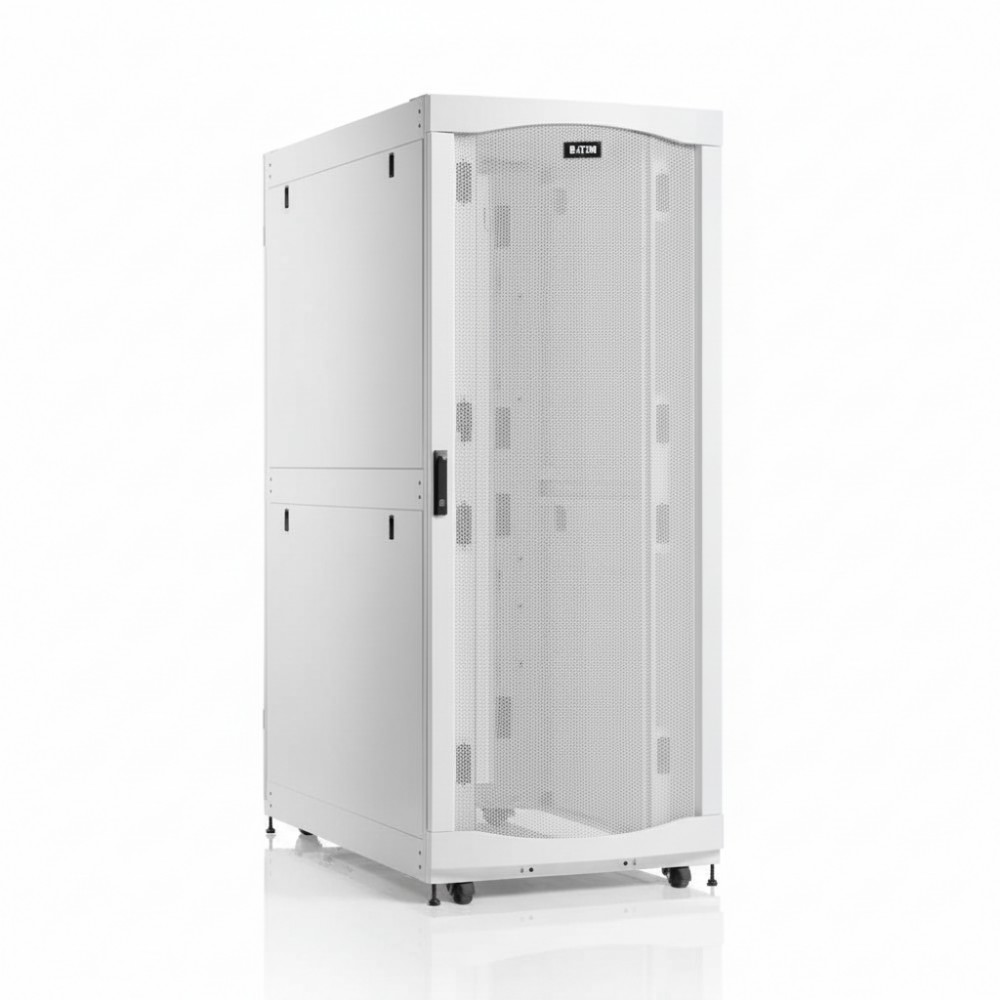

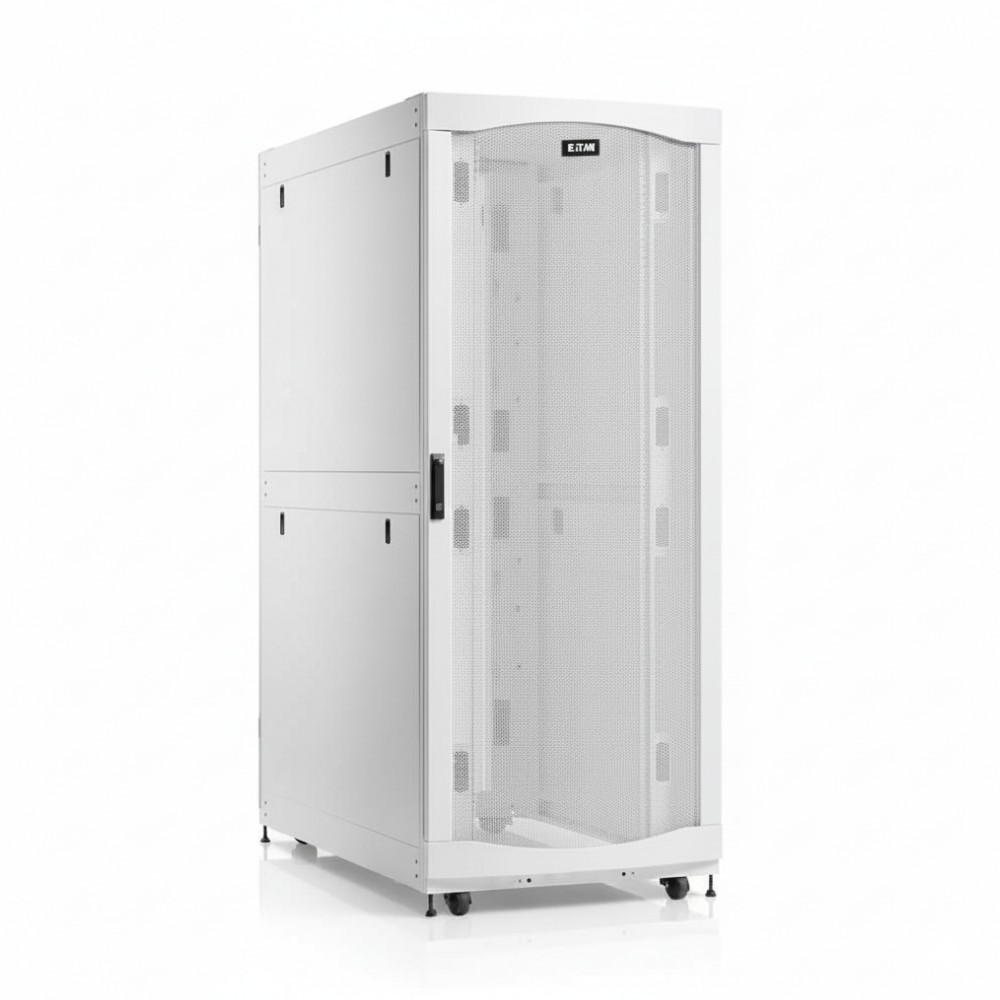

Eaton SRH423254W - Heavy-Duty Server Rack Enclosure
Overview :
The Eaton SRH423254W is a 42U heavy-duty SmartRack enclosure used by data center and AI infrastructure teams to support deep, high-density equipment. It features reinforced steel construction capable of handling large server and storage loads. The extra-deep, extra-wide dimensions allow installation of long server blades, cable trays, and accessories. It is suitable for core data center, AI/ML clusters, or enterprise campus server rooms.
Key Features :
Reinforced 2.5 mm steel frame construction
Extra-deep 1372 mm cabinet depth
Lockable front/rear doors + removable side panels
Pre-installed casters and leveling feet
Specifications :
| Parameter | Value |
|---|
| Brand | Eaton |
| Part Number | SRH423254W |
| Product Type | Heavy-Duty Rack Enclosure |
| Rack Height | 42U |
| Cabinet Depth | 1372 mm (54.0 in) |
| Cabinet Width | 800 mm (31.5 in) |
| Unit Dimensions (H × W × D) | 2032 × 800 × 1473 mm (79.5 × 31.5 × 58.0 in) |
| Unit Weight | 254.0 kg (560 lb) |
| Rolling Load Capacity | 1588 kg (3500 lb) |
| Stationary Load Capacity | 2268 kg (5000 lb) |
| Material | 2.5 mm steel |
| Color / Finish | White powder-coated |
| Doors & Panels | Locking front/rear doors, removable side panels |
| Compliance / Certifications | UL 62368-1, UL 2416, EIA-310-E, CE, RoHS, UKCA |
| Warranty | 5-year limited warranty |
