Detailed Specifications

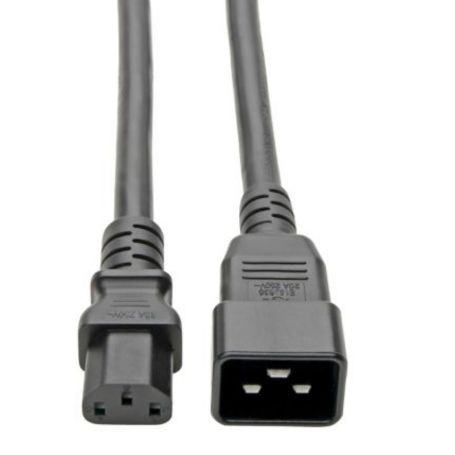

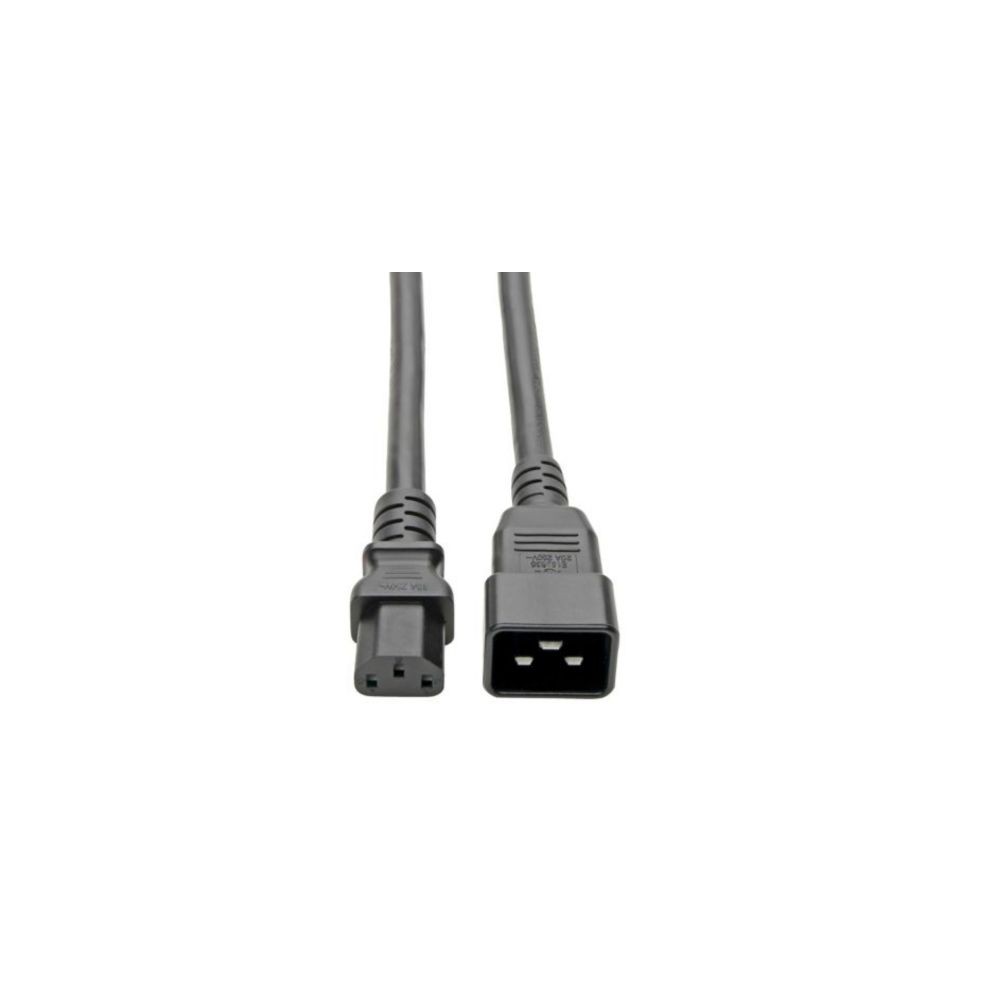

Eaton P032-007 Tripp Lite 7ft C20 to C13 Power Cord Computer Heavy Duty
Overview
The Eaton P032-007 is a heavy-duty IEC power cord with an IEC 320-C20 male connector and IEC 320-C13 female connector. It is designed for computers, servers, PDUs, UPS systems, monitors, and other equipment requiring compatible C20/C13 power connections.
The cord uses 14 AWG, three-conductor SJTW cable and is rated for 15A across 100-250VAC. Its 7 ft length provides additional reach between rack equipment and power distribution equipment while the heavier-gauge construction supports higher-power applications.
The straight C20-to-C13 configuration is intended for compatible IEC power interfaces, including PDU and UPS deployments. It should not be used with loads exceeding 15A or equipment requiring a different connector or electrical rating.
Key Features
- 15A, 100-250VAC rating supports compatible equipment loads
- 14 AWG SJTW cable supports higher-power applications
- C20 male to C13 female provides IEC power connectivity
- 7 ft length provides flexibility for rack equipment placement
- VW-1 PVC jacket supports durable cable construction
Specifications
| Specification | Value |
|---|
| Brand | Eaton |
| Part Number | P032-007 |
| Product Type | Heavy-duty power cord |
| Connector A | IEC 320-C20 male |
| Connector B | IEC 320-C13 female |
| Current Rating | 15A |
| Voltage Rating | 100-250VAC |
| Cable Length | 7 ft (2.13 m) |
| Wire Gauge | 14 AWG |
| Number of Conductors | 3 |
| Cord Type | SJTW |
| Outer Cable Diameter | 9.3 mm |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | VW-1 |
| Cable Color | Black |
| Connector Style | Straight |
| Operating Temperature | -20°C to 60°C |
| Operating Humidity | 10%-65% RH |
| Device Compatibility | Computer, PDU, Monitor/HDTV, UPS, Server |
| Certifications | UL Listed, cUL Listed |
| Compliance | RoHS |
