Detailed Specifications

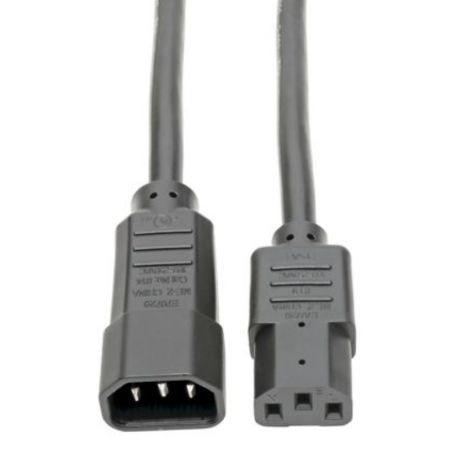

Eaton P005-010 Tripp Lite 10ft Heavy Duty PDU Power Cord C13 C14 15A 250V
Overview
The Eaton P005-010 is a heavy-duty PDU power cord with an IEC 320-C14 male connector and IEC 320-C13 female connector. It is designed for computers, servers, network switches, routers, PDUs, UPS systems, monitors, and other compatible equipment.
The cord uses 14 AWG, three-conductor SJT cable and is rated for 15A at 100-250VAC. Its 10 ft length provides extended reach between rack equipment and power distribution equipment while the heavier-gauge construction supports higher-power applications.
The straight C14-to-C13 configuration is suitable for equipment with compatible IEC interfaces. It should not be used for loads exceeding 15A or equipment requiring a different connector, voltage, or current rating.
Key Features
- 15A, 100-250VAC rating supports compatible equipment loads
- 14 AWG SJT construction supports higher-power equipment
- C14 male to C13 female provides IEC power connectivity
- 10 ft length provides flexibility for rack equipment placement
- VW-1 PVC jacket supports durable cable construction
Specifications
| Specification | Value |
|---|
| Brand | Eaton |
| Part Number | P005-010 |
| Product Type | PDU power cord |
| Connector A | IEC 320-C14 male |
| Connector B | IEC 320-C13 female |
| Current Rating | 15A |
| Voltage Rating | 100-250VAC |
| Cable Length | 10 ft (3.05 m) |
| Wire Gauge | 14 AWG |
| Number of Conductors | 3 |
| Cord Type | SJT |
| Outer Cable Diameter | 9.3 mm |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | VW-1 |
| Cable Color | Black |
| Connector Color | Black |
| Connector Style | Straight |
| Operating Temperature | -20°C to 60°C |
| Operating Humidity | 10%-65% RH |
| Device Compatibility | Network Switch, Printer, Server, UPS, Monitor/HDTV, Router, Computer, PDU |
| Certifications | UL Listed, cUL Listed, CSA Certified |
| Compliance | RoHS, REACH |
