Detailed Specifications

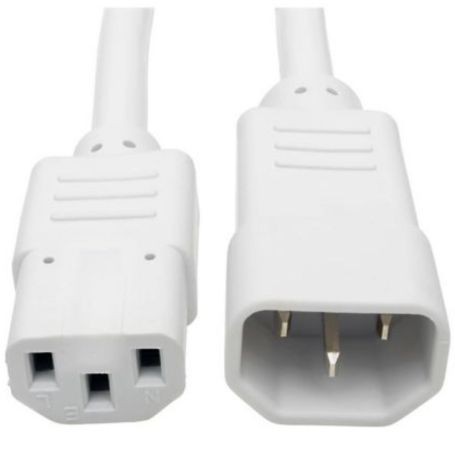

Eaton P005-006-AWH Tripp Lite 6ft Heavy Duty PDU Power Cord C13 C14 15A 250V
Overview

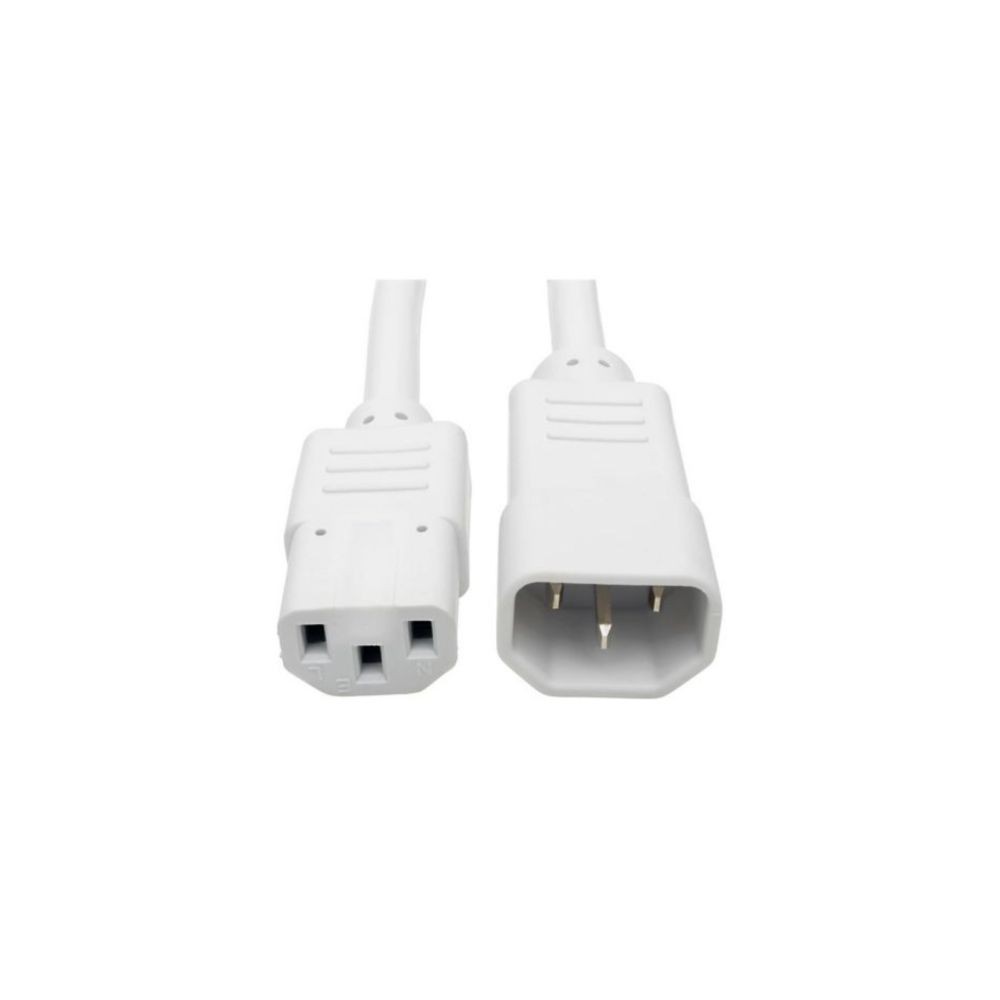

The Eaton P005-006-AWH is a heavy-duty PDU-style power extension cord with an IEC 320-C14 male connector and IEC 320-C13 female connector. It is designed for computers, servers, network switches, routers, UPS systems, PDUs, printers, and monitors using compatible IEC power interfaces.
The cord uses 14 AWG, three-conductor SJT cable and is rated for 15A at 100-250VAC. Its 6 ft length provides additional reach between rack equipment and power distribution equipment while maintaining a heavier-gauge construction for higher-power applications.
The white jacket and molded white connectors provide quick visual identification in crowded racks or workstations. It is suitable when both connected devices use C13/C14 interfaces and the circuit remains within the 15A rating. It should not be used with incompatible connector types or loads above its specified electrical rating.
Key Features
- 15A, 100-250VAC rating supports higher-power equipment
- 14 AWG SJT cable supports demanding power connections
- C14 male to C13 female provides IEC power extension
- 6 ft length allows flexible rack equipment placement
- White molded ends simplify cable identification in racks
Specifications
| Specification | Value |
|---|
| Brand | Eaton |
| Part Number | P005-006-AWH |
| Product Type | PDU power cord |
| Connector A | IEC 320-C14 male |
| Connector B | IEC 320-C13 female |
| Current Rating | 15A |
| Voltage Rating | 100-250VAC |
| Cable Length | 6 ft (1.83 m) |
| Wire Gauge | 14 AWG |
| Number of Conductors | 3 |
| Cord Type | SJT |
| Outer Cable Diameter | 9.2 mm |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | FT2 |
| Cable Color | White |
| Connector Color | White |
| Connector Style | Straight |
| Operating Temperature | -20°C to 60°C |
| Operating Humidity | 20%-80% RH |
| Device Compatibility | Server, Network Switch, UPS, Router, PDU, Printer, Monitor/HDTV, Computer |
| Certifications | UL Listed, cUL Listed, CSA Certified |
| Compliance | RoHS, REACH |
