Detailed Specifications
Eaton P018-003-AWH Tripp Lite 3ft Power Cord C14 C15 Heavy Duty 15A 250V
Overview

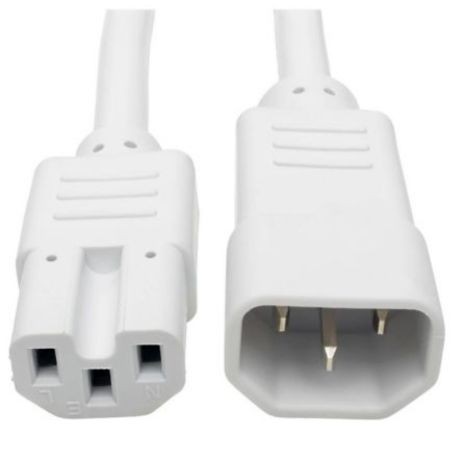

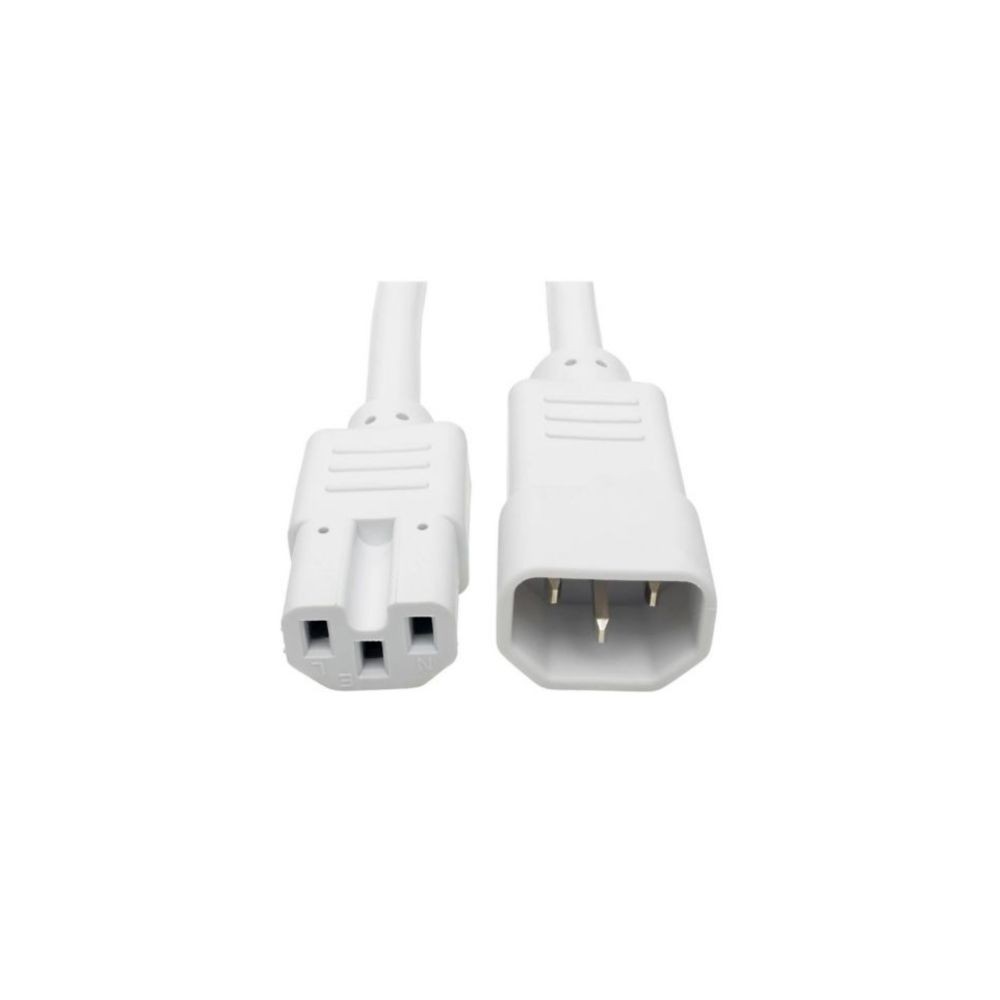

The Eaton Tripp Lite P018-003-AWH is a 3 ft heavy-duty power cord with an IEC 60320 C14 male connector and IEC 60320 C15 female connector. It connects compatible network hardware, servers, and storage equipment to a PDU or UPS.
It is rated 15A at 250VAC and uses 14 AWG, 3-conductor SJT cable. The white jacket and molded white connectors provide visual identification in crowded racks.
Use it when the power-distribution equipment has a C14 connection and the powered equipment requires C15. It is not intended for equipment requiring C13, C19, or another connector configuration.
Key Features
- 15A, 250VAC rating supports compatible IT equipment
- C14-to-C15 connectors support compatible C16 inlets
- 14 AWG SJT cable supports higher-power equipment loads
- White jacket improves identification in dense rack layouts
- 3 ft length supports short PDU-to-equipment connections
Specifications
| Specification | Verified Value |
|---|
| Brand | Eaton Tripp Lite |
| Part Number | P018-003-AWH |
| Product Type | Heavy-Duty Power Cord |
| Current Rating | 15 A |
| Voltage Rating | 100-250 VAC |
| Cable Length | 3 ft (0.91 m) |
| Wire Gauge | 14 AWG |
| Number of Conductors | 3 |
| Cable Type | SJT |
| Input Connector | IEC 60320 C14 Male |
| Output Connector | IEC 60320 C15 Female |
| Cable Color | White |
| Device Compatibility | Network Switch, UPS, PDU |
| Operating Temperature | -20°C to 60°C |
| Approval Marking | UL, cUL |
