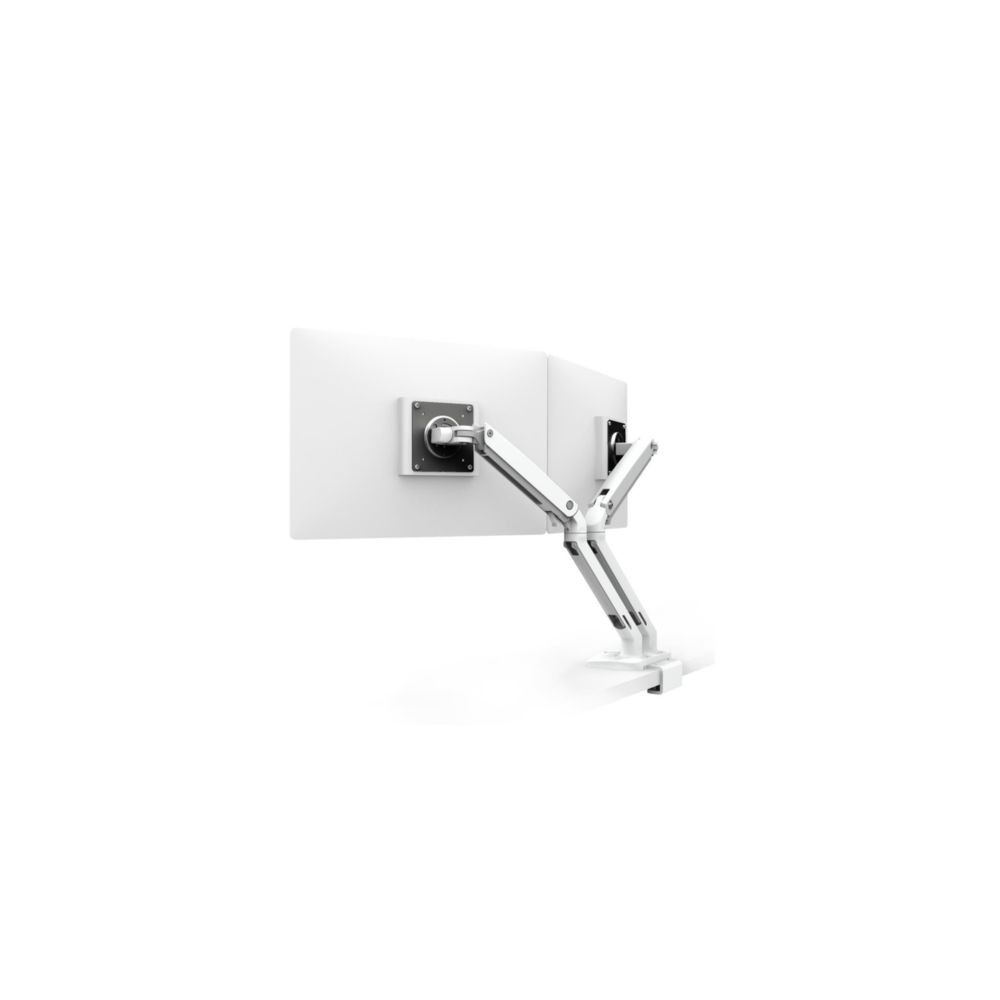

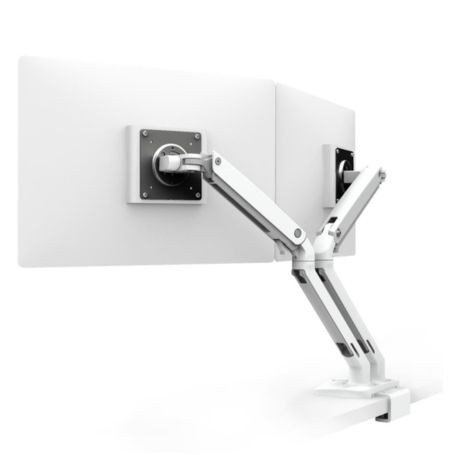

The Ergotron 45-518-216 MXV Desk Dual Monitor Arm is a white dual-display desk mount with an under-mount C-clamp. Its V-shaped design provides side-by-side monitor positioning while the under-mount clamp attaches beneath the desk edge for a low-profile mounting arrangement.
Overview
The 45-518-216 supports two displays with a combined weight capacity of up to 40 lb (18.1 kg). Each monitor can weigh 7–20 lb (3.2–9.1 kg). The mount provides integrated height adjustment and independent display positioning for a dual-monitor workstation.
Dual-Monitor Configuration
The MXV is designed for two side-by-side displays. Each display attaches using VESA-compatible monitor hardware, while the articulated arms allow the screens to be positioned individually.
Under-Mount C-Clamp
The included under-mount C-clamp attaches beneath the desk edge and requires less space underneath the desktop than some conventional attachment arrangements. This can help avoid interference with cable-management systems or structural supports beneath the desk.
Adjustment Range
The mount provides 13 inches (33 cm) of integrated vertical lift. The displays support 180° of tilt and 360° rotation. Pan adjustment is 180° at the base and 360° between the extension and arm. The base rotation stop can be disengaged during installation to increase the base range to 360°.
VESA Compatibility
The 45-518-216 uses VESA FDMI MIS-D mounting and supports 75 x 75 mm and 100 x 100 mm mounting patterns. Verify the monitor's VESA interface and weight before installation.
Key Features
- Supports two displays with up to 40 lb (18.1 kg) combined capacity
- 7–20 lb (3.2–9.1 kg) supported weight per monitor
- 13-inch (33 cm) integrated height adjustment
- Under-mount C-clamp for attachment beneath the desk edge
- 180° tilt and 360° display rotation
Applications
The 45-518-216 is suited to dual-monitor workstations where side-by-side screen positioning and an under-mount desk attachment are preferred. Its articulated arms provide adjustable positioning while leaving the upper desktop surface free of a conventional clamp base.
DC Supplies Product Note
When selecting this exact model, check both monitors individually against the 7–20 lb capacity and confirm 75 x 75 mm or 100 x 100 mm VESA compatibility. The under-mount C-clamp is the defining mounting configuration of the 45-518-216.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Part Number / MPN | 45-518-216 |
| Product Type | Dual Monitor Desk Arm |
| Product Family | MXV |
| Color | White |
| Number of Displays | 2 |
| Typical Display Size | Up to 24 inches |
| Weight Capacity Per Monitor | 7–20 lb (3.2–9.1 kg) |
| Maximum Combined Capacity | 40 lb (18.1 kg) |
| Vertical Lift | 13 inches (33 cm) |
| Tilt | 180° |
| Pan | 180° at base; 360° between extension and arm |
| Rotation | 360° |
| Extension | 17.8 inches (45 cm) |
| Maximum Extension Reach | 22.2 inches (56 cm) from rear of base to VESA plate |
| VESA Standard | FDMI MIS-D |
| VESA Mounting Patterns | 75 x 75 mm / 100 x 100 mm |
| Desk Mounting | Under-mount C-clamp |
| Product Weight | 11.0 lb (5.0 kg) |
| Warranty | 10 years |
| GTIN | 00698833063745 |
Package Contents
The 45-518-216 includes the fully assembled dual arm, under-mount C-clamp, and monitor attachment hardware.
FAQs
How many monitors does the Ergotron 45-518-216 support?
The exact 45-518-216 is designed for two displays in a side-by-side configuration.
How much weight can it support?
Each monitor can weigh 7–20 lb (3.2–9.1 kg), with a maximum combined display weight of 40 lb (18.1 kg).
What VESA patterns are supported?
The mount supports VESA FDMI MIS-D with 75 x 75 mm and 100 x 100 mm mounting patterns.
What type of desk attachment does this model use?
The 45-518-216 uses an under-mount C-clamp that attaches beneath the desk edge.
How much height adjustment is available?
The MXV provides 13 inches (33 cm) of integrated vertical adjustment.
What is included with the mount?
The package includes the fully assembled dual arm, under-mount C-clamp, and monitor attachment hardware.
