Overview

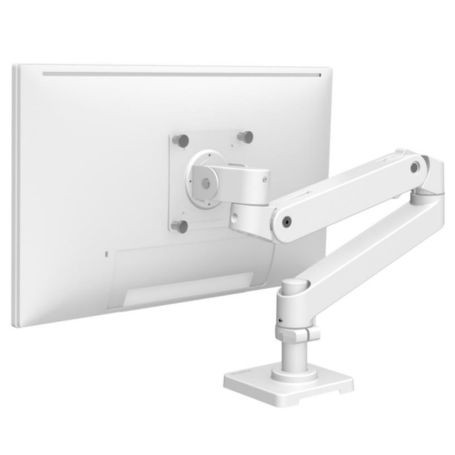

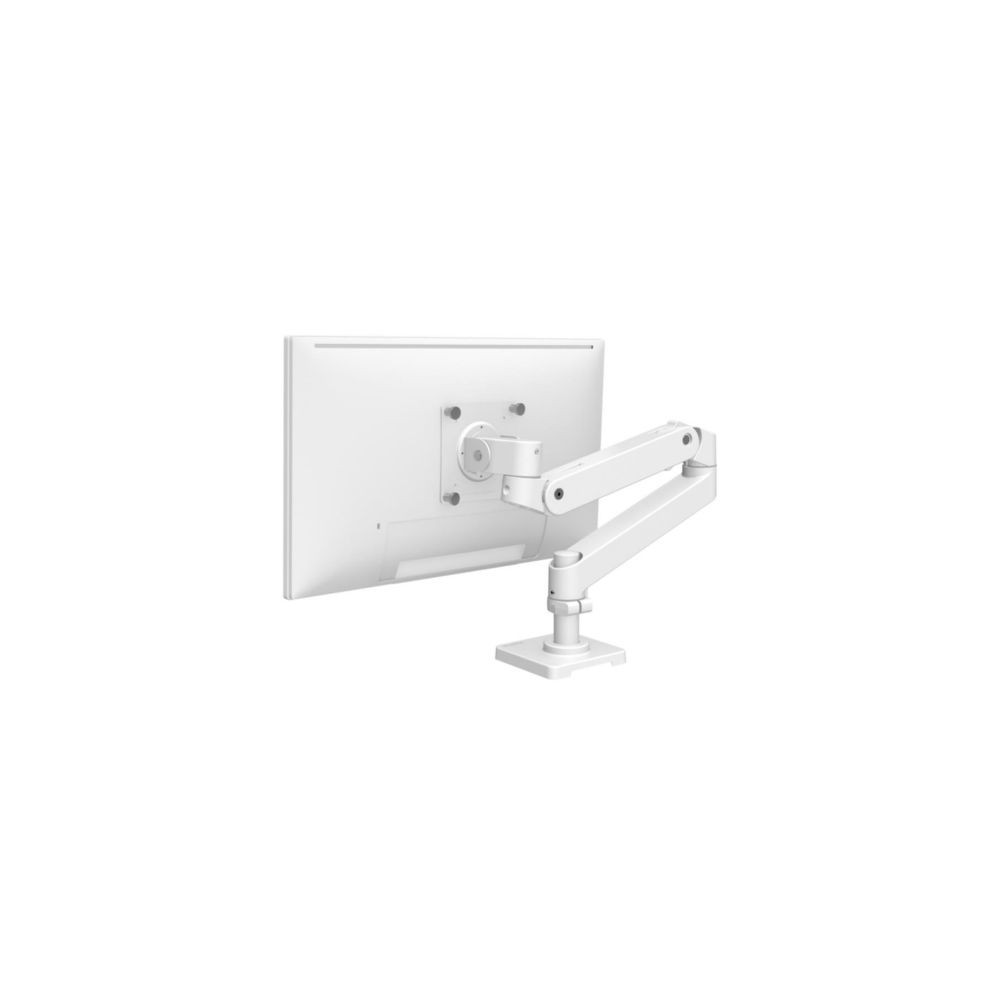

The Ergotron 45-682-290 LX Pro Desk Monitor Arm is a white single-monitor desk mount designed to position a display above the desktop while providing a wide range of height and viewing adjustments. Its articulated arm supports displays up to 34 inches and uses Constant Force technology for smooth monitor positioning.
Monitor Support and Adjustment
The arm supports a monitor weighing 4–22 lb (1.8–10 kg) and provides 13 inches (33 cm) of lift. The monitor can tilt through an 85° range, with 70° upward and 15° downward movement. A dedicated monitor pan provides 180° of movement, while the monitor itself can rotate 360° for landscape or portrait positioning.
Desk Mounting and Reach
The standard two-piece desk clamp mounts to compatible desktop surfaces, while the articulated arm provides up to 25 inches (64 cm) of extension. The base arm can pan through 360°, or 180° when the integrated rotation stop is engaged. This stop can help limit side-to-side arm movement near walls, partitions, or other obstacles.
VESA Compatibility
The monitor attachment supports VESA MIS-D 100/75 C mounting patterns, including 100 x 100 mm and 75 x 75 mm hole spacing. The mount is designed for a broad range of monitors as long as the display remains within the stated weight capacity.
Key Features
- Single-monitor LX Pro desk arm in white
- Supports displays up to 34 inches and 4–22 lb (1.8–10 kg)
- 13-inch (33 cm) height adjustment range
- 85° tilt, 180° monitor pan, and 360° monitor rotation
- Up to 25 inches (64 cm) of extension with integrated rotation stop
Applications
The LX Pro Desk Monitor Arm is suited to office desks, home workstations, professional workspaces, and other single-display setups where adjustable monitor positioning can free space on the desktop. The 360° monitor rotation also allows the display to be used in either landscape or portrait orientation when the monitor and workspace permit.
DC Supplies Product Note
Check the monitor's actual weight before installation rather than relying only on screen size. Displays up to 34 inches can be supported, provided the monitor remains within the 4–22 lb capacity and uses a compatible VESA mounting pattern.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Part Number / MPN | 45-682-290 |
| Product Type | Single Monitor Desk Arm |
| Series | LX Pro |
| Configuration | Single Monitor |
| Color | White |
| Typical Display Size | Up to 34 inches |
| Monitor Capacity | 4–22 lb (1.8–10 kg) |
| Lift | 13 inches (33 cm) |
| Tilt | 85° (70° up / 15° down) |
| Monitor Pan | 180° |
| Base Arm Pan | 360° (180° with rotation stop engaged) |
| Monitor Rotation | 360° |
| Maximum Extension | 25 inches (64 cm) |
| VESA Standard | MIS-D, 100/75 C |
| VESA Mounting Patterns | 100 x 100 mm and 75 x 75 mm |
| Pole Height | 5.3 inches (13.5 cm) |
| Mounting | Two-piece desk clamp |
| Warranty | 10 years |
| GTIN | 00698833091571 |
Frequently Asked Questions
What monitors can the Ergotron 45-682-290 support?
The arm is designed for displays up to 34 inches, with a weight capacity of 4–22 lb (1.8–10 kg).
What VESA patterns are supported?
The monitor mount supports VESA MIS-D 100/75 C patterns, including 100 x 100 mm and 75 x 75 mm mounting holes.
How much height adjustment does the arm provide?
The LX Pro Desk Monitor Arm provides 13 inches (33 cm) of lift.
Can the monitor be rotated vertically?
Yes. The monitor pivot provides 360° rotation, allowing landscape or portrait positioning when appropriate for the display and workspace.
How far can the arm extend?
The articulated arm provides up to 25 inches (64 cm) of extension.
What is the purpose of the rotation stop?
The integrated rotation stop can limit base arm side-to-side movement to 180°, helping control the arm's travel around nearby walls, partitions, or other obstacles.
