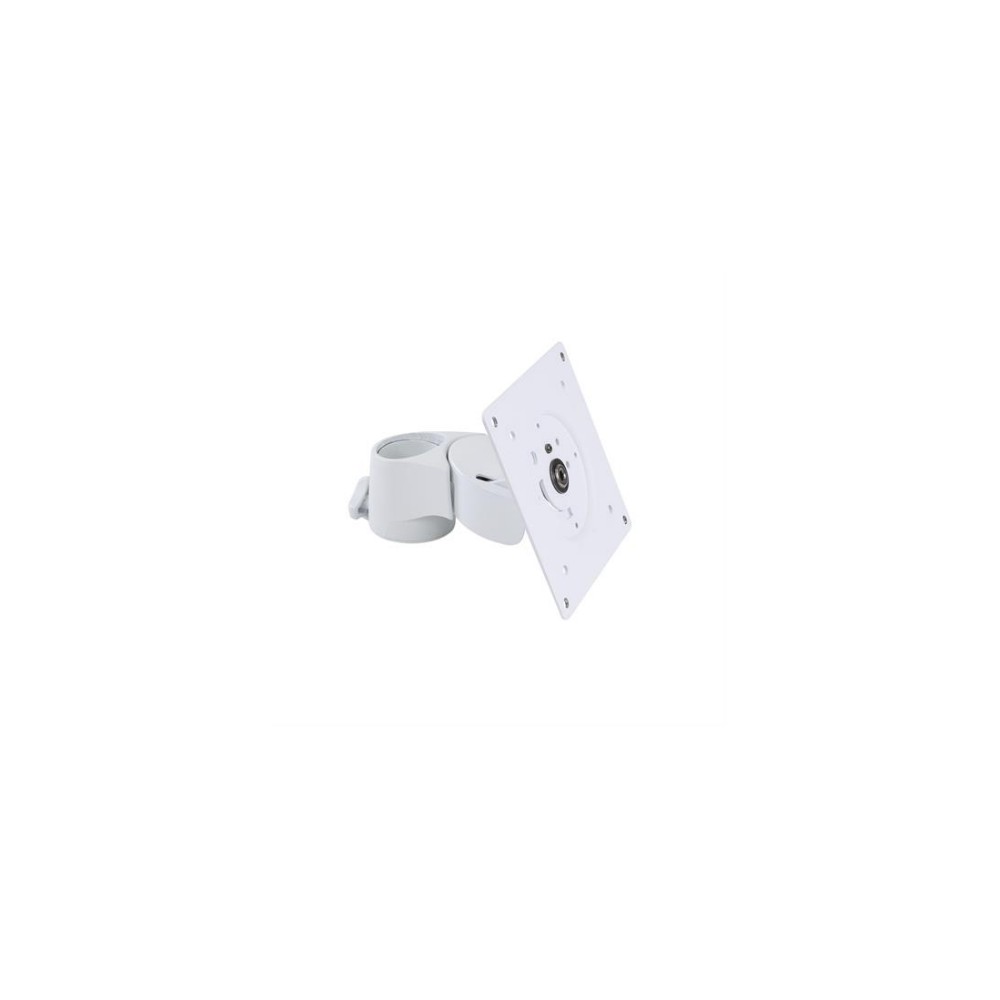

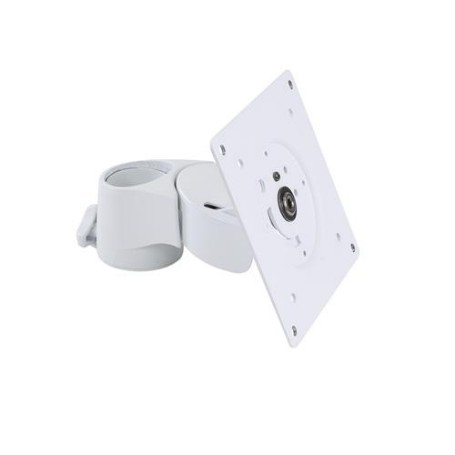

Ergotron 98-534 – Tilt Pivot for SV Pole Cart, White
Overview
The Ergotron 98-534 Tilt Pivot for SV Pole Cart is a cart-mount accessory designed to add an additional attachment point for small monitors, tablets, cameras and other compatible accessories on an Ergotron StyleView Pole Cart. The pivot can be positioned at the preferred height to suit the application.
Technical Information
The 98-534 supports VESA 75 x 75 mm and 100 x 100 mm mounting patterns, accommodates supported devices from 4.41 lb to 13.01 lb, and supports displays up to 24 inches. The pivot provides up to 80° of tilt adjustment and 360° rotation.
Compatibility
The 98-534 is designed for the Ergotron StyleView Pole Cart, with compatibility identified as StyleView Pole Cart model 24-828-211. It is intended as an additional mounting point for compatible monitors, tablets, cameras and other accessories.
Key Features
- Additional tilt-pivot mounting point for StyleView Pole Cart configurations
- Supports compatible monitors, tablets and cameras
- 13.01 lb maximum load capacity with 4.41 lb minimum load capacity
- Supports VESA 75 x 75 mm and 100 x 100 mm mounting patterns
- Provides up to 80° tilt and 360° rotation adjustment
Applications
The Ergotron 98-534 is suited to healthcare and mobile workstation deployments where an additional adjustable mounting position is required on a StyleView Pole Cart. It can support applications involving secondary displays, tablets, cameras and similar VESA-compatible equipment within the specified load range.
DC Supplies Product Note
The 98-534 is a mounting accessory rather than a complete cart or monitor mount system. Verify the host StyleView Pole Cart model and the installed device's VESA pattern, screen size and weight before deployment.
Specifications
| Brand | Ergotron |
|---|
| Manufacturer Part Number | 98-534 |
|---|
| Product | Tilt Pivot for SV Pole Cart |
|---|
| Product Type | Cart Mount |
|---|
| Color | White |
|---|
| Supported Devices | Monitor, tablet, camera |
|---|
| Maximum Screen Size | 24 inches |
|---|
| Minimum Load Capacity | 4.41 lb (2.0 kg) |
|---|
| Maximum Load Capacity | 13.01 lb (5.9 kg) |
|---|
| VESA Compatibility | 75 x 75 mm; 100 x 100 mm |
|---|
| Maximum Tilt | 80° |
|---|
| Rotation | 360° |
|---|
| Compatible Cart | Ergotron StyleView Pole Cart 24-828-211 |
|---|
| Warranty | 5-year limited warranty |
|---|
Specifications are based on exact-MPN manufacturer and reseller data for Ergotron 98-534.
FAQs
What is the Ergotron 98-534?
It is a Tilt Pivot for an Ergotron StyleView Pole Cart, providing an additional adjustable mounting point for compatible monitors, tablets, cameras and other accessories.
What is the maximum load capacity?
The maximum specified load capacity is 13.01 lb (5.9 kg), with a minimum load capacity of 4.41 lb (2.0 kg).
What VESA patterns does it support?
The 98-534 supports VESA 75 x 75 mm and 100 x 100 mm mounting patterns.
How large a display can it support?
The specified maximum screen size is 24 inches. Actual suitability also depends on the device's weight and VESA mounting pattern.
How much adjustment does the pivot provide?
The pivot provides up to 80° of tilt and 360° of rotation.
Which StyleView Pole Cart is compatible?
Ergotron reseller documentation identifies compatibility with StyleView Pole Cart model 24-828-211.
