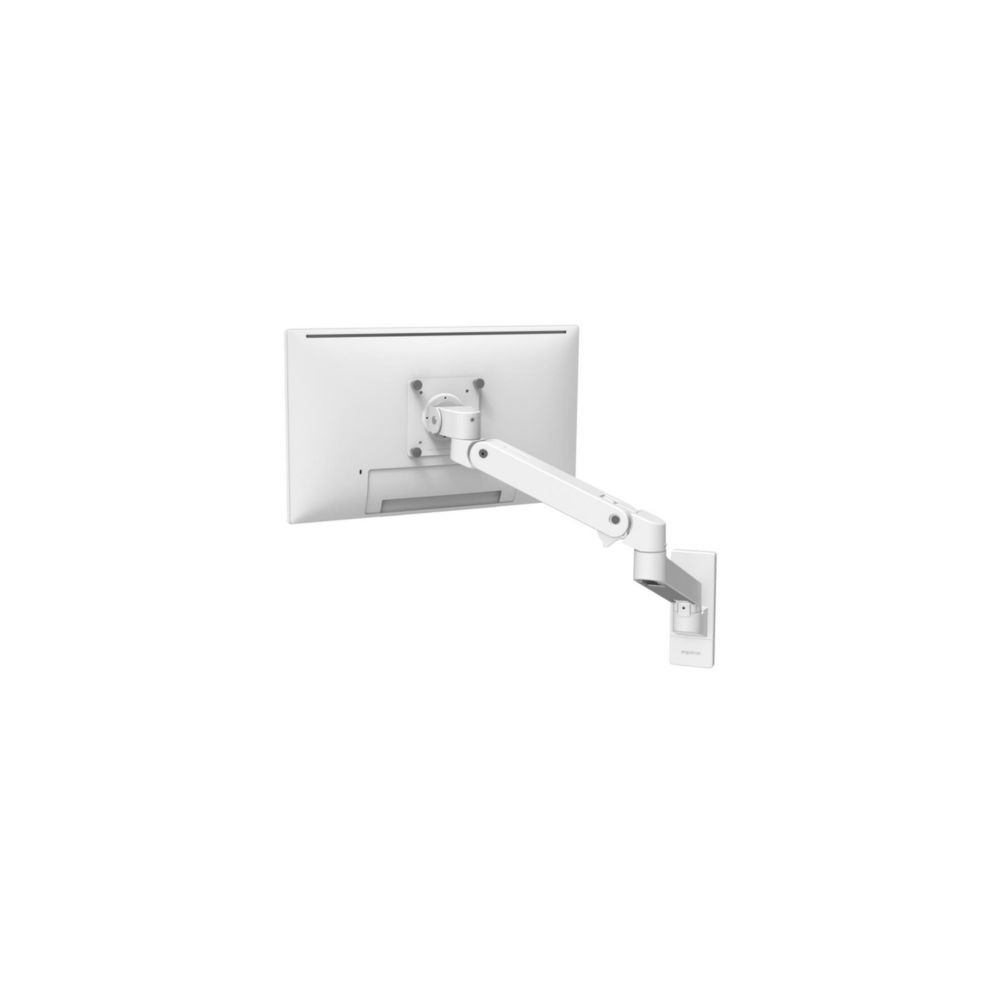

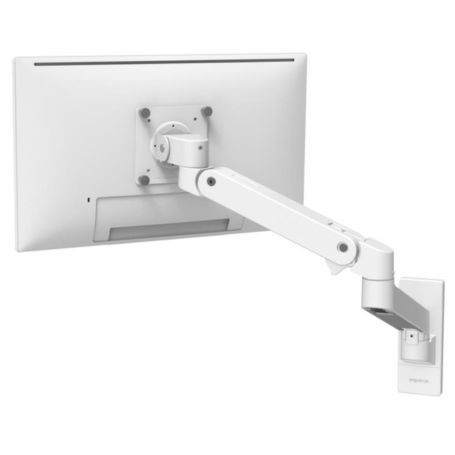

Ergotron LX Pro Wall Monitor Arm
The Ergotron 45-683-290 is an LX Pro Wall Monitor Arm in white, designed to mount a single display to a wall-mounted support. The arm provides adjustable positioning for desktop and workstation displays while keeping the monitor supported from the wall rather than the desk.
Monitor Compatibility
The 45-683-290 supports typical LCD displays up to 34 inches and monitors weighing from 1.8 to 10 kg. It uses VESA MIS-D mounting with 75 x 75 mm and 100 x 100 mm hole patterns.
Adjustment
The arm provides up to 33 cm of lift and up to 64 cm of extension. The monitor supports 85° of tilt, 360° of monitor pan and 360° of rotation. The base provides 360° of pan, with 180° available when the rotation stop is engaged.
Key Features
- Single-monitor wall-mounted LX Pro arm
- Supports typical displays up to 34 inches
- Supports monitor weights from 1.8 to 10 kg
- Up to 33 cm of lift and 64 cm of extension
- VESA MIS-D compatibility with 75 x 75 mm and 100 x 100 mm mounting patterns
Applications
The LX Pro Wall Monitor Arm is intended for workstations where a display needs to be mounted to a wall instead of a desktop surface. Its articulated design allows the monitor to be repositioned for different viewing positions.
DC Supplies Product Note
The exact 45-683-290 is the white version of the LX Pro Wall Monitor Arm. Before installation, verify that the display weight and VESA mounting pattern fall within the manufacturer's specifications and that the mounting surface is suitable for the installation.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Part Number / MPN | 45-683-290 |
| Product Type | Wall Monitor Arm |
| Series | LX Pro |
| Configuration | Single Monitor |
| Color | White |
| Typical Display Size | Up to 34 inches |
| Weight Capacity | 1.8–10 kg (4–22 lb) |
| Lift | 33 cm (13 inches) |
| Tilt | 85° |
| Monitor Pan | 360° |
| Base Pan | 360°; 180° with rotation stop engaged |
| Rotation | 360° |
| VESA Mounting | MIS-D, 75 x 75 mm and 100 x 100 mm |
| Extension | Up to 64 cm (25 inches) |
| Product Weight | 2.8 kg (6.1 lb) |
| Warranty | 10 years |
| UPC | 698833091601 |
Frequently Asked Questions
How many monitors does the Ergotron 45-683-290 support?
The 45-683-290 is a single-monitor wall arm.
What monitor size is supported?
The typical supported display size is up to 34 inches, subject to the specified weight capacity.
What is the monitor weight capacity?
The mount supports monitors weighing from 1.8 to 10 kg.
Which VESA patterns are supported?
The arm supports VESA MIS-D patterns of 75 x 75 mm and 100 x 100 mm.
How far can the arm extend?
The LX Pro Wall Monitor Arm provides up to 64 cm of extension.
What color is part number 45-683-290?
The exact 45-683-290 configuration is white.
