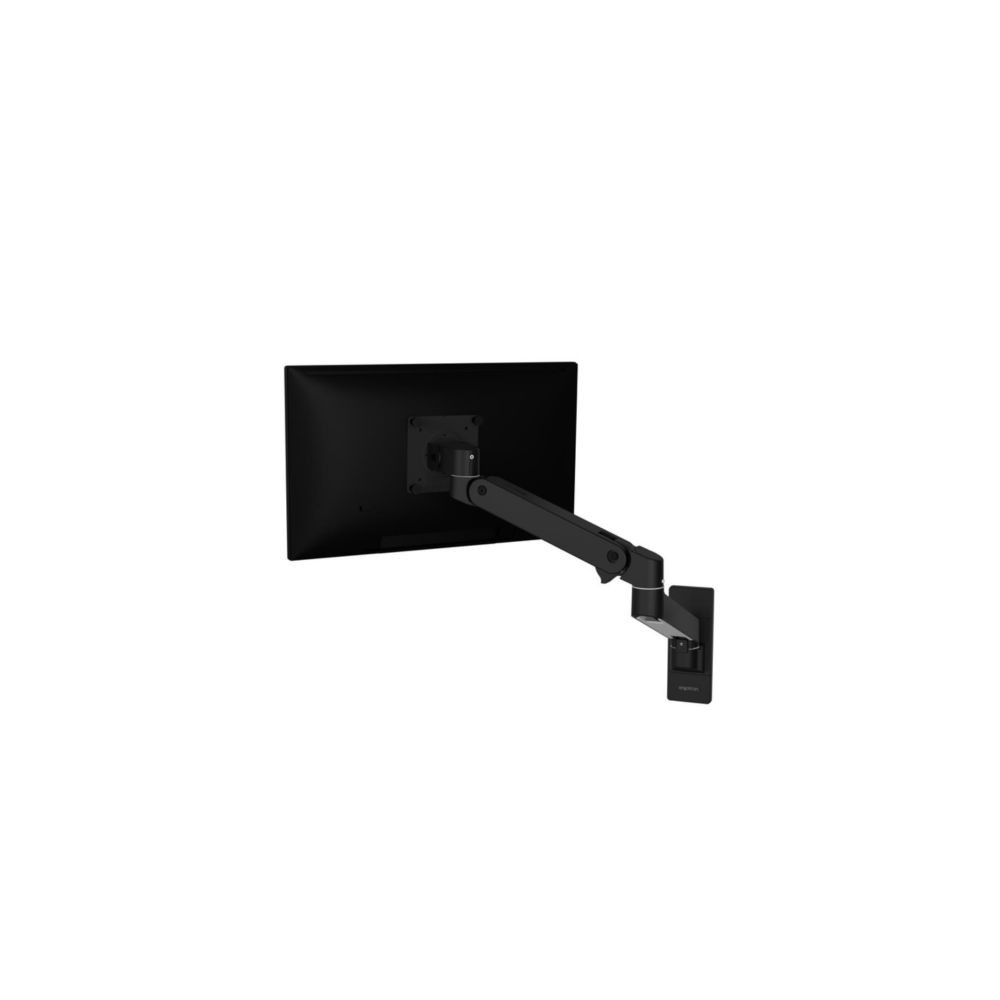

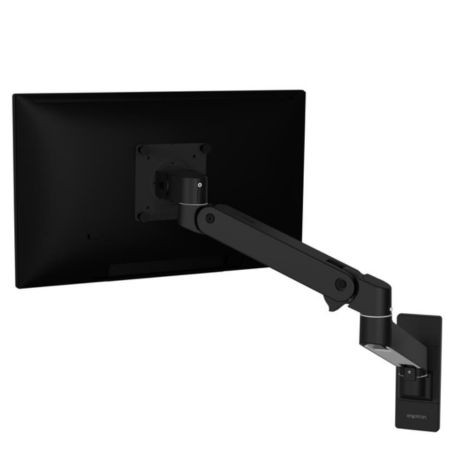

Ergotron LX Pro Wall Monitor Arm
The Ergotron 45-683-292 is an LX Pro Wall Monitor Arm in matte black for mounting a single monitor to a sturdy vertical surface. The arm provides adjustable positioning while keeping the display supported away from the work surface.
Monitor Compatibility
The 45-683-292 supports displays up to 34 inches and a monitor weight range of 1.8 to 10 kg. It uses VESA MIS-D mounting with 75 x 75 mm and 100 x 100 mm hole patterns.
Adjustment
The arm provides up to 33 cm of height adjustment. The monitor offers up to 85° of tilt, 180° of monitor pan and 360° of monitor rotation. The base provides 360° of movement, with a 180° limit when the rotation stop is engaged.
Key Features
- Single-monitor wall-mounted LX Pro arm
- Supports displays up to 34 inches and 10 kg
- 33 cm of height adjustment
- 85° tilt with 180° monitor pan and 360° rotation
- VESA MIS-D support for 75 x 75 mm and 100 x 100 mm patterns
Applications
The LX Pro Wall Monitor Arm is intended for workstations where a monitor needs to be attached to a sturdy vertical surface. The adjustable arm can position the display for different working positions and can be folded aside when the screen is not being used.
DC Supplies Product Note
The exact 45-683-292 is the matte black wall-monitor-arm variant. Installation requires a suitable sturdy vertical mounting surface; verify the mounting surface and fastener requirements before installation.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Part Number / MPN | 45-683-292 |
| Product Type | Wall Monitor Arm |
| Series | LX Pro |
| Configuration | Single Monitor |
| Color | Matte Black |
| Typical Display Size | Up to 34 inches |
| Weight Capacity | 1.8–10 kg (4–22 lb) |
| Height Adjustment | 33 cm (13 inches) |
| Tilt | 85° (70° up / 15° down) |
| Monitor Pan | 180° |
| Base Pan | 360°; 180° with rotation stop engaged |
| Monitor Rotation | 360° |
| VESA Mounting | MIS-D, 75 x 75 mm and 100 x 100 mm |
| Extension | Up to 64 cm (25 inches) |
| Product Weight | 2.7 kg (6 lb) |
| Warranty | 10 years |
| GTIN | 00698833091618 |
Frequently Asked Questions
How many monitors does the 45-683-292 support?
The 45-683-292 is a single-monitor wall arm.
What monitor size and weight are supported?
Ergotron specifies typical displays up to 34 inches with a supported weight range of 1.8 to 10 kg.
Which VESA patterns are supported?
The arm supports VESA MIS-D mounting patterns of 75 x 75 mm and 100 x 100 mm.
How much adjustment does the arm provide?
The arm provides 33 cm of height adjustment, up to 64 cm of extension, 85° of tilt, 180° monitor pan and 360° monitor rotation.
Is this a desk mount?
No. The 45-683-292 is the LX Pro Wall Monitor Arm and is designed for attachment to a sturdy vertical surface.
