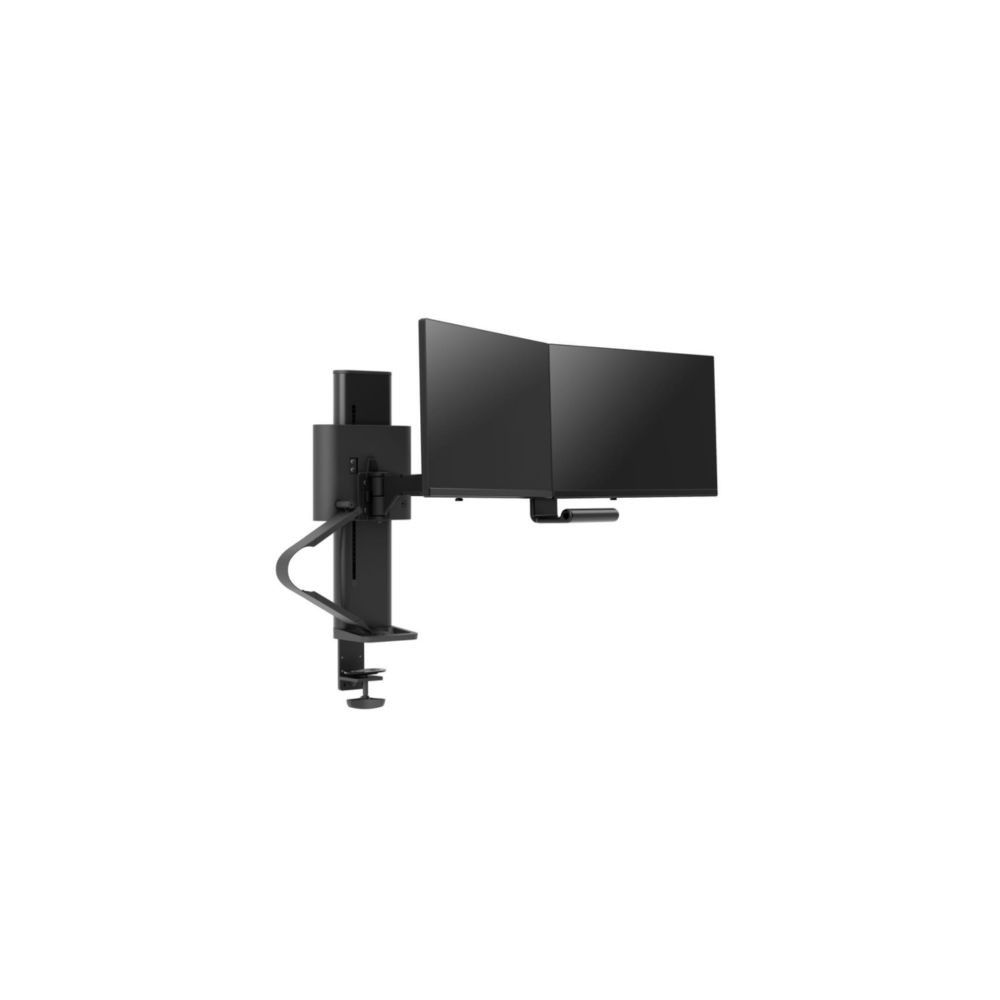

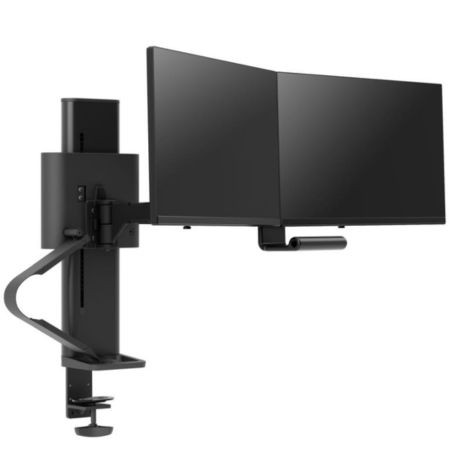

Ergotron TRACE Dual Monitor Mount
The Ergotron 45-631-224 TRACE is a matte black dual-monitor desk mount designed for positioning two displays on a shared workstation. It uses Constant Force technology for smooth monitor adjustment and includes integrated cable management.
Dual Monitor Configuration
The mount supports two displays with a typical screen size of 21.5 to 27 inches. Total supported monitor weight is 3.7 to 9.8 kg, with an individual monitor weight range of approximately 1.8 to 4.9 kg. The two displays can be positioned side by side and adjusted independently.
Adjustment and Mounting
TRACE provides up to 28 cm of lift and up to 38.1 cm of extension. The monitor pivots provide 240° of pan and 360° of rotation. Tilt adjustment is 80° in total, with 75° upward and 5° downward movement. VESA MIS-D mounting supports 75 x 75 mm and 100 x 100 mm patterns.
Key Features
- Supports two monitors in a dual-display configuration
- Supports typical displays from 21.5 to 27 inches
- Supports a combined monitor load of 3.7 to 9.8 kg
- VESA MIS-D compatibility with 75 x 75 mm and 100 x 100 mm patterns
- Integrated cable management with adjustable lift, pan, tilt and rotation
Applications
The 45-631-224 is designed for desktop workstations requiring two adjustable displays. Its dual-arm configuration allows two monitors to be positioned for individual tasks, shared viewing and collaborative workstation layouts.
DC Supplies Product Note
Check the combined monitor weight and the weight of each individual display before installation. Each monitor should fall within the supported individual weight range, and both displays should use one of the supported VESA mounting patterns. The standard desk clamp attaches to desk surfaces up to 65 mm thick.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Part Number / MPN | 45-631-224 |
| Product Type | Dual Monitor Desk Mount |
| Series | TRACE |
| Color | Matte Black |
| Number of Monitors | 2 |
| Typical Display Size | 21.5–27 inches |
| Total Weight Capacity | 3.7–9.8 kg (8.1–21.5 lb) |
| Individual Monitor Weight | 1.8–4.9 kg (4.05–10.75 lb) |
| VESA Mounting | MIS-D, 75 x 75 mm and 100 x 100 mm |
| Lift | 28 cm (11 inches) |
| Tilt | 80° total; 75° up / 5° down |
| Pan | 240° |
| Rotation | 360° |
| Extension | Up to 38.1 cm (15 inches) |
| Desk Clamp Capacity | Up to 65 mm desk thickness |
| Product Weight | 8.9 kg (19.5 lb) |
| Warranty | 15 years |
| UPC | 698833083804 |
Frequently Asked Questions
How many monitors does the Ergotron 45-631-224 support?
The 45-631-224 is a dual-monitor mount designed to support two displays.
What monitor sizes are supported?
The typical supported display size is 21.5 to 27 inches per monitor.
What is the weight capacity?
The total supported monitor load is 3.7 to 9.8 kg, with approximately 1.8 to 4.9 kg supported per individual monitor.
Which VESA patterns are supported?
The mount supports VESA MIS-D mounting patterns of 75 x 75 mm and 100 x 100 mm.
Can the monitors be rotated?
Yes. The monitor mounts provide 360° rotation, along with 240° pan and adjustable tilt.
What desk thickness can the standard clamp accommodate?
The standard two-piece desk clamp attaches to desk surfaces up to 65 mm thick.
