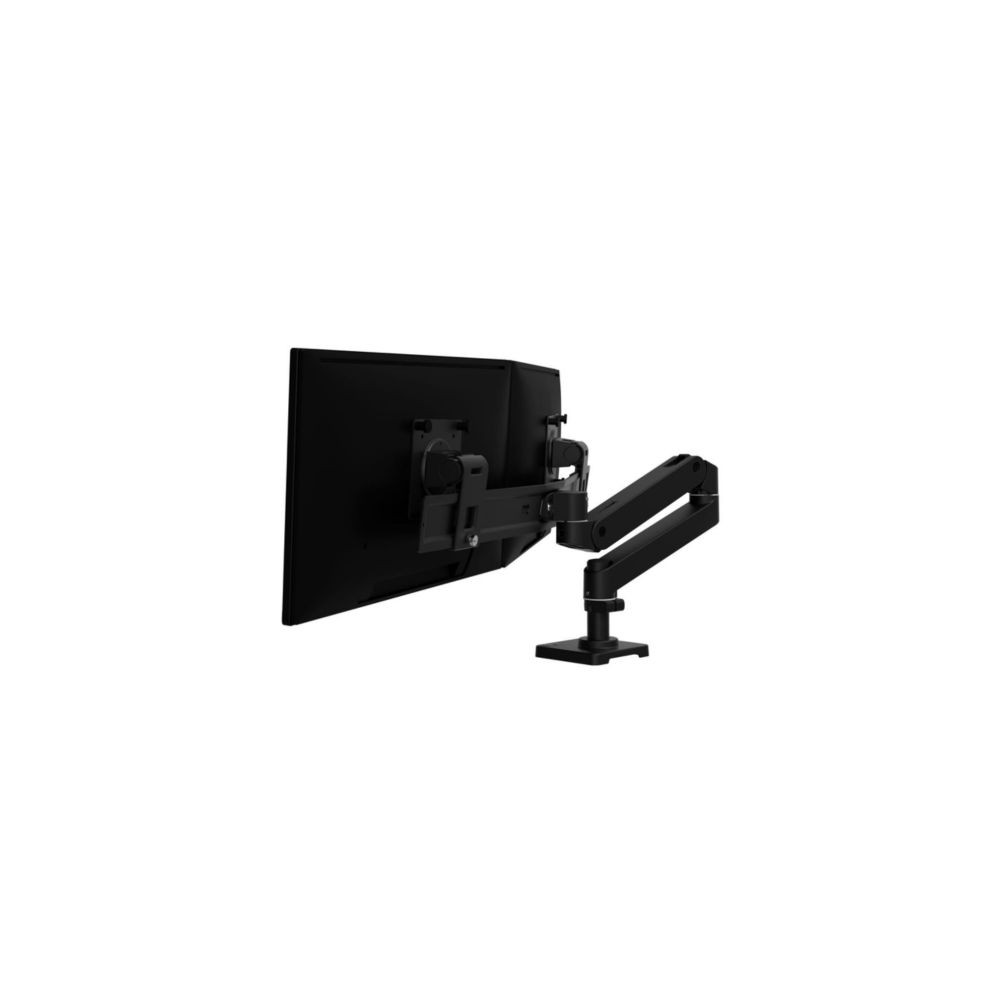

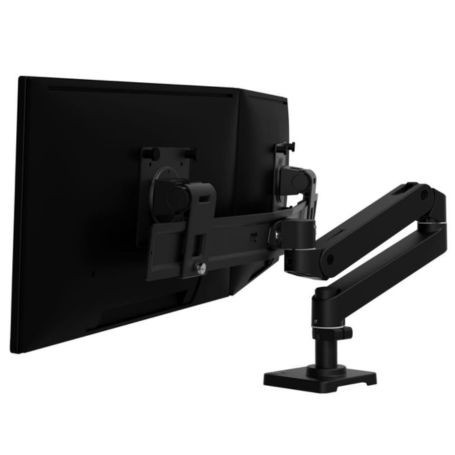

Ergotron LX Pro Desk Dual Direct Monitor Arm
The Ergotron 45-684-292 is an LX Pro Desk Dual Direct Monitor Arm in black, designed to mount two displays from a single desk-mounted arm assembly. The configuration includes a dual bow, two monitor pivots, extension, desk clamp, pole and attachment hardware.
Monitor Support
The mount is designed for two displays up to 27 inches. It supports up to 4.25 kg per monitor, with a total monitor weight capacity of 8.5 kg.
Adjustment and Compatibility
The LX Pro provides 33 cm of lift and up to 61.7 cm of extension. Each monitor can be tilted through 30°, panned through 360° and rotated through 360°. The mount supports VESA MIS-D mounting patterns with 75 x 75 mm and 100 x 100 mm hole patterns.
Key Features
- Dual Direct configuration for two monitors
- Supports up to 4.25 kg per monitor and 8.5 kg total
- 33 cm of lift for monitor height adjustment
- 360° monitor pan and 360° monitor rotation
- VESA MIS-D compatibility with 75 x 75 mm and 100 x 100 mm patterns
Applications
The 45-684-292 is intended for desktop workstations using two displays. Its dual-monitor arrangement provides independent positioning of the monitors while using a shared desk-mounted support.
DC Supplies Product Note
Before installation, check both individual monitor weight and combined monitor weight against the mount's capacity. Also verify that each display uses a supported 75 x 75 mm or 100 x 100 mm VESA mounting pattern.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Part Number / MPN | 45-684-292 |
| Product Type | Dual Monitor Desk Mount Arm |
| Series | LX Pro |
| Configuration | Dual Direct |
| Color | Black |
| Number of Monitors | 2 |
| Maximum Display Size | Up to 27 inches |
| Maximum Individual Monitor Weight | 4.25 kg (9.4 lb) |
| Total Weight Capacity | 8.5 kg (18.8 lb) |
| Lift | 33 cm (13 inches) |
| Tilt | 30° (+15° / -15°) |
| Monitor Pan | 360° |
| Monitor Rotation | 360° |
| VESA Mounting | MIS-D, 75 x 75 mm and 100 x 100 mm |
| Extension | Up to 61.7 cm (24.3 inches) |
| Product Weight | 5.17 kg (11.4 lb) |
| Warranty | 10 years |
| GTIN / UPC | 00698833091649 |
Frequently Asked Questions
How many monitors does the Ergotron 45-684-292 support?
The 45-684-292 is a Dual Direct monitor arm designed for two displays.
What is the maximum monitor size?
The mount is specified for displays up to 27 inches.
What is the weight capacity?
Each monitor can weigh up to 4.25 kg, with a combined monitor weight capacity of 8.5 kg.
Which VESA patterns are supported?
The mount supports VESA MIS-D patterns of 75 x 75 mm and 100 x 100 mm.
Can the monitors be rotated?
Yes. The monitor pivots provide 360° rotation, while the monitors can also pan through 360°.
What is included?
The manufacturer lists an arm, extension, dual bow, two monitor pivots, 2-piece desk clamp, standard base, 5-inch pole, pole collar and attachment hardware.
