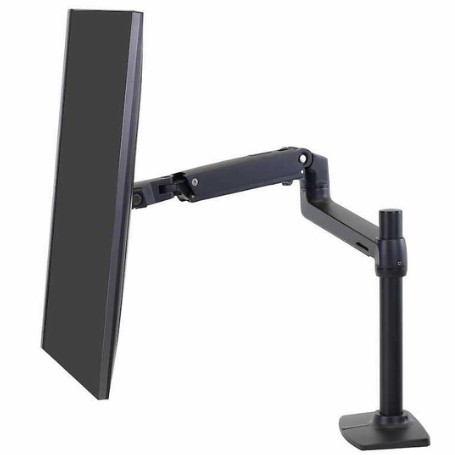

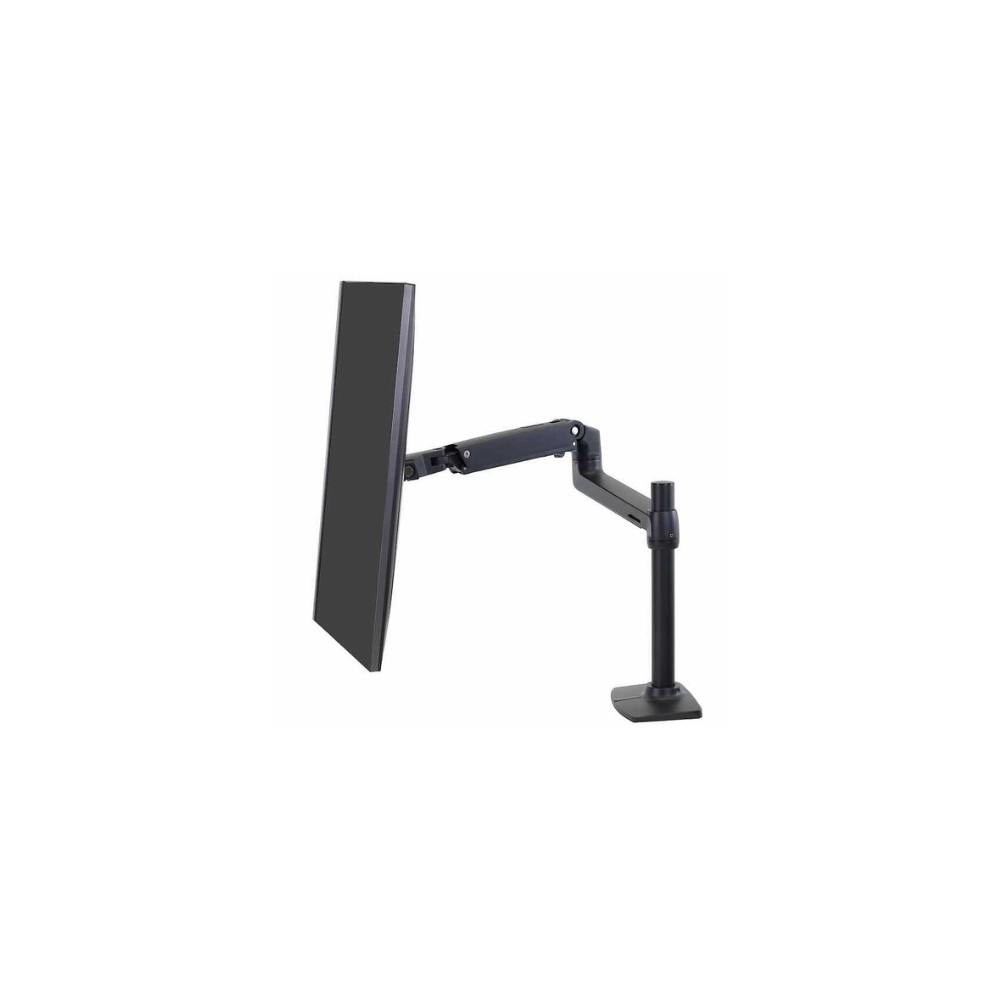

Ergotron 45-682-026 – LX Pro Desk Monitor Arm Polished Aluminum
Overview
The Ergotron 45-682-026 is an LX Pro single-monitor desk arm finished in polished aluminum. It supports one display up to 34 inches and provides adjustable positioning for ergonomic workstation configurations.
Technical Information
The arm supports displays weighing from 4 to 22 lb (1.8 to 10 kg). Constant Force™ technology enables smooth height adjustment with up to 13 inches (33 cm) of lift. The arm provides 360° pan, 360° rotation, and 85° tilt adjustment.
The articulated arm extends up to 25 inches (64 cm) and includes integrated cable management. The two-piece desk clamp accommodates desktop thicknesses from 0.4 to 2.4 inches (10 to 60 mm).
Compatibility
The 45-682-026 supports one compatible monitor using VESA FDMI MIS-D mounting patterns of 75 × 75 mm or 100 × 100 mm. Displays must remain within the specified 4–22 lb (1.8–10 kg) load range.
The included desk clamp is designed for compatible desktop surfaces from 10 to 60 mm thick. Display compatibility should be verified by weight and VESA mounting pattern before installation.
Key Features
- Supports one display up to 34 inches and 22 lb (10 kg)
- Polished aluminum finish with Constant Force™ positioning technology
- 13 inches (33 cm) of lift and up to 25 inches (64 cm) of extension
- 360° pan and rotation with 85° tilt adjustment
- VESA 75 × 75 mm and 100 × 100 mm compatibility with integrated cable management
Applications
The LX Pro desk arm is suited to office workstations, sit-stand desks, professional desktops, design workstations, trading environments, and control-room desks where a single display requires flexible ergonomic positioning.
DC Supplies Product Note
The 45-682-026 is the polished aluminum LX Pro desk-clamp configuration. Verify the monitor's weight and VESA pattern together with the desktop thickness before selecting this specific mounting configuration.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Part Number / MPN | 45-682-026 |
| Product Type | Single Monitor Desk Arm |
| Series | LX Pro |
| Finish | Polished Aluminum |
| Displays Supported | 1 |
| Maximum Display Size | 34 inches |
| Load Capacity | 4–22 lb (1.8–10 kg) |
| VESA Mounting Interface | 75 × 75 mm, 100 × 100 mm |
| Tilt | 85° |
| Pan | 360° |
| Rotation | 360° |
| Lift | 13 in (33 cm) |
| Maximum Extension | 25 in (64 cm) |
| Mounting Type | Two-Piece Desk Clamp |
| Desk Thickness | 0.4–2.4 in (10–60 mm) |
| Technology | Constant Force™ |
| Cable Management | Integrated |
| Product Weight | 8.3 lb (3.8 kg) |
| Warranty | 10 years |
FAQs
How many monitors does the Ergotron 45-682-026 support?
The 45-682-026 supports one monitor.
What is the maximum supported monitor weight?
The arm supports displays from 4 to 22 lb (1.8 to 10 kg).
What VESA patterns are supported?
The display mount supports VESA FDMI MIS-D patterns of 75 × 75 mm and 100 × 100 mm.
What type of desk mounting does the 45-682-026 use?
This model uses a two-piece desk clamp and supports desktop thicknesses from 10 to 60 mm.
What adjustment range does the arm provide?
The arm provides up to 13 inches of lift, up to 25 inches of extension, 360° pan, 360° rotation, and 85° tilt adjustment.
