Detailed Specifications

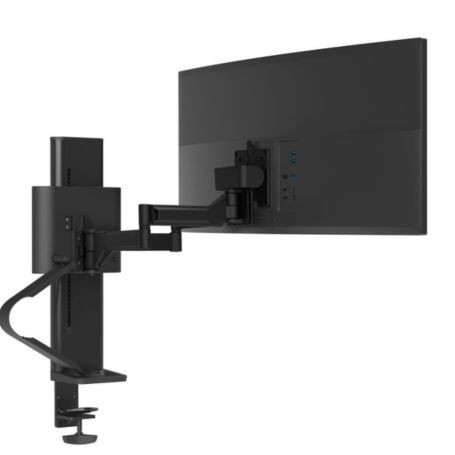

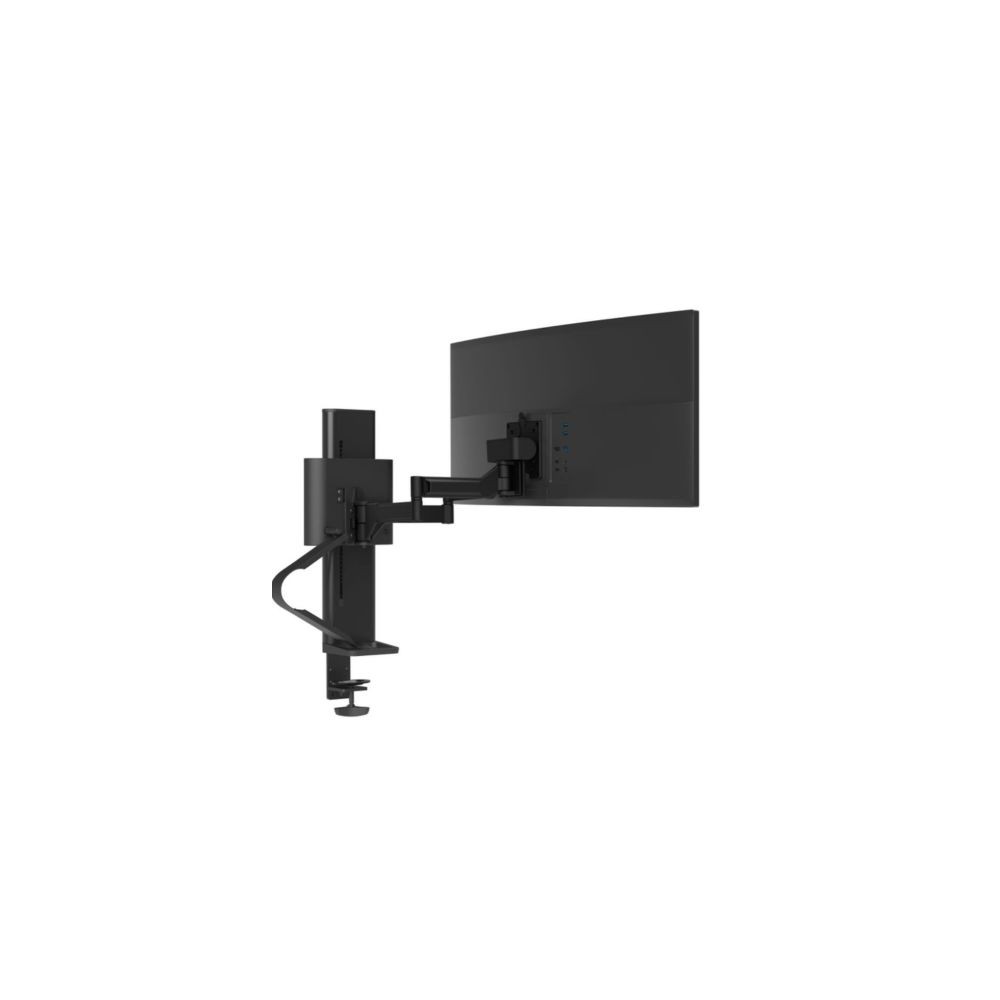

Ergotron TRACE Single Monitor Mount
The Ergotron 45-630-224 TRACE is a matte black single-monitor desk mount designed for flexible positioning of one display. It supports compatible monitors up to 38 inches and accommodates displays weighing from 2.9 to 9.8 kg.
Monitor Compatibility and Adjustment
The mount uses VESA MIS-D mounting with 75 x 75 mm and 100 x 100 mm hole patterns. Its articulated design provides 360° rotation, 240° pan and an 80° tilt range, with 75° upward and 5° downward tilt. The monitor can be raised by up to 28 cm.
Key Features
- Supports one monitor with a typical screen size up to 38 inches
- Supports monitor weights from 2.9 to 9.8 kg
- VESA MIS-D compatibility for 75 x 75 mm and 100 x 100 mm mounting patterns
- 360° rotation, 240° pan and 80° tilt adjustment
- Integrated cable management and a desk-clamp mounting system
Applications
The TRACE mount can be used for desk-based single-monitor workstations where adjustable display positioning and VESA compatibility are required. Its range of movement allows the display to be repositioned between different viewing orientations and working positions.
DC Supplies Product Note
Before installation, confirm that the monitor's weight is within the 2.9–9.8 kg supported range and that its mounting holes match the 75 x 75 mm or 100 x 100 mm VESA pattern. The standard two-piece desk clamp is designed for desk surfaces up to approximately 65 mm thick.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Part Number / MPN | 45-630-224 |
| Product Type | Single Monitor Desk Mount |
| Series | TRACE |
| Color | Matte Black |
| Number of Monitors | 1 |
| Supported Display Size | Up to 38 inches |
| Load Capacity | 2.9–9.8 kg (6.5–21.5 lb) |
| VESA Mounting | MIS-D, 75 x 75 mm and 100 x 100 mm |
| Height Adjustment | 28 cm |
| Tilt | 80°; 75° up / 5° down |
| Pan | 240° |
| Rotation | 360° |
| Extension | Up to 38.1 cm |
| Desk Clamp Capacity | Up to 65 mm desk thickness |
| Product Weight | 7 kg |
| Warranty | 15 years |
| UPC | 698833083996 |
Frequently Asked Questions
What monitors are compatible with the Ergotron 45-630-224?
The mount supports one compatible monitor up to 38 inches, provided the display weighs between 2.9 and 9.8 kg and uses a supported VESA mounting pattern.
Which VESA patterns are supported?
The 45-630-224 supports VESA MIS-D patterns of 75 x 75 mm and 100 x 100 mm.
How much can the monitor be adjusted?
The mount provides up to 28 cm of height adjustment, 240° of pan, 360° of rotation and an 80° tilt range.
How thick can the desk be?
The standard two-piece desk clamp is designed for desk surfaces up to approximately 65 mm thick.
What warranty is provided?
Ergotron specifies a 15-year warranty for the 45-630-224 TRACE single monitor mount.
