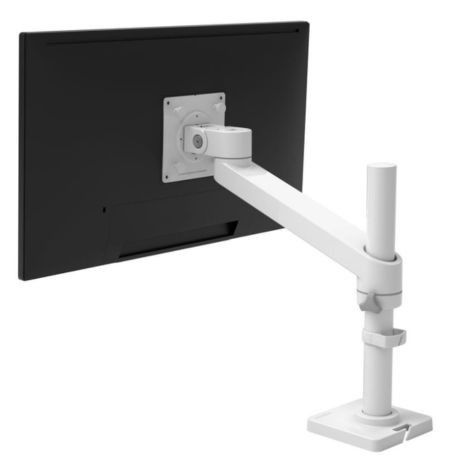

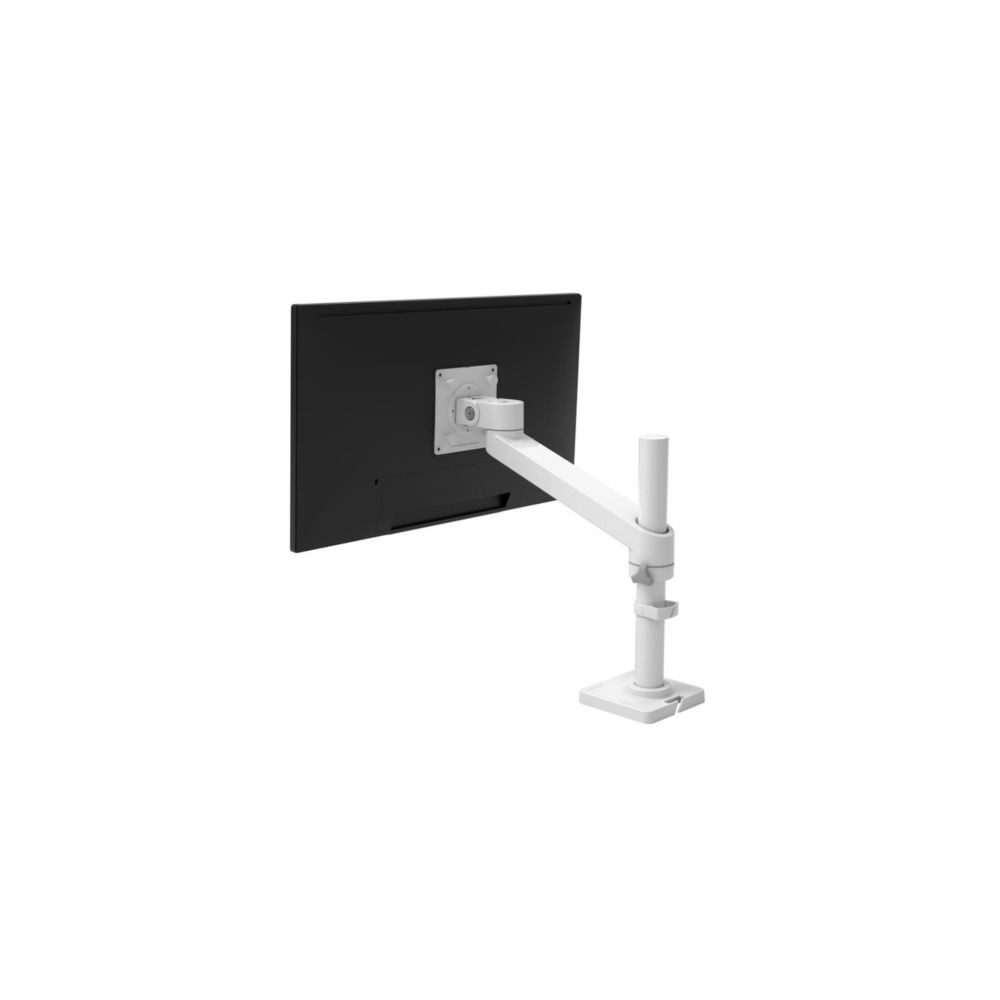

The Ergotron 45-669-216 NX Monitor Arm is a white single-monitor desk mount designed for displays up to 34 inches. It supports monitors weighing up to 8 kg and provides adjustable positioning through vertical lift, tilt, pan, and rotation.
Overview
The NX monitor arm combines a base-and-pole assembly with an articulated arm and monitor pivot. Its integrated cable-management system routes cables along the arm and through the base, while the arm can be moved aside when the monitor is not in use.
Monitor Support
The 45-669-216 supports a typical display size of up to 34 inches and a maximum monitor weight of 8 kg (17.6 lb). Ergotron notes that the stated screen size is approximate and that larger displays may be used when their weight remains within the mount's capacity.
Adjustability
The arm provides a vertical adjustment range of 19.9–44.7 cm (7.8–17.6 inches), 35° of tilt with 30° upward and 5° downward movement, 180° of pan, and 360° of monitor rotation. Maximum arm extension is 36.7 cm (14.5 inches).
Desk Mounting
The 45-669-216 includes a two-piece desk clamp as part of the NX configuration. The package also includes the base and pole assembly, arm, pivot, and attachment hardware.
Key Features
- Supports a single display up to 34 inches and 8 kg (17.6 lb).
- Provides 19.9–44.7 cm of vertical adjustment.
- Offers 35° tilt, 180° pan, and 360° monitor rotation.
- Supports 75 x 75 mm and 100 x 100 mm VESA mounting patterns.
- Includes integrated cable management and a two-piece desk clamp.
VESA Compatibility
The NX Monitor Arm uses the VESA MIS-D interface and supports 75 x 75 mm and 100 x 100 mm mounting patterns.
Applications
The 45-669-216 is suited to single-monitor office and workstation setups where adjustable screen positioning and a compact desk-mounted configuration are required. The integrated cable routing helps keep display cables organized along the arm and through the base.
DC Supplies Product Note
When selecting this model, check the monitor's actual weight and VESA pattern first. The mount is rated for up to 8 kg and supports 75 x 75 mm or 100 x 100 mm mounting patterns.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Part Number / MPN | 45-669-216 |
| Product Type | NX Monitor Arm |
| Color | White |
| Monitor Configuration | Single monitor |
| Typical Display Size | Up to 34 inches |
| Weight Capacity | 0–8 kg (0–17.6 lb) |
| Vertical Adjustment | 19.9–44.7 cm (7.8–17.6 inches) |
| Tilt | 35° (30° up / 5° down) |
| Pan | 180° |
| Rotation | 360° |
| VESA Standard | MIS-D |
| VESA Mounting Patterns | 75 x 75 mm and 100 x 100 mm |
| Maximum Extension | 36.7 cm (14.5 inches) |
| Mounting Type | Desk clamp |
| Desk Clamp | Two-piece |
| Cable Management | Integrated |
| Product Weight | 2.8 kg (6.2 lb) |
| Warranty | 5 years |
| UPC | 00698833089530 |
Package Contents
The package includes the base and pole assembly, arm, pivot, and attachment hardware.
Frequently Asked Questions
What size monitor does the Ergotron 45-669-216 support?
It is specified for displays up to 34 inches, subject to the mount's weight capacity.
What is the maximum monitor weight?
The maximum supported monitor weight is 8 kg (17.6 lb).
Which VESA patterns are supported?
The arm supports 75 x 75 mm and 100 x 100 mm VESA mounting patterns.
How much can the monitor be adjusted vertically?
The vertical adjustment range is 19.9–44.7 cm (7.8–17.6 inches).
Does the NX Monitor Arm include cable management?
Yes. The 45-669-216 includes integrated cable management for routing cables along the arm and through the base.
What is the warranty period?
Ergotron specifies a 5-year warranty for the 45-669-216.
