Overview

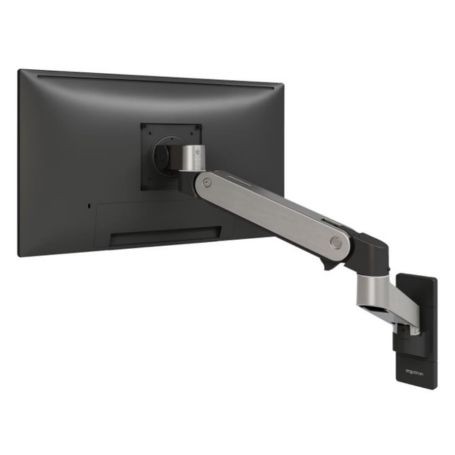

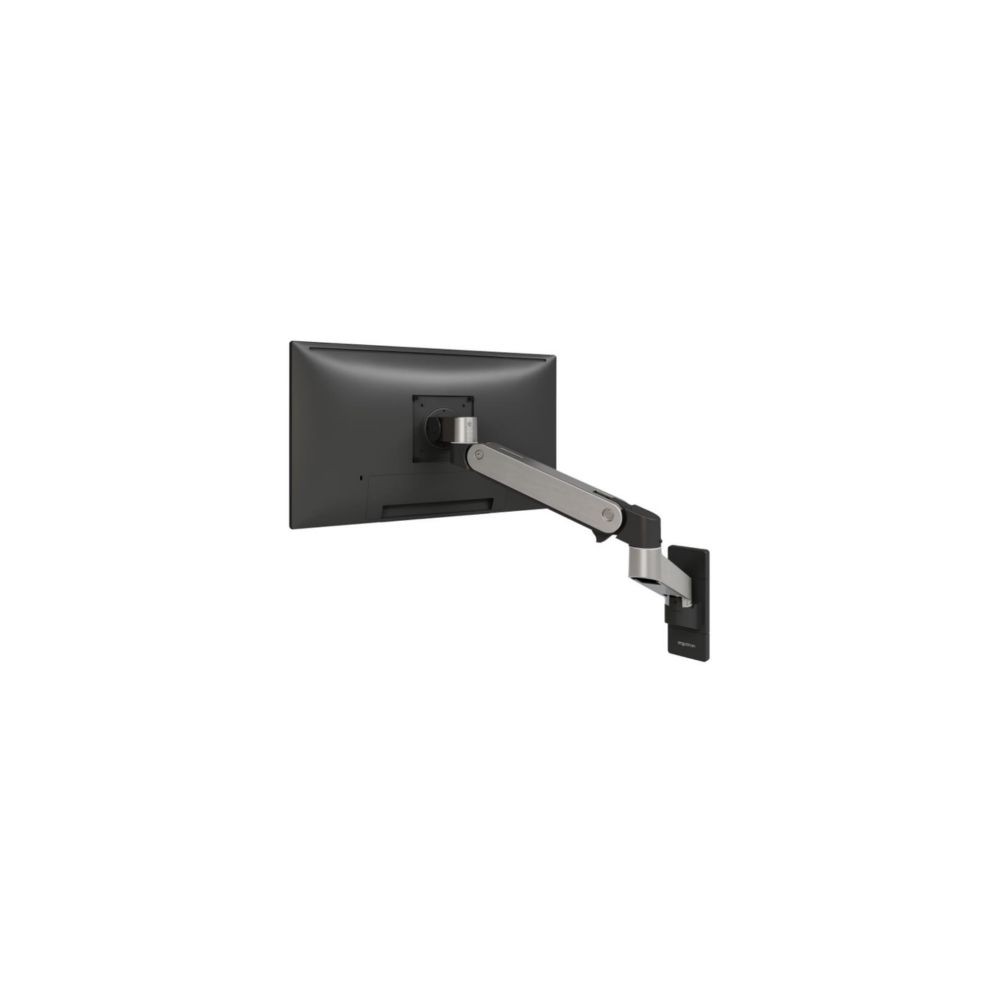

The Ergotron 45-683-026 is an LX Pro Wall Monitor Arm in polished aluminum, designed to mount a single compatible monitor to a wall. It provides adjustable positioning for ergonomic viewing while supporting displays up to 34 inches.
Monitor Compatibility
The LX Pro Wall Monitor Arm supports one display with a load capacity of 4–22 lb (1.8–10 kg). It uses VESA MIS-D mounting patterns for 75 × 75 mm and 100 × 100 mm displays.
Adjustment and Movement
The arm provides 13 inches (33 cm) of lift, 85° of tilt, 360° of monitor pan, and 360° of monitor rotation. The arm can extend the display up to 25 inches (64 cm).
Wall Mounting
The 45-683-026 is designed for wall mounting and can be installed on suitable wood-stud or concrete wall surfaces using the included mounting hardware. The system incorporates cable-management features to help organize monitor cables.
Key Features
- LX Pro single-monitor wall arm in polished aluminum
- Supports displays up to 34 inches
- 4–22 lb (1.8–10 kg) load capacity
- VESA 75 × 75 mm and 100 × 100 mm compatible
- 13-inch lift with 85° tilt and 360° monitor movement
Applications
The 45-683-026 is suited to wall-mounted workstation, office, commercial, and workspace installations requiring adjustable positioning for a single monitor.
DC Supplies Product Note
The exact MPN 45-683-026 identifies the polished aluminum LX Pro Wall Monitor Arm. Before installation, verify the monitor weight, VESA pattern, and suitability of the intended wall surface for the mounting hardware.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Part Number / MPN | 45-683-026 |
| Product Type | Wall Monitor Arm |
| Product Series | LX Pro |
| Product Name | LX Pro Wall Monitor Arm |
| Color / Finish | Polished Aluminum |
| Number of Displays | 1 |
| Maximum Screen Size | 34 inches |
| Load Capacity | 4–22 lb (1.8–10 kg) |
| VESA Mounting Pattern | MIS-D, 100/75, C — 100 × 100 mm / 75 × 75 mm |
| Lift | 13 inches (33 cm) |
| Tilt | 85° |
| Monitor Pan | 180° |
| Base Arm Pan | 360° |
| Monitor Rotation | 360° |
| Maximum Extension | Up to 25 inches (64 cm) |
| Mounting Surface | Wall, wood stud, or concrete |
| Material | Aluminum |
| Product Weight | 5.9 lb (2.7 kg) |
| Shipping Weight | 7.9 lb (3.6 kg) |
| Warranty | 10 years |
| UPC | 698833098402 |
FAQs
What is the Ergotron 45-683-026?
It is an LX Pro Wall Monitor Arm designed to mount and position one compatible monitor on a wall.
What monitor size does it support?
The arm supports a single display up to 34 inches with a load capacity of 4–22 lb (1.8–10 kg).
Which VESA patterns are supported?
The arm supports VESA 75 × 75 mm and 100 × 100 mm mounting patterns.
How far can the arm extend?
The LX Pro Wall Monitor Arm can extend the display up to 25 inches (64 cm).
What wall surfaces can it be mounted to?
Ergotron specifies wall, wood-stud, and concrete mounting applications when the appropriate installation method and hardware are used.
What warranty is included?
Ergotron specifies a 10-year warranty for the 45-683-026.
