Overview

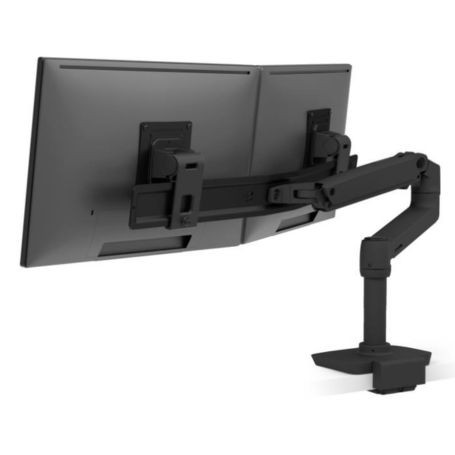

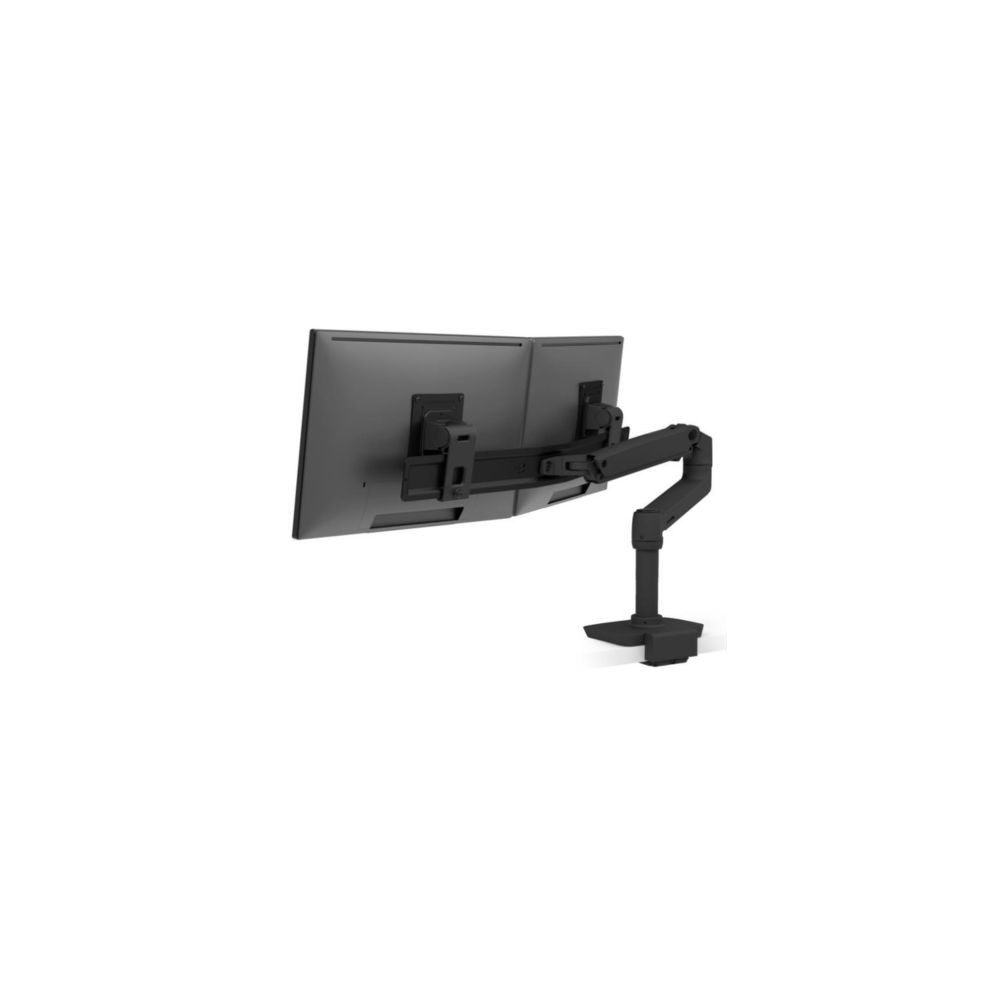

The Ergotron 45-627-224 is an LX Desk Dual Direct Arm in matte black, designed to support two monitors from a single desk-mounted arm system. Its low-profile top-mount C-clamp is designed for worksurfaces 25–35 mm thick.
Dual-Monitor Support
The arm supports two displays with a total load capacity of up to 22 lb (10 kg). Each monitor can weigh between 2 and 11 lb (0.9–5 kg), subject to the overall system capacity and monitor dimensions.
Adjustment and Movement
The LX Dual Direct Arm provides up to 13 inches (33 cm) of height adjustment. The monitors support individual tilt adjustment, 360° rotation, and 360° pan. Displays can be positioned in landscape or portrait orientation.
Mounting and Compatibility
The low-profile top-mount C-clamp is designed for desk surfaces measuring 25–35 mm (1–1.4 inches) thick. The monitor mounts support standard VESA 75 × 75 mm and 100 × 100 mm mounting patterns.
Key Features
- Supports two monitors on a single LX Dual Direct Arm
- Up to 22 lb (10 kg) total load capacity
- Supports 75 × 75 mm and 100 × 100 mm VESA patterns
- 13 inches (33 cm) of height adjustment
- Matte black finish with low-profile desk clamp
Applications
The 45-627-224 is suitable for dual-monitor office workstations and desktop environments where two displays need adjustable positioning while preserving desk space.
DC Supplies Product Note
The exact MPN 45-627-224 identifies the matte black LX Desk Dual Direct Arm with a low-profile top-mount C-clamp. Verify both monitor weights, VESA patterns, and desk thickness before installation.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Part Number / MPN | 45-627-224 |
| Product Type | Dual Monitor Arm |
| Product Series | LX |
| Product Name | LX Desk Dual Direct Arm |
| Color | Matte Black |
| Number of Displays | 2 |
| Individual Monitor Load | 2–11 lb (0.9–5 kg) |
| Total Load Capacity | 4–22 lb (1.8–10 kg) |
| Recommended Screen Size | Up to 25 inches; some displays up to 27 inches depending on width and thickness |
| VESA Mounting Pattern | 75 × 75 mm / 100 × 100 mm |
| Height Adjustment | Up to 13 inches (33 cm) |
| Tilt | 30° total range |
| Pan | 360° |
| Rotation | 360° |
| Desk Surface Thickness | 25–35 mm (1–1.4 in) |
| Mounting Method | Low-profile top-mount C-clamp |
| Display Orientation | Landscape / Portrait |
| Product Weight | Approximately 11.8 lb (5.4 kg) |
| Warranty | 10 years |
| UPC | 698833083538 |
FAQs
What is the Ergotron 45-627-224?
It is an LX Desk Dual Direct Arm in matte black designed to mount and position two monitors from a desk.
How many monitors can it support?
The arm supports two displays, with a combined maximum load of 22 lb (10 kg).
What monitor weights are supported?
Each monitor should weigh between 2 and 11 lb (0.9–5 kg), while the combined load must remain within the 22 lb system limit.
Which VESA patterns are supported?
The arm supports 75 × 75 mm and 100 × 100 mm VESA mounting patterns.
What desk thickness does the included clamp support?
The low-profile top-mount C-clamp is designed for desk surfaces measuring 25–35 mm thick.
What warranty is included?
Ergotron lists a 10-year limited warranty for the 45-627-224.
